WATER PUMP
RM80 1983 (D) USA (E03)

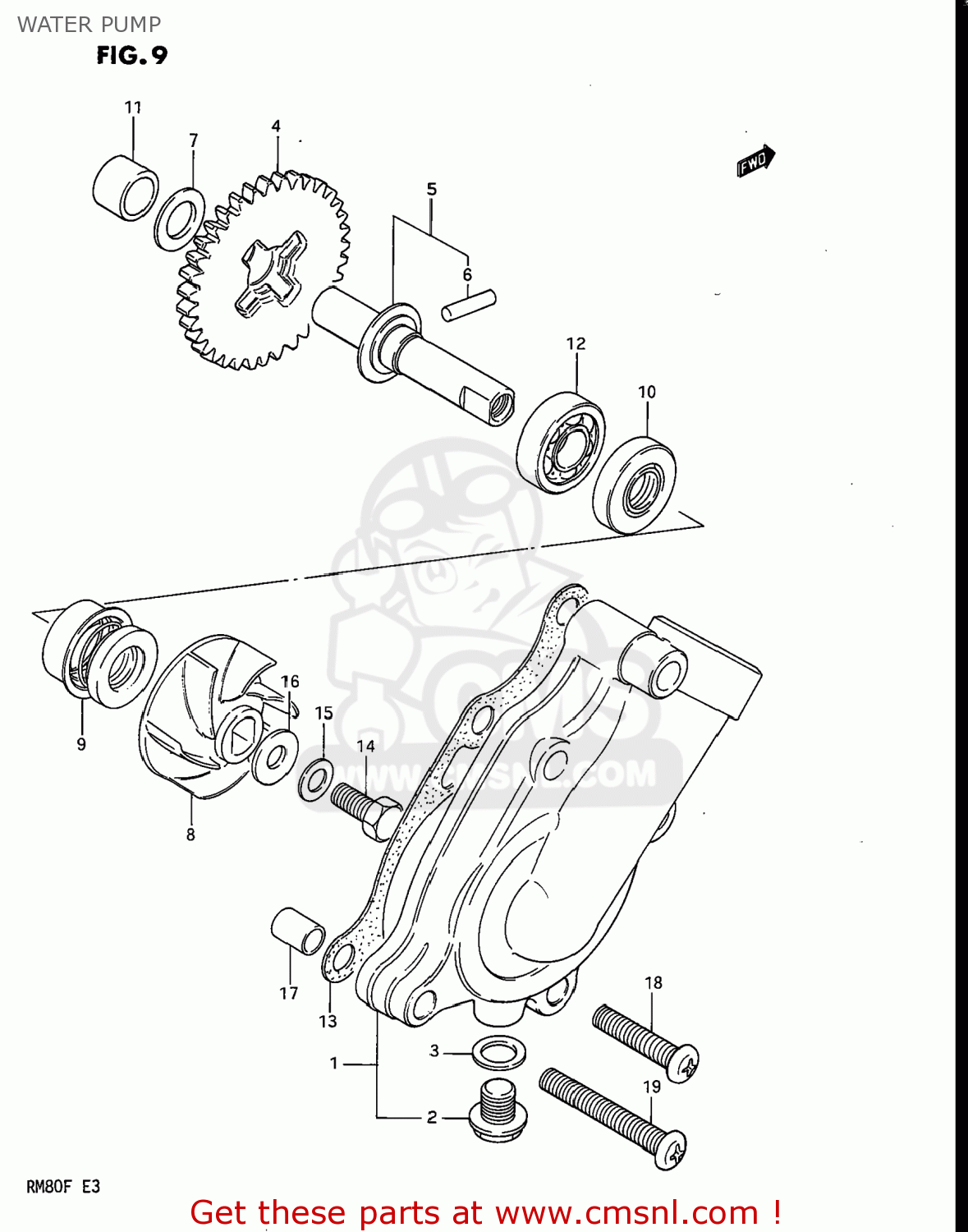

Water pump diagram RM80 1983 (D) USA (E03)
WATER PUMP RM80 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1741020901
ref: 1-1
17410-20910
CASE,WATER PUMP
€ 68.50
1-2
1741020910
ref: 1-2
CASE,WATER PUMP
€ 68.50
2
1741514300
ref: 2
BOLT,DRAIN
€ 2.00
3
1741314100
ref: 3
09168-08016
GASKET,DRAIN (NAS)
€ 1.00
4
1746120911
ref: 4
GEAR, DRIVEN (NT:35)
€ 27.50
5
1751020901
ref: 5
SHAFT,WATER PUMP
€ 54.00
6
0926104010
ref: 6
PIN (4X20.8)
€ 1.50
7
0821110181
ref: 7
09181-10167
WASHER,THRUST
€ 3.00
8
1749120900
ref: 8
IMPELLER,WATER PUMP
€ 19.50
9
1747014100
ref: 9
17470-02F00
SEAL,WATER PUMP SHAFT
€ 21.50
10
0928310004
ref: 10
SEAL,OIL(10X21X5)
€ 4.50
11
0930410005
ref: 11
BUSH
€ 6.00
12
0926212003
ref: 12
08113-69010
BEARING
€ 19.00
13
1743120903
ref: 13
17431-20903-H17
GASKET,WATER PUMP CASE (MCA)
€ 11.50
14
0910006099
ref: 14
BOLT(6X13)
€ 2.00
15
0916406006
ref: 15
WASHER
€ 2.50
16
0916806016
ref: 16
09168-06025
GASKET (NAS)
€ 3.00
17
0421109129
ref: 17
PIN
€ 2.00
18
0211206255
ref: 18
02112-0625A
SCREW
€ 1.50
19
0211206355
ref: 19
02112-0635B
SCREW
€ 2.50
