FRONT FORK (MODEL E/F)
RM80 1983 (D) USA (E03)

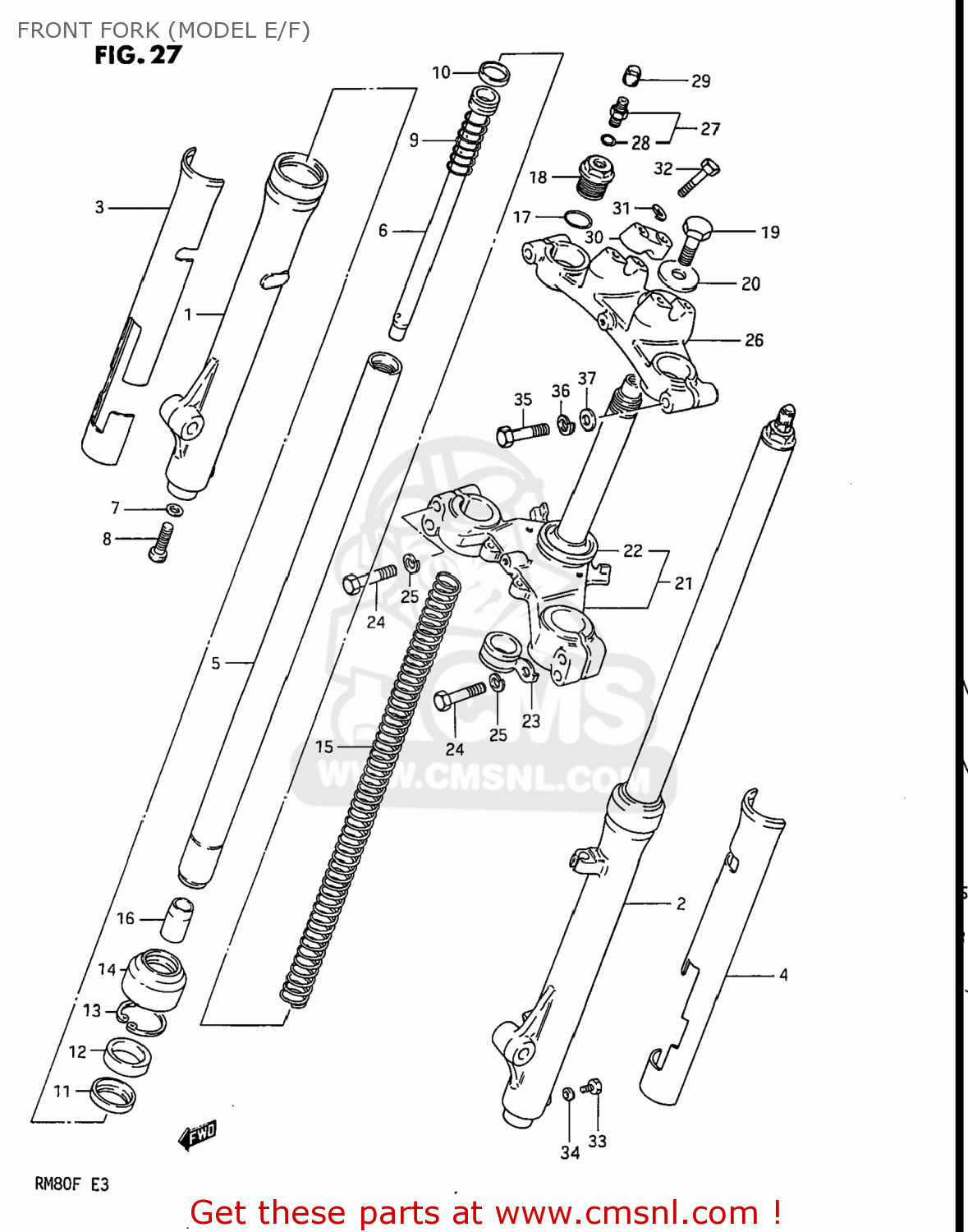

Front fork (model e/f) diagram RM80 1983 (D) USA (E03)
FRONT FORK (MODEL E/F) RM80 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110020920
ref:
DAMPER SET
€ 0.00
1
5113020920
ref: 1
TUBE,OUTER,RIGHT
€ 189.00
2
5114020920
ref: 2
TUBE,OUTER,LEFT
€ 189.00
3
5120120920163
ref: 3
PROTECTOR,FRONT FORK,RIGHT
€ 39.00
4
5120220920163
ref: 4
PROTECTOR,FRONT FORK,LEFT
€ 41.50
5
5111020900
ref: 5
TUBE,INNER
€ 138.50
6
5114620900
ref: 6
CYLINDER,FRONT FORK
€ 0.00
7
5114831030
ref: 7
51148-36011
GASKET (NAS)
€ 4.00
8
5114748130
ref: 8
BOLT(8X27)
€ 3.50
9
5117736030
ref: 9
SPRING,REBOUND
€ 4.50
10
5119633130
ref: 10
RING,PISTON
€ 7.50
11
5116820900
ref: 11
SPACER,FORK OIL SEAL
€ 4.50
12
5115348420
ref: 12
SEAL,OIL
€ 11.00
13
5115620400
ref: 13
CIRCLIP,FORK OIL SEAL
€ 0.00
14
5117320400
ref: 14
SEAL,DUST
€ 9.00
15
5117120920
ref: 15
SPRING,FRONT FORK
€ 17.50
16
5119548000
ref: 16
PIECE,OIL LOCK
€ 8.50
17
5118125030
ref: 17
O RING
€ 3.00
18
5135120400
ref: 18
BOLT,FORK INNER TUBE
€ 51.00
19
5135248000
ref: 19
51352-13600
BOLT,STEERING STEM HEAD
€ 12.50
20
5135620920
ref: 20
WASHER,STEERING STEM
€ 0.00
21
5141020920126
ref: 21
STEM,STEERING
€ 141.00
21
5141020920126
ref: 21
STEM,STEERING
€ 141.00
22
5162133001
ref: 22
RACE,STEERING OUTER LWR
€ 10.00
23
5145520400
ref: 23
GUIDE,CABLE
€ 16.00
24
5145120920
ref: 24
BOLT,FORK INNER TUBE F
€ 0.00
25
0832121088
ref: 25
08321-01087
LOCK WASHER
€ 2.00
26
5131120920
ref: 26
HEAD,STEERING STEM
€ 0.00
27
5129345440
ref: 27
VALVE,AIR
€ 17.00
28
5111745400
ref: 28
09280-06005
O-RING (D:3.8 ID:19)
€ 2.50
29
5129420400
ref: 29
CAP
€ 3.50
30
5621127100
ref: 30
HOLDER,HANDLEBAR
€ 12.50
31
0832121088
ref: 31
08321-01087
LOCK WASHER
€ 2.00
32
0110708358
ref: 32
01500-0835B
BOLT
€ 3.50
33
0110706088
ref: 33
09100-06157
BOLT
€ 2.50
34
5118331030
ref: 34
GASKET,DRAIN,PLUG (NAS)
€ 4.00
35
0110708408
ref: 35
01500-0840A
BOLT 8X40
€ 3.00
36
0832121088
ref: 36
08321-01087
LOCK WASHER
€ 2.00
37
0832221088
ref: 37
08322-01087
WASHER
€ 2.00
