CYLINDER
RM80 1983 (D) USA (E03)

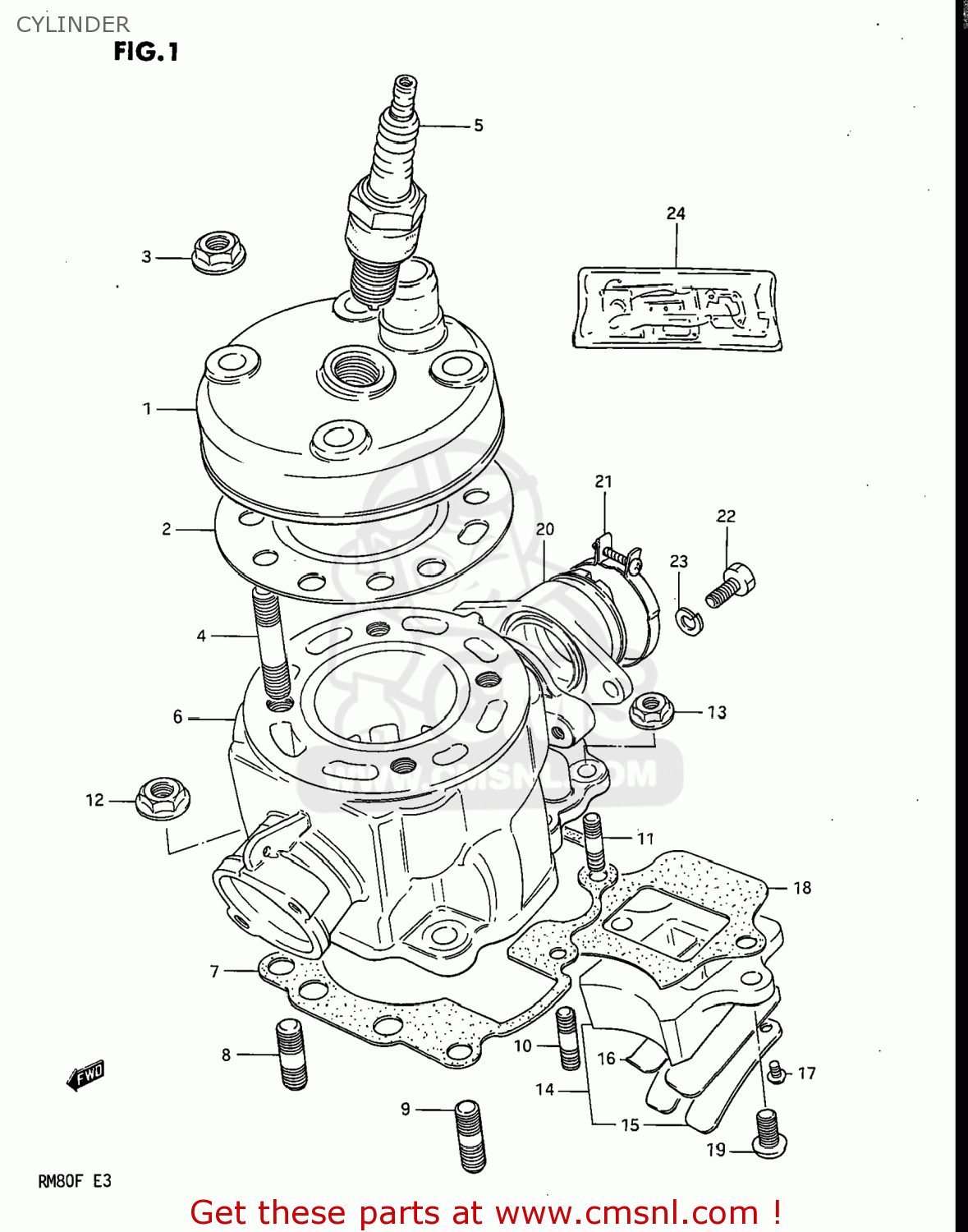

Cylinder diagram RM80 1983 (D) USA (E03)
CYLINDER RM80 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1111120902
ref: 1-1
HEAD,CYLINDER
€ 138.50
1-2
1111120910
ref: 1-2
11111-20902
HEAD,CYLINDER
€ 138.50
2-1
1114120900
ref: 2-1
11141-20931-H17
GASKET,CYLINDER HEAD (MCA)
€ 15.00
2-2
1114120930
ref: 2-2
11141-20931-H17
GASKET,CYLINDER HEAD
€ 15.00
3
0831616085
ref: 3
08316-1008B
NUT 8MM
€ 3.00
4
0910808102
ref: 4
BOLT,STUD
€ 4.00
5-1
0948200232
ref: 5-1
09482-00351
SPARK PLUG
€ 2.50
5-2
0948200160
ref: 5-2
SPARK PLUG W27ES
€ 9.00
6-1
1121020902
ref: 6-1
11210-20931
CYLINDER
€ 213.00
6-2
1121020931
ref: 6-2
CYLINDER
€ 213.00
6-3
1121020950
ref: 6-3
CYLINDER
€ 165.50
7
1124120900
ref: 7
11241-20900-H17
GASKET,CYLINDER (MCA)
€ 12.50
8
0910808106
ref: 8
BOLT,STUD(8X20)
€ 3.00
9
0142108205
ref: 9
01421-0820A
STUD BOLT
€ 2.00
10
0142106205
ref: 10
01421-0620A
STUD BOLT L:20
€ 2.50
11
0142106165
ref: 11
01421-0616A
STUD 6X16
€ 2.00
12
0831616085
ref: 12
08316-1008B
NUT 8MM
€ 3.00
13
0831616064
ref: 13
08316-1006B
NUT 6MM
€ 2.50
14
1315046011
ref: 14
VALVE ASSY,REED
€ 72.00
15
1315223011
ref: 15
STOPPER,REED VALVE
€ 4.50
16
1315327110
ref: 16
VALVE,REED
€ 8.50
17
1315419011
ref: 17
02112-0308A
SCREW,REED VALVE
€ 1.50
18
1315646001
ref: 18
13156-46001-H17
GASKET,REED VALVE (MCA)
€ 2.50
19
0211206168
ref: 19
02112-06167
SCREW
€ 2.50
20
1311020400
ref: 20
PIPE,INTAKE
€ 32.50
21
0940242306
ref: 21
09402-42303
CLAMP
€ 4.50
22
0110706208
ref: 22
01500-06207
BOLT
€ 2.00
23
0832121068
ref: 23
08321-01067
LOCK WASHER
€ 2.50
24-1
1140020860
ref: 24-1
11400-20872
GASKET SET (MCA)
€ 72.50
24-2
1140020870
ref: 24-2
11400-20872
GASKET SET (MCA)
€ 72.50
24-2
1140020870
ref: 24-2
11400-20872
GASKET SET (MCA)
€ 72.50
