FRONT FORK (MODEL D)
RM80 1983 (D) USA (E03)

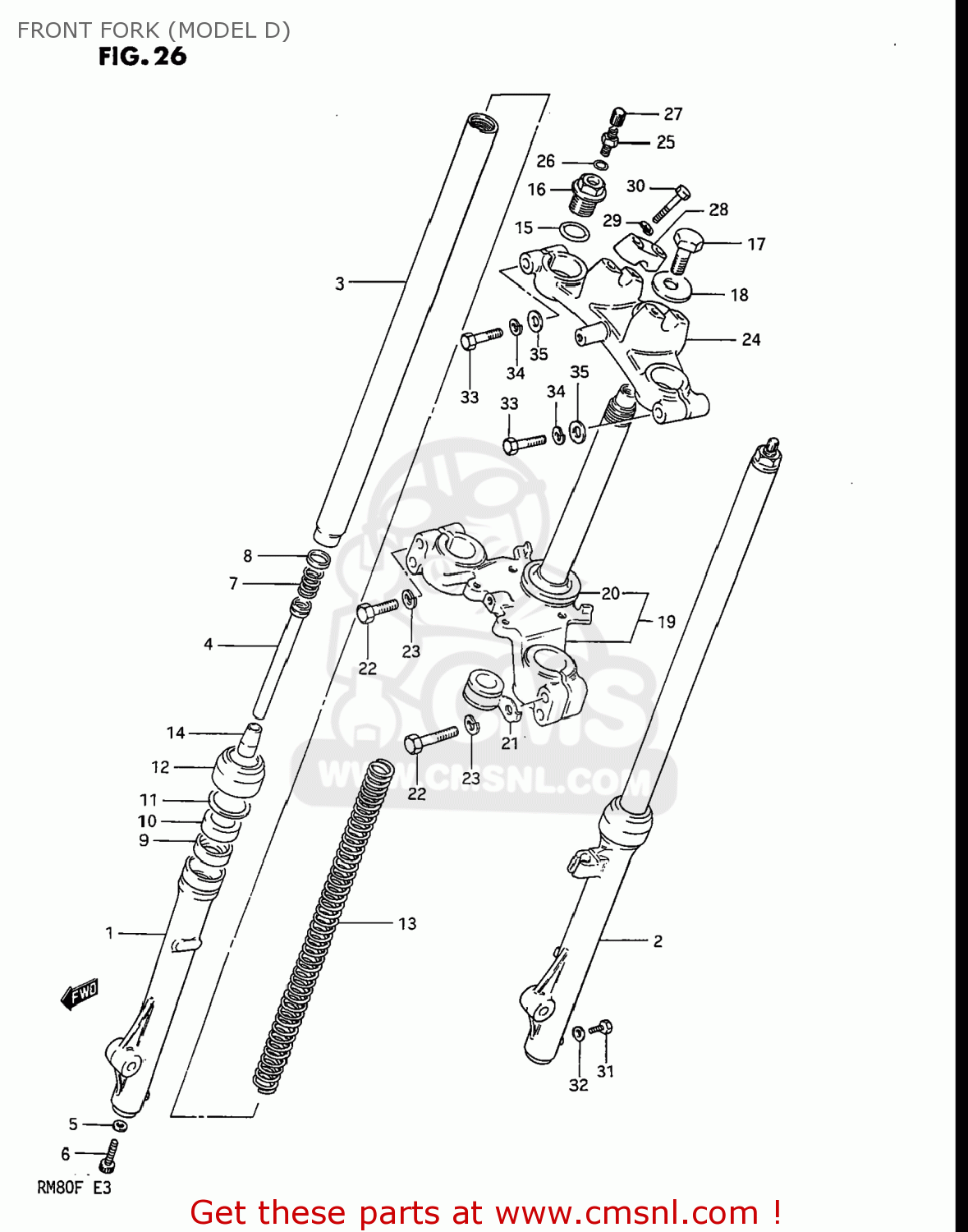

Front fork (model d) diagram RM80 1983 (D) USA (E03)
FRONT FORK (MODEL D) RM80 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110020900163
ref:
DAMPER SET
€ 0.00
1
5113020900163
ref: 1
TUBE,OUTER,RIGHT
€ 147.00
2
5114020900163
ref: 2
TUBE,OUTER,LEFT
€ 128.00
3
5111020900
ref: 3
TUBE,INNER
€ 138.50
4
5114620900
ref: 4
CYLINDER,FRONT FORK
€ 0.00
5
5114831030
ref: 5
51148-36011
GASKET (NAS)
€ 4.00
6
5114748130
ref: 6
BOLT(8X27)
€ 3.50
7
5117736030
ref: 7
SPRING,REBOUND
€ 4.50
8
5119633130
ref: 8
RING,PISTON
€ 7.50
9
5116820900
ref: 9
SPACER,FORK OIL SEAL
€ 4.50
10
5115348420
ref: 10
SEAL,OIL
€ 11.00
11
5115620400
ref: 11
CIRCLIP,FORK OIL SEAL
€ 0.00
12
5117320400
ref: 12
SEAL,DUST
€ 9.00
13
5117120900
ref: 13
51171-20920
SPRING,FRONT FORK
€ 17.50
14
5119548000
ref: 14
PIECE,OIL LOCK
€ 8.50
15
5118125030
ref: 15
O RING
€ 3.00
16
5135120900
ref: 16
BOLT,FORK INNER TUBE
€ 31.00
17
5135220900
ref: 17
BOLT,STEERING STEM HEAD
€ 0.00
18
5135620900
ref: 18
51356-46030
WASHER
€ 5.00
19
5141020900291
ref: 19
51410-20920-126
STEM,STEERING
€ 141.00
20
5162133001
ref: 20
RACE,STEERING OUTER LWR
€ 10.00
21
5145520900
ref: 21
GUIDE,CABLE
€ 16.00
22
5145120900
ref: 22
BOLT,FORK INNER TUBE F
€ 0.00
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
23
0832121088
ref: 23
08321-01087
LOCK WASHER
€ 2.00
24
5131120900291
ref: 24
STEM HEAD,STEERING
€ 80.00
25
5129345440
ref: 25
VALVE,AIR
€ 17.00
26
5111745400
ref: 26
09280-06005
O-RING (D:3.8 ID:19)
€ 2.50
27
5129420400
ref: 27
CAP
€ 3.50
28
5621148000291
ref: 28
56211-46680-291
HOLDER,HANDLEBAR
€ 8.50
29
0832121088
ref: 29
08321-01087
LOCK WASHER
€ 2.00
30
0110708358
ref: 30
01500-0835B
BOLT
€ 3.50
31
0110706088
ref: 31
09100-06157
BOLT
€ 2.50
32
5118331030
ref: 32
GASKET,DRAIN,PLUG (NAS)
€ 4.00
33
0110708408
ref: 33
01500-0840A
BOLT 8X40
€ 3.00
34
0832121088
ref: 34
08321-01087
LOCK WASHER
€ 2.00
35
0832221088
ref: 35
08322-01087
WASHER
€ 2.00
35
0832221088
ref: 35
08322-01087
WASHER
€ 2.00
