CRANKCASE COVER- WATER PUMP (MODEL K/L/M/N/P/R/S)

RM80 1991 (M) USA (E03)

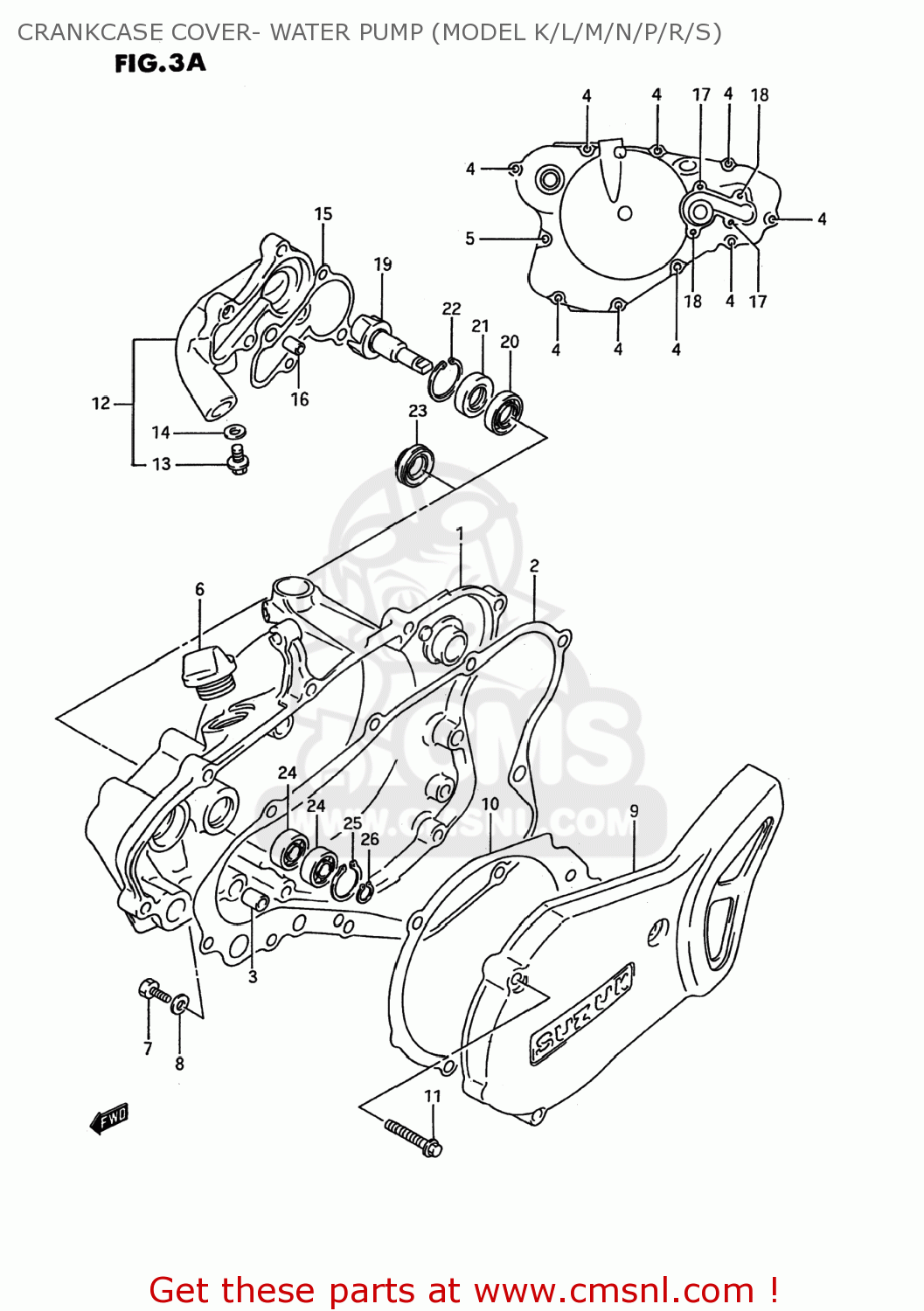

Crankcase cover- water pump (model k/l/m/n/p/r/s) diagram RM80 1991 (M) USA (E03)

CRANKCASE COVER- WATER PUMP (MODEL K/L/M/N/P/R/S) RM80 1991 (M) USA (E03)
CRANKCASE COVER- WATER PUMP (MODEL K/L/M/N/P/R/S) RM80 1991 (M) USA (E03)
CRANKCASE COVER- WATER PUMP (MODEL K/L/M/N/P/R/S) RM80 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
1134102B40
ref: 1-1
11341-02B43
COVER,CLUTCH
€ 142.00
1-2
1134102B42
ref: 1-2
11341-02B43
COVER,CLUTCH
1134102B42
€ 142.00
2
1148227C00
ref: 2
11482-27C02
GASKET,CLUTCH COVER (NAS)
1148227C00
€ 12.00
3
0421109129
ref: 3
PIN
0421109129
€ 2.00
4-1
0154706257
ref: 4-1
BOLT
0154706257
€ 2.50
4-2
0154706253
ref: 4-2
01547-0625B
SCREW
0154706253
€ 2.50
5-1
0154706357
ref: 5-1
BOLT
0154706357
€ 2.50
5-2
0154706353
ref: 5-2
01547-0635B
BOLT
0154706353
€ 3.00
6
0920020810
ref: 6
PLUG SET
0920020810
€ 8.00
7
0912806004
ref: 7
09128-06044
SCREW(6X10)
0912806004
€ 1.50
8
0916806004
ref: 8
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
9-1
1135102B40
ref: 9-1
11351-02B41
COVER,MAGNETO
€ 60.00
9-2
1135102B41
ref: 9-2
COVER,MAGNETO
1135102B41
€ 60.00
10-1
1148302B01
ref: 10-1
11483-02B50
GASKET,MAGNETO COVER (NAS)
1148302B01
€ 5.00
10-2
1148302B50
ref: 10-2
GASKET,MAGNETO COVER (NAS)
1148302B50
€ 5.00
11-1
0154706257
ref: 11-1
BOLT
0154706257
€ 2.50
11-2
0154706253
ref: 11-2
01547-0625B
SCREW
0154706253
€ 2.50
12-1
1741002B42
ref: 12-1
17410-02B44
CASE,WATER PUMP
€ 59.00
12-2
1741002B43
ref: 12-2
17410-02B44
CASE,WATER PUMP
1741002B43
€ 59.00
12-3
1741002B44
ref: 12-3
CASE,WATER PUMP
1741002B44
€ 59.00
13-1
1741500B00
ref: 13-1
17415-43D00
BOLT,BLEEDER
1741500B00
€ 3.00
13-2
1741543D00
ref: 13-2
BOLT
1741543D00
€ 3.00
14-1
1741300B00
ref: 14-1
17413-28C10
GASKET (NAS)
1741300B00
€ 1.50
14-2
1741328C10
ref: 14-2
WASHER
1741328C10
€ 1.50
15
1743102B41
ref: 15
17431-02B42
GASKET,WATER PUMP CASE (NAS)
1743102B41
€ 5.00
16-1
0421109109
ref: 16-1
PIN
0421109109
€ 2.00
16-2
0421109129
ref: 16-2
PIN
0421109129
€ 2.00
17-1
0154706207
ref: 17-1
BOLT
0154706207
€ 2.50
17-2
0154706203
ref: 17-2
01547-0620B
SCREW
0154706203
€ 2.50
18-1
0154706307
ref: 18-1
BOLT
0154706307
€ 2.50
18-2
0154706303
ref: 18-2
01547-0630B
BOLT,G/S SWITC
0154706303
€ 3.00
19
1749102B40
ref: 19
17491-02B41
IMPELLER,WATER PUMP
€ 17.50
20
0928212006
ref: 20
SEAL,OIL(12X24X3.6)
0928212006
€ 7.00
21
0928912004
ref: 21
SEAL,OIL(12X24X6.4)
0928912004
€ 9.00
22
0833141249
ref: 22
CIRCLIP
0833141249
€ 2.50
23
1746128C10
ref: 23
17461-03B00
SEAL,WATER PUMP OIL
1746128C10
€ 7.00
24
0811306980
ref: 24
BEARING
0811306980
€ 14.00
25
0938119003
ref: 25
CIRCLIP
0938119003
€ 2.00
26
0833131086
ref: 26
08331-3108A
CIRCLIP
0833131086
€ 2.00
