MUFFLER (MODEL G/H/J)
RM80 1991 (M) USA (E03)

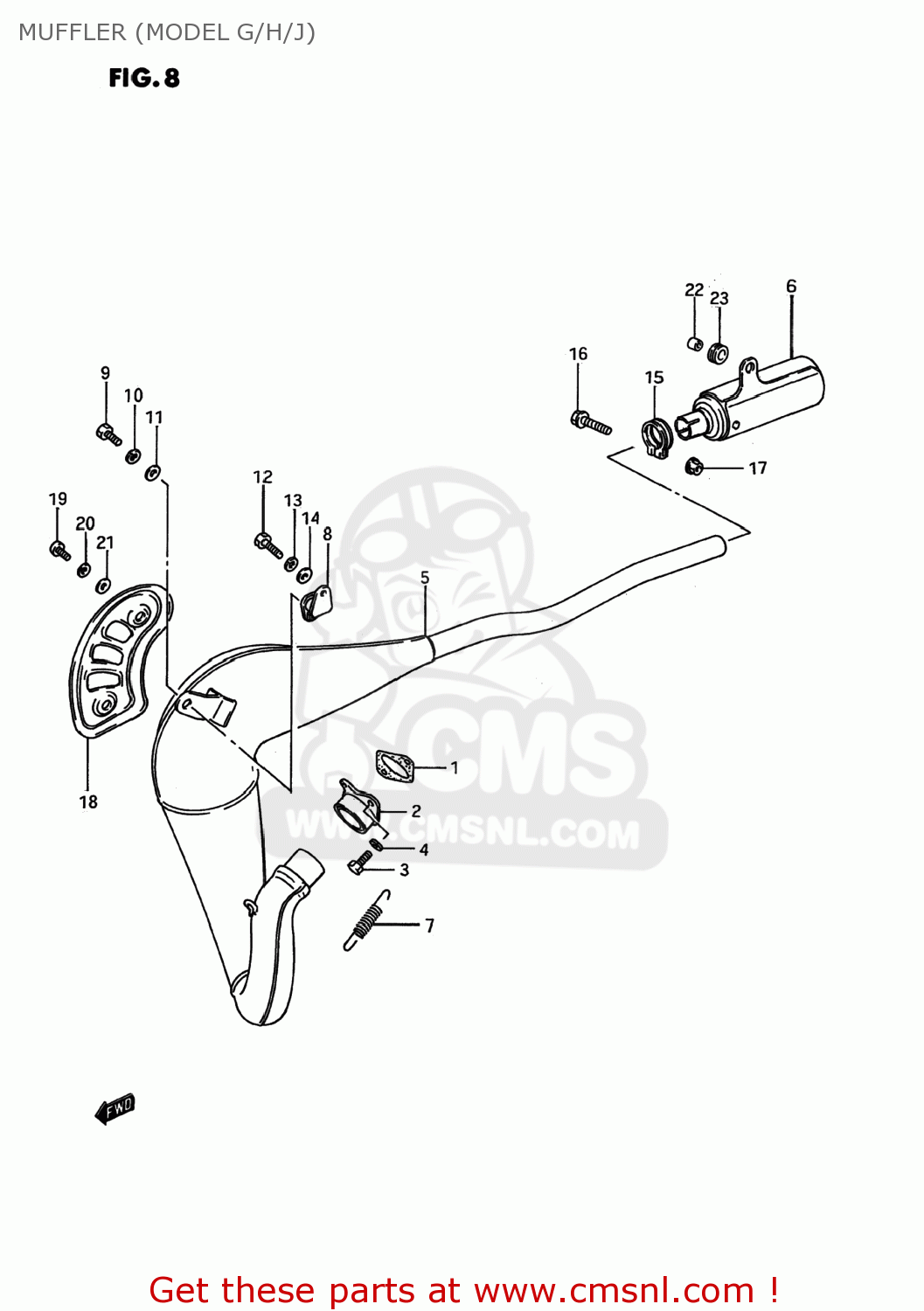

Muffler (model g/h/j) diagram RM80 1991 (M) USA (E03)
MUFFLER (MODEL G/H/J) RM80 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1418102B00H17
ref: 1
GASKET,EXHAUST FLANGE (NAS)
€ 6.00
2
1417002B10
ref: 2
FLANGE,EXHAUST PIPE
€ 52.50
3-1
0110706165
ref: 3-1
01500-0616A
BOLT 6X16
€ 2.00
3-2
0110706167
ref: 3-2
01500-06167
BOLT
€ 3.00
4-1
0832121064
ref: 4-1
08321-0106A
WASHER,LOCK
€ 2.00
4-2
0832121067
ref: 4-2
08321-01067
WASHER,LOCK
€ 2.50
5-1
1431002B12H01
ref: 5-1
14310-02B13-H01
BODY,MUFFLER
€ 275.00
5-2
1431002B13H01
ref: 5-2
BODY,MUFFLER
€ 275.00
6-1
1433002B15H01
ref: 6-1
14330-02B30
BODY,MUFFLER
€ 159.00
6-2
1433002B30H01
ref: 6-2
14330-02B30
BODY,MUFFLER,SECOND
€ 159.00
7
0944312033
ref: 7
SPRING
€ 21.00
8
1477020400
ref: 8
14770-20401
DAMPER,MUFFLER SUPPORT
€ 10.00
9
0110706125
ref: 9
01500-0612A
BOLT
€ 2.00
10
0832121064
ref: 10
08321-0106A
WASHER,LOCK
€ 2.00
11
0832221064
ref: 11
08322-0106B
WASHER
€ 2.00
12
0110706165
ref: 12
01500-0616A
BOLT 6X16
€ 2.00
13
0832121064
ref: 13
08321-0106A
WASHER,LOCK
€ 2.00
14
0832221064
ref: 14
08322-0106B
WASHER
€ 2.00
15
1477220401
ref: 15
CLAMP
€ 2.50
16
0151706257
ref: 16
01550-06257
BOLT 6X25
€ 2.50
17
0831626068
ref: 17
08316-2006A
NUT 6MM
€ 2.00
18
1478120910
ref: 18
COVER,MUFFLER
€ 16.50
19
0211206104
ref: 19
02112-0610B
SCREW
€ 1.50
20
0832121064
ref: 20
08321-0106A
WASHER,LOCK
€ 2.00
21
0832221064
ref: 21
08322-0106B
WASHER
€ 2.00
22
0918006152
ref: 22
09180-06262
SPACER
€ 3.00
23
0932008037
ref: 23
CUSHION
€ 4.00
