FRONT FORK (MODEL K)

RM80 1991 (M) USA (E03)

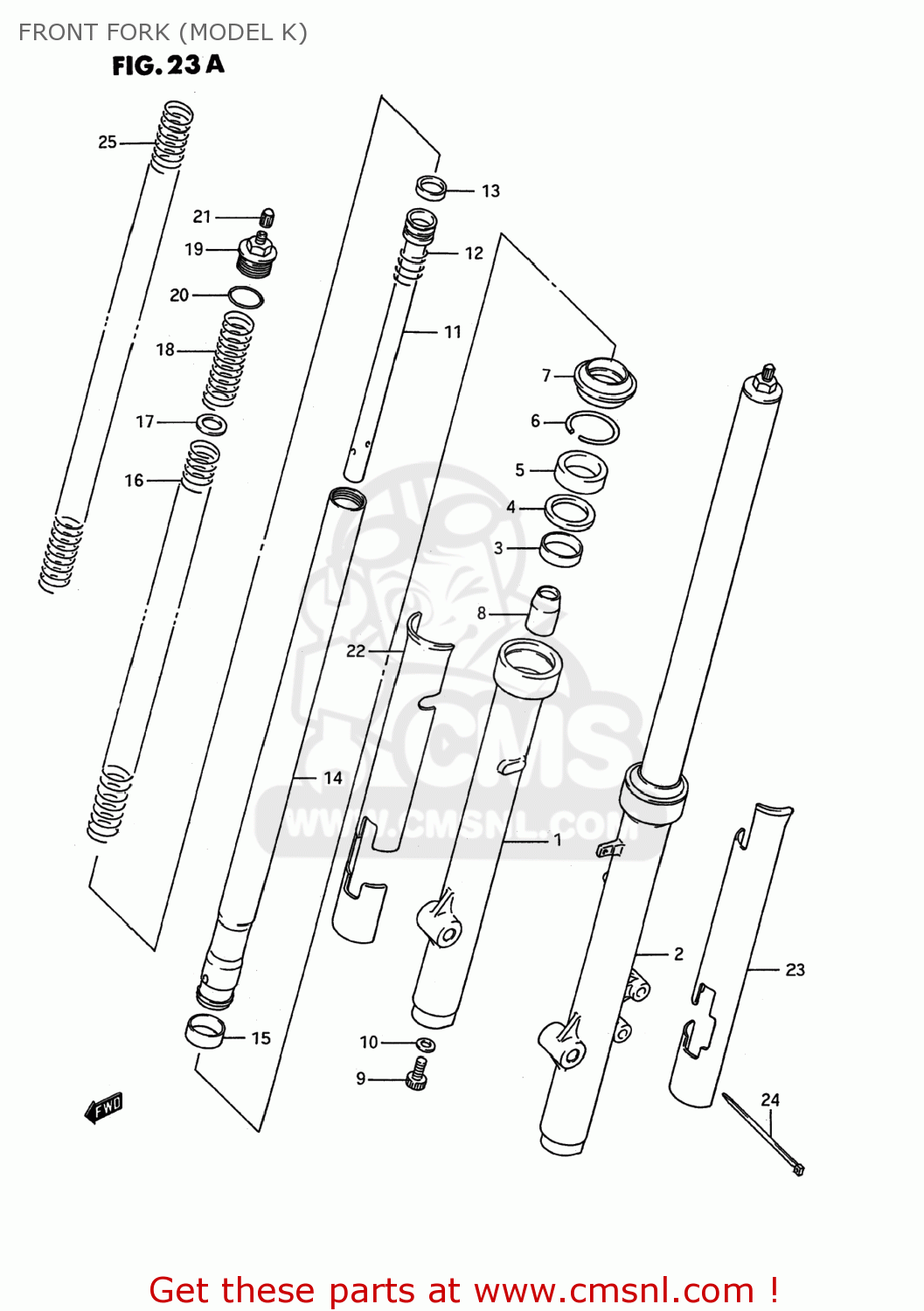

Front fork (model k) diagram RM80 1991 (M) USA (E03)

FRONT FORK (MODEL K) RM80 1991 (M) USA (E03)

FRONT FORK (MODEL K) RM80 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity



5110302B20
ref:

DAMPER ASSEMBLY,RIGHT

€ 0.00



5110402B20
ref:

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5113002B20
ref: 1

TUBE,OUTER,RIGHT

€ 0.00

2

5114002B20
ref: 2

TUBE,OUTER,LEFT

€ 0.00

3

5115245400
ref: 3

BUSH,GUIDE

€ 14.00

4

5116830B00
ref: 4

SPACER,SEAL

€ 5.00

5

5115334A00
ref: 5
51153-19D10

OIL SEAL,FRONT FORK 35X48X11

€ 14.00

6

5115601A00
ref: 6

RING,OIL SEAL STOPPER

€ 3.50

7

5157134A00
ref: 7
51571-03B20

SEAL,DUST

€ 22.00

8

5119502B20
ref: 8

PIECE,OIL LOCK

€ 0.00

9

5114702B01
ref: 9

BOLT,LWR

€ 20.50

10

5114802B00
ref: 10

GASKET,FORK CYLINDER (NAS)

€ 1.50

11

5119402B20
ref: 11

SEAT,UNDER

€ 0.00

12

5117702B20
ref: 12

SPRING,REBOUND

€ 5.00

13

5119638A00
ref: 13

RING,PISTON

€ 6.00

14

5111002B20
ref: 14

TUBE,FORK,INNER

€ 0.00

15

5112134A00
ref: 15

PISTON

€ 11.00

16

5117402B20
ref: 16

O-RING

€ 0.00

17

5117234370
ref: 17

GUIDE,SPRING

€ 3.50

18

5117102B20
ref: 18

SPRING,UPPER

€ 0.00

19

5135102B20
ref: 19

BOLT,FORK INNER TUBE

€ 31.50

20

5111702B20
ref: 20

O RING

€ 3.50

21

5129420400
ref: 21

CAP

€ 3.50

22

5120102B00
ref: 22

PROTECTOR,FR FORK,R

€ 42.50

23

5120202B00
ref: 23

PROTECTOR,FR FORK,L

€ 42.50

24

0940720401
ref: 24
09407-25402

CLAMP

€ 4.50

25

5117102B30
ref: 25

SPRING

€ 28.50
