REAR SHOCK ABSORBER (MODEL H/J)

RM80 1991 (M) USA (E03)

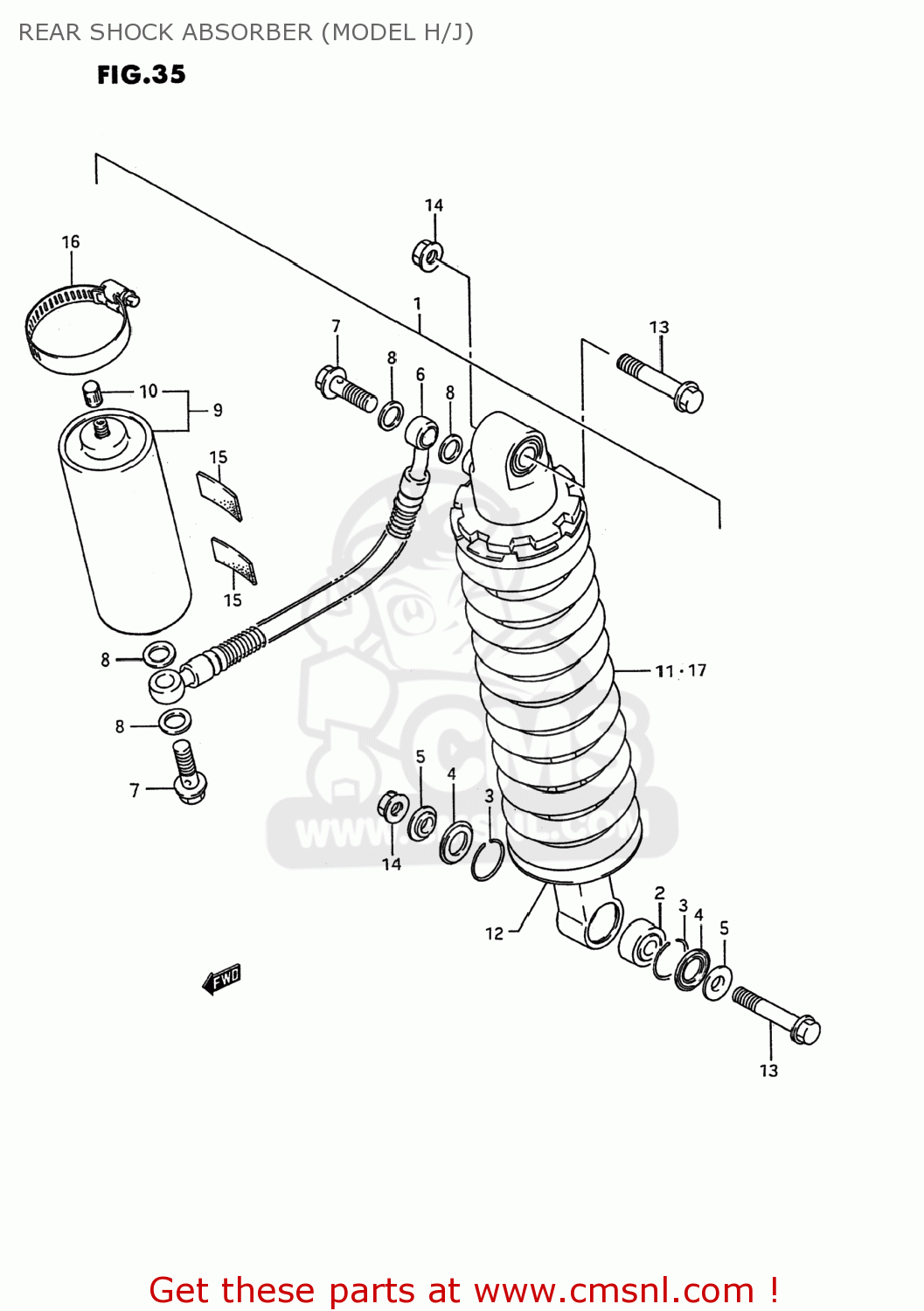

Rear shock absorber (model h/j) diagram RM80 1991 (M) USA (E03)

REAR SHOCK ABSORBER (MODEL H/J) RM80 1991 (M) USA (E03)

REAR SHOCK ABSORBER (MODEL H/J) RM80 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6210002B30163
ref: 1

ABSORBER ASSEMBLY,REAR SHOCK

€ 686.50

2

6217520920
ref: 2
62175-00B00

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227720900
ref: 3
62657-34A01

RING

€ 1.50

4

6222602B00
ref: 4

DUST SEAL,RR SHOCK

€ 8.00

5

6268431300
ref: 5

COLLAR

€ 8.00

6

6228002B00
ref: 6

HOSE

€ 52.00

7

6228120900
ref: 7

BOLT,REAR SHOCK ABSORBER

€ 0.00

8

0916110009
ref: 8

WASHER(10X15X1.5)

€ 2.00

9

6227002B00
ref: 9

RESERVE TANK,REAR SHOCK

€ 73.00

10

5129440400
ref: 10

CAP,VALVE AIR

€ 4.00

11

6221102B30
ref: 11

SPRING

€ 0.00

12

6224902B30
ref: 12

SEAT

€ 9.50

13

6264814500
ref: 13

BOLT,RR CUSHION ROD UPR

€ 3.00

14

0831931107
ref: 14

NUT

€ 3.00

15

6242302B00
ref: 15

CUSHION,REAR SHOCK ABSORBER

€ 3.00

16

0940270501
ref: 16
09402-70503

CLAMP

€ 10.50

17

6221102B35
ref: 17

SPRING (HARD)

€ 0.00
