REAR BRAKE (MODEL G/H/J/K)

RM80 1991 (M) USA (E03)

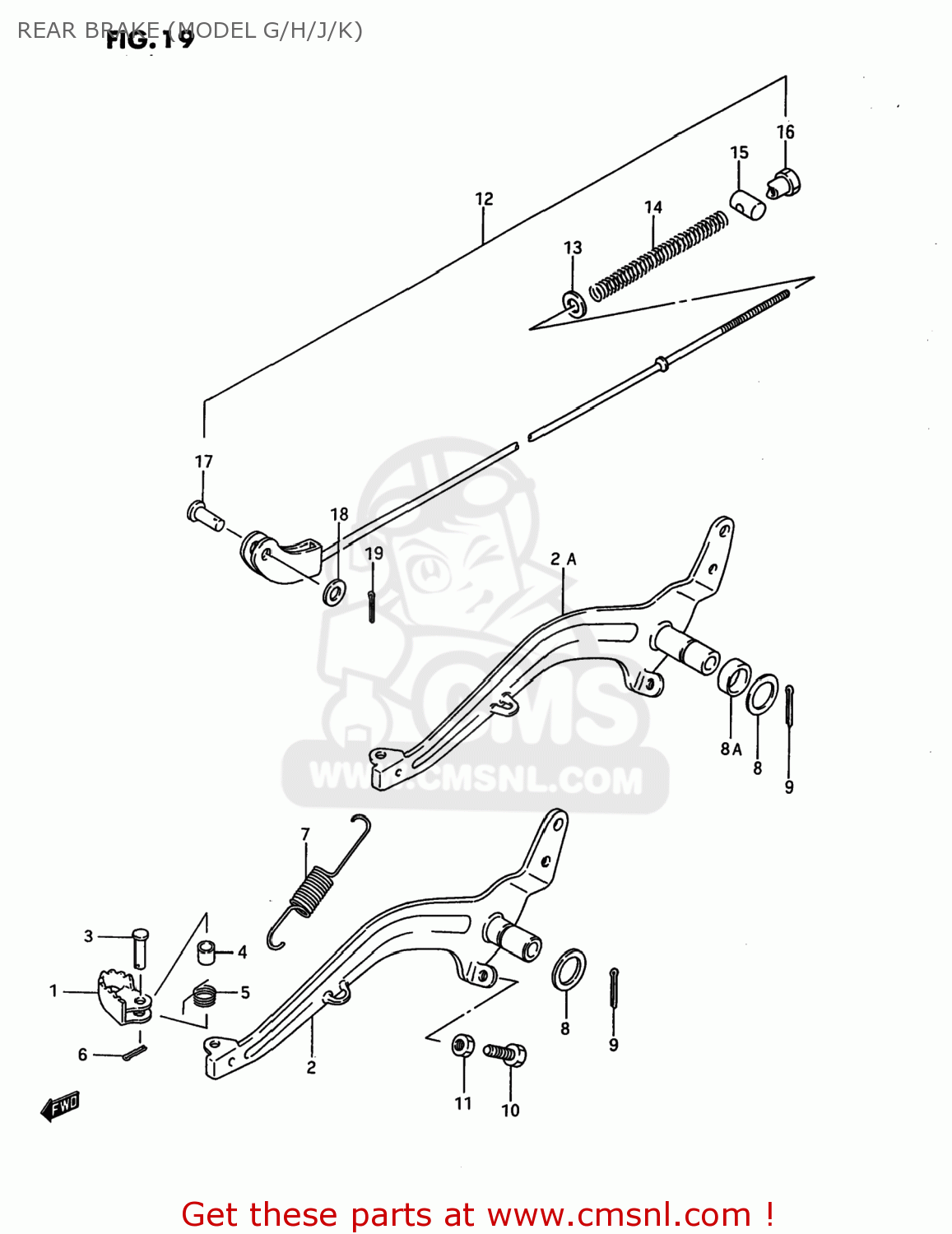

Rear brake (model g/h/j/k) diagram RM80 1991 (M) USA (E03)

REAR BRAKE (MODEL G/H/J/K) RM80 1991 (M) USA (E03)

REAR BRAKE (MODEL G/H/J/K) RM80 1991 (M) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4311014130
ref: 1-1

PEDAL,BRAKE

€ 6.00

1-2

4311001B10
ref: 1-2

PEDAL,BRAKE

€ 10.00

2A

4312002B20
ref: 2A

ARM, BRAKE PEDAL

€ 27.00

2-1

4312002B00
ref: 2-1
43120-02B11

ARM,BRAKE PEDAL

€ 39.00

2-2

4312002B11
ref: 2-2

ARM,BRAKE PEDAL

€ 39.00

3-1

0920006038
ref: 3-1

PIN

€ 2.00

3-2

0920006060
ref: 3-2

PIN

€ 5.50

4

0918006137
ref: 4

SPACER(9.2X9X6.5)

€ 2.50

5-1

0944411004
ref: 5-1
09444-11005

SPRING

€ 3.00

5-2

0944411005
ref: 5-2

SPRING

€ 3.00

6

0411120158
ref: 6
04111-2015A

PIN

€ 1.50

7-1

0944313015
ref: 7-1
09443-13024

SPRING

€ 6.00

7-2

0944313024
ref: 7-2

SPRING

€ 6.00

8

0916015002
ref: 8

WASHER(15.5X26X2.3)

€ 2.00

8A

0918015053
ref: 8A

SPACER

€ 0.00

9

0411125258
ref: 9
04111-2530A

COTTER PIN

€ 1.50

10

0912806028
ref: 10

SCREW(6X23)

€ 2.00

11

0831011067
ref: 11
08310-00067

NUT 6MM

€ 2.50

12

4330002B00
ref: 12

ROD ASSY,RR BRAKE

€ 19.50

13

0832221067
ref: 13
08322-01067

WASHER

€ 2.00

14

0944009004
ref: 14

SPRING

€ 2.00

15

0920911002
ref: 15

PIN(11X18)

€ 2.00

16

0915006009
ref: 16
09150-06010

NUT (6MM)

€ 3.50

17

0920006025
ref: 17

PIN

€ 3.50

18

0832221067
ref: 18
08322-01067

WASHER

€ 2.00

19

0411120208
ref: 19
04111-2020A

PIN 20X20

€ 1.50
