Buy Suzuki RM Parts Online


EXHAUST VALVE (MODEL K2/K3/K4)

RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

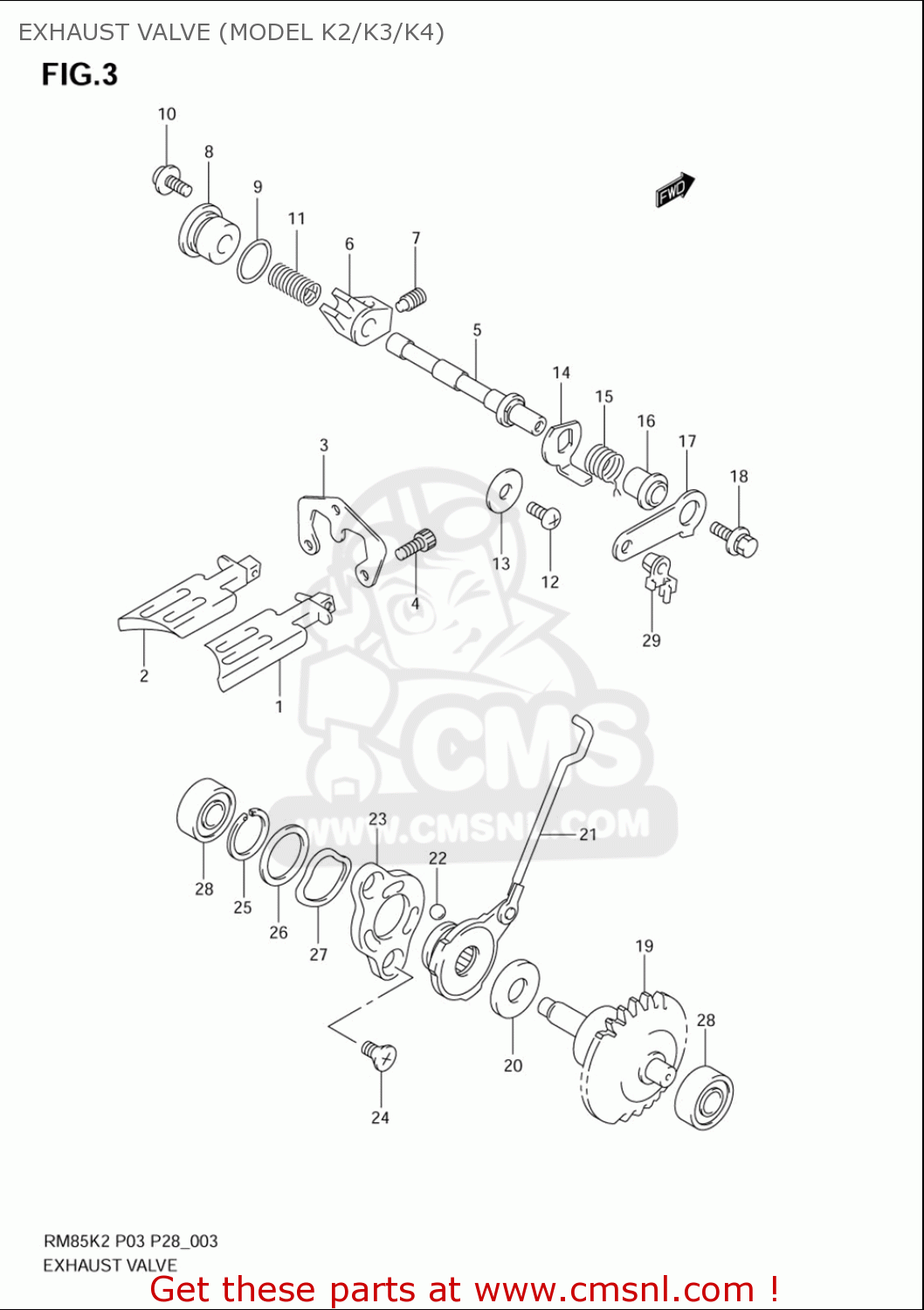

Exhaust valve (model k2/k3/k4) diagram RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

EXHAUST VALVE (MODEL K2/K3/K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
EXHAUST VALVE (MODEL K2/K3/K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
EXHAUST VALVE (MODEL K2/K3/K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1125003B00
ref: 1
VALVE,EXHAUST,R
€ 97.00
2
1125503B00
ref: 2
VALVE,EXHAUST,L
1125503B00
€ 96.50
3
1126103B00
ref: 3
PLATE,EXHAUST VALVE
1126103B00
€ 6.50
4
0713005123
ref: 4
BOLT
€ 2.50
5
1125902B40
ref: 5
SHAFT,EXHAUST VALVE
1125902B40
€ 47.50
6
1126400B24
ref: 6
ARM,EXHAUST VALVE SHAFT
1126400B24
€ 17.00
7
0913406013
ref: 7
SCREW(6X10)
0913406013
€ 4.50
8
1125802B40
ref: 8
CAP,EXHAUST VALVE
1125802B40
€ 48.50
9
0928015006
ref: 9
O RING(D:1.9,ID:14.5)
0928015006
€ 3.00
10-1
0216205103
ref: 10-1
BOLT
€ 2.00
10-2
0910305022
ref: 10-2
BOLT(5X10)
0910305022
€ 1.50
11
0944810004
ref: 11
SPRING
0944810004
€ 6.00
12
0211206083
ref: 12
SCREW
0211206083
€ 1.50
13
0821206201
ref: 13
WASHER
0821206201
€ 1.50
14
1126700B21
ref: 14
LEVER,EXHAUST VALVE NO.2
1126700B21
€ 5.50
15
0944415008
ref: 15
SPRING
0944415008
€ 6.00
16
1126801B01
ref: 16
SPACER,EXHAUST VALVE
1126801B01
€ 8.50
17
1126600B21
ref: 17
LEVER,EXHAUST VALVE NO.1
1126600B21
€ 3.50
18
0911805005
ref: 18
BOLT(5X12)
0911805005
€ 4.00
19
1267002B41
ref: 19
GOVERNOR ASSY,EXHAUST VALVE
1267002B41
€ 68.50
20
0926310002
ref: 20
BEARING(10X22X2.8)
0926310002
€ 8.50
21
1268003811
ref: 21
ACTUATOR,EXHAUST VALVE
€ 43.50
22
0611106003
ref: 22
BALL
0611106003
€ 1.50
23
1268201B02
ref: 23
STARTER,EXHAUST VALVE ACTUATOR
1268201B02
€ 26.50
24
0912005003
ref: 24
SCREW(5X10)
0912005003
€ 2.00
25
0938019003
ref: 25
CIRCLIP
0938019003
€ 2.50
26
0918119004
ref: 26
SHIM(19.1X25X0.3)
0918119004
€ 4.00
27
0916419001
ref: 27
WASHER
0916419001
€ 7.00
28
0926208005
ref: 28
BEARING(8X22X7)
0926208005
€ 12.50
29
1268601B00
ref: 29
BUSH,EXHAUST VALVE ROD NO.1
1268601B00
€ 2.00
