REAR WHEEL (RM85LK3)

RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

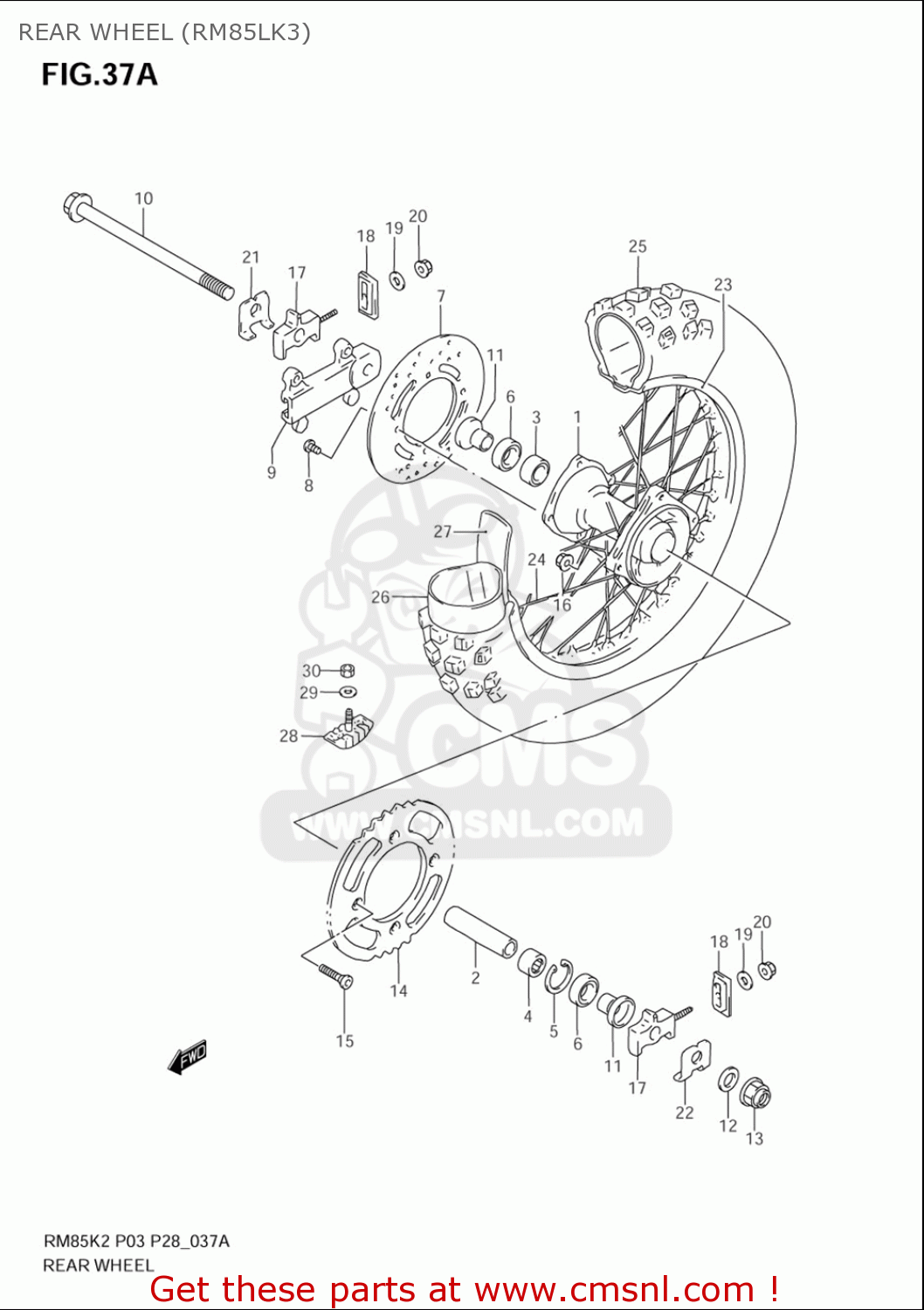

Rear wheel (rm85lk3) diagram RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

REAR WHEEL (RM85LK3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
REAR WHEEL (RM85LK3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
REAR WHEEL (RM85LK3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6411102B43
ref: 1
HUB,RR WHEEL
6411102B43
€ 175.00
2
6473102B40
ref: 2
SPACER,RR HUB BEARING
6473102B40
€ 10.50
3
0812360027
ref: 3
BEARING
0812360027
€ 16.00
4
0926215021
ref: 4
BEARING(15X35X11)
0926215021
€ 14.00
5
0833141356
ref: 5
CIRCLIP
0833141356
€ 2.00
6
0928320024
ref: 6
SEAL,OIL(20X35X7)
0928320024
€ 5.50
7
6921102B41
ref: 7
DISC,RR BRAKE
6921102B41
€ 147.00
8
021220612A
ref: 8
SCREW
021220612A
€ 3.00
9
6972102B42
ref: 9
BRACKET,RR AXLE
6972102B42
€ 92.00
10
6471103B00
ref: 10
AXLE,RR
€ 28.50
11
6474102B41
ref: 11
SPACER,RR AXLE
6474102B41
€ 47.00
12
0916014033
ref: 12
WASHER
€ 3.00
13
0915914019
ref: 13
NUT
0915914019
€ 8.50
14-1
6451103B00
ref: 14-1
SPROCKET,RR(47T)
6451103B00
€ 82.00
14-2
6451103B10
ref: 14-2
SPROCKET,RR(46T)
6451103B10
€ 82.00
14-3
6451103B20
ref: 14-3
SPROCKET,RR(48T)
6451103B20
€ 82.00
14-4
6451103B30
ref: 14-4
SPROCKET,RR(49T)
€ 82.00
15
0912008010
ref: 15
BOLT(8X30.5)
0912008010
€ 2.50
16
0915908067
ref: 16
NUT
0915908067
€ 5.50
17
6141002B02
ref: 17
ADJUSTER,CHAIN
6141002B02
€ 147.50
18
6142102B00
ref: 18
PLATE,CHAIN ADJUSTER
6142102B00
€ 7.00
19
083220106A
ref: 19
WASHER
083220106A
€ 2.00
20
0831921068
ref: 20
NUT 6MM
0831921068
€ 2.00
21
6471202B00
ref: 21
WASHER,CHAIN ADJUSTER RH
6471202B00
€ 2.50
22
6471302B00
ref: 22
WASHER,CHAIN ADJUSTER,L
6471302B00
€ 2.00
23
6531103B50
ref: 23
RIM,RR WHEEL(1.60X16)
6531103B50
€ 169.50
24
6532003B51
ref: 24
SPOKE ASSY,RR WHEEL
€ 36.50
25
6511003BA0
ref: 25
TIRE,RR(90/100 16 52M D737)
€ 119.00
26
6520003B90
ref: 26
TUBE ASSY,WHEEL INNER
€ 27.50
27
6526103B80
ref: 27
PROTECTOR, INNER TUBE
€ 5.50
28
6527043D00
ref: 28
STOPPER,BEAD(1.85)
6527043D00
€ 30.50
29
083220108A
ref: 29
WASHER
083220108A
€ 2.00
30
083100008A
ref: 30
NUT
083100008A
€ 2.00
