FUEL TANK (MODEL K3)

RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

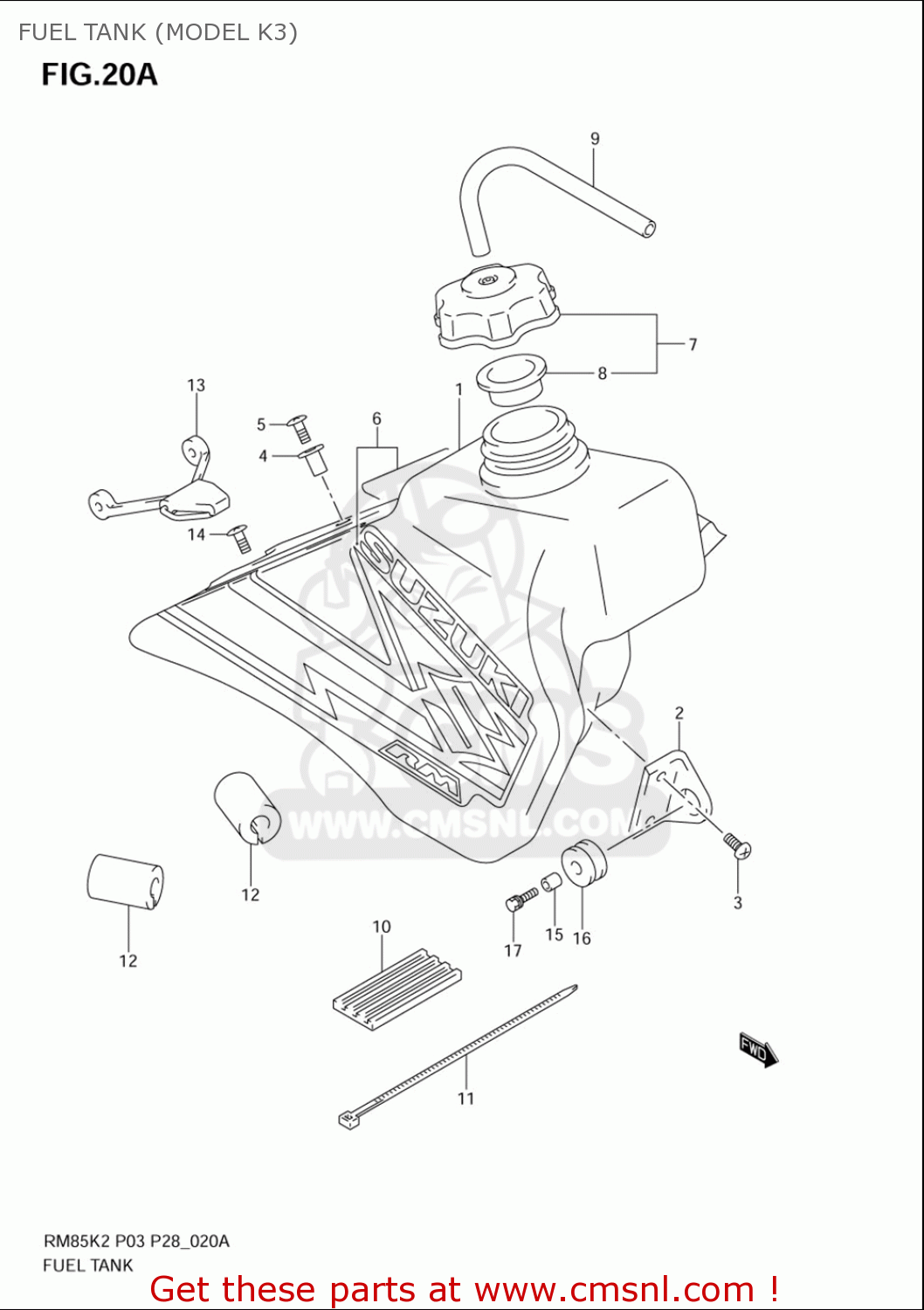

Fuel tank (model k3) diagram RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

FUEL TANK (MODEL K3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
FUEL TANK (MODEL K3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
FUEL TANK (MODEL K3) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4411003B00YU1
ref: 1
TANK,FUEL
€ 364.00
2
4413127C01
ref: 2
BRACKET,FUEL TANK FR
4413127C01
€ 6.50
3
021120612A
ref: 3
SCREW
021120612A
€ 1.50
4
4413227C01
ref: 4
HOOK,SEAT FR
4413227C01
€ 39.00
5
021420620A
ref: 5
SCREW
021420620A
€ 2.00
6
6811003BC0KD2
ref: 6
TAPE SET,FUEL TANK
€ 116.50
7
4420027870
ref: 7
CAP SET,FUEL TANK
4420027870
€ 19.50
8
4424827C00
ref: 8
GASKET,CAP (NAS)
4424827C00
€ 4.00
9
0935250823600
ref: 9
HOSE(5X8.2X600)
0935250823600
€ 13.00
10
4454114300
ref: 10
CUSHION,FUEL TANK UPR FR
4454114300
€ 4.50
11
0940725402
ref: 11
CLAMP(L:250)
0940725402
€ 4.50
12
4454217300
ref: 12
CUSHION,FUEL TANK UPR RR
4454217300
€ 5.00
13
4456026C00
ref: 13
BAND,FUEL TANK RR
4456026C00
€ 9.50
14
021420616A
ref: 14
SCREW
021420616A
€ 2.50
15
0918006268
ref: 15
SPACER(6.5X9X13.5)
0918006268
€ 2.00
16
1476201B01
ref: 16
CUSHION,MUFFLER
1476201B01
€ 3.00
17
0911806076
ref: 17
BOLT(6X25)
€ 2.00
