REAR SWINGING ARM (MODEL K4)

RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

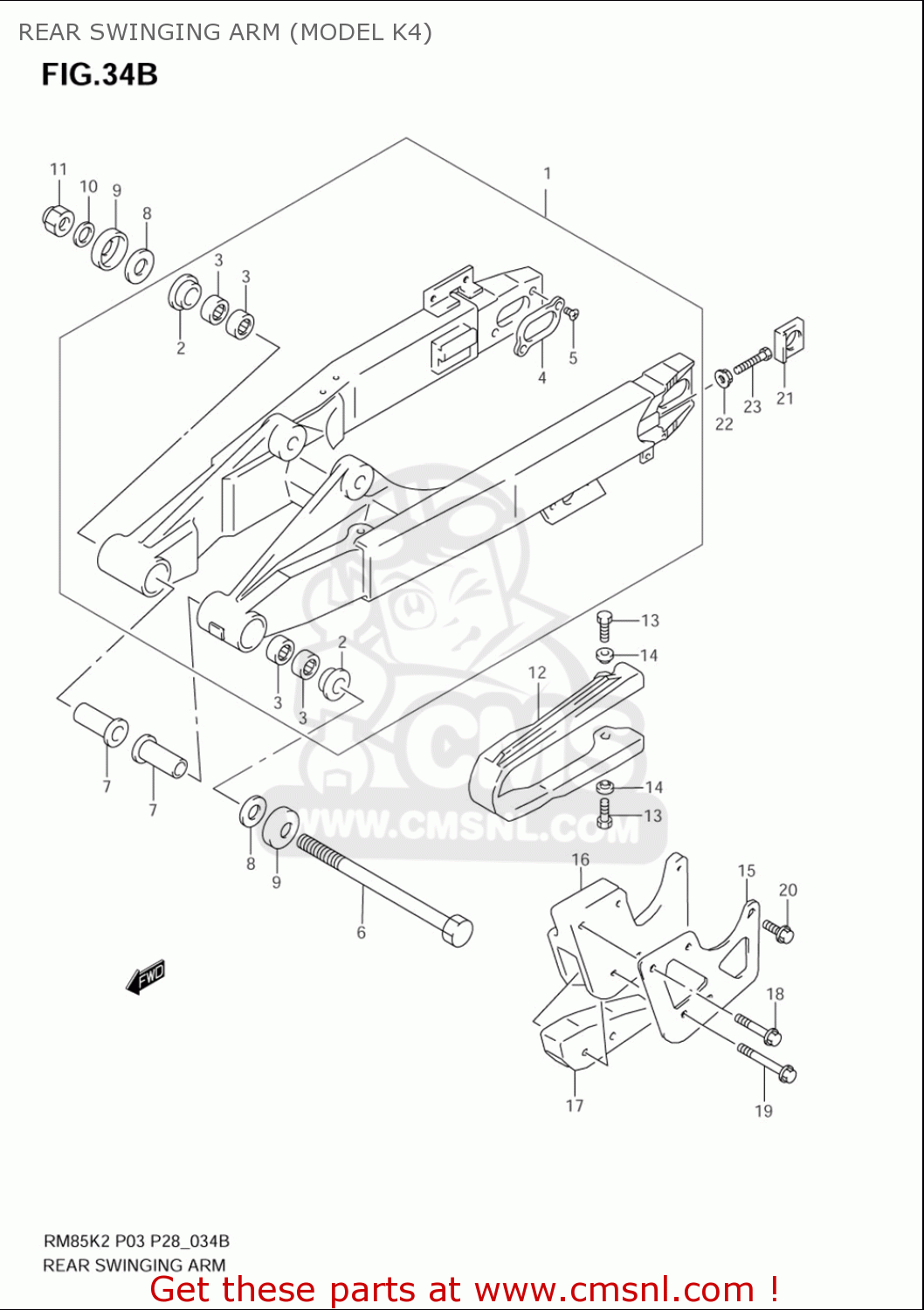

Rear swinging arm (model k4) diagram RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

REAR SWINGING ARM (MODEL K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
REAR SWINGING ARM (MODEL K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
REAR SWINGING ARM (MODEL K4) RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
6100003B90
ref: 1-1
SWINGINGARM AS
€ 899.00
1-2
6100003BA0
ref: 1-2
SWINGINGARM AS
€ 711.50
2
6126102B00
ref: 2
BUSHING,SWGARM PIVOT
6126102B00
€ 9.50
3
0926317039
ref: 3
BEARING(17X24X20)
0926317039
€ 18.00
4
6112803B70
ref: 4
PLATE,SWGARM RR
6112803B70
€ 14.50
5
021220410A
ref: 5
SCREW
021220410A
€ 2.50
6
6121102B40
ref: 6
SHAFT,RR SWINGINGARM PIVOT
6121102B40
€ 10.00
7
6125102B40
ref: 7
SPACER,RR SWGARM PIVOT
6125102B40
€ 14.00
8
0821112282
ref: 8
WASHER
0821112282
€ 2.00
9
6126203B00
ref: 9
COVER,SWGARM PIVOT
6126203B00
€ 5.00
10
0832201123
ref: 10
WASHER
€ 2.00
11
0831921128
ref: 11
NUT 12MM
0831921128
€ 4.00
12
6127302B20
ref: 12
BUFFER,CHAIN TOUCH DEFENSE
6127302B20
€ 24.50
13
0910306234
ref: 13
BOLT(6X16)
0910306234
€ 2.50
14
0916906057
ref: 14
WASHER
0916906057
€ 4.00
15
6134202B40
ref: 15
PLATE,GUIDE CHAIN OUTER
6134202B40
€ 15.00
16
6134302B40
ref: 16
GUIDE,CHAIN
6134302B40
€ 19.00
17
6134802B20
ref: 17
DEFENSE,CHAIN GUIDE
6134802B20
€ 11.00
18
0910306251
ref: 18
BOLT(6X30)
0910306251
€ 2.50
19
0910306241
ref: 19
BOLT(6X40)
0910306241
€ 2.50
20
0910306234
ref: 20
BOLT(6X16)
0910306234
€ 2.50
21
6144503B00
ref: 21
WASHER,CHAIN ADJUSTER
6144503B00
€ 18.50
22
0915908034
ref: 22
NUT
0915908034
€ 2.00
23
0910008301
ref: 23
BOLT(8X43)
0910008301
€ 2.50
