MAGNETO

RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

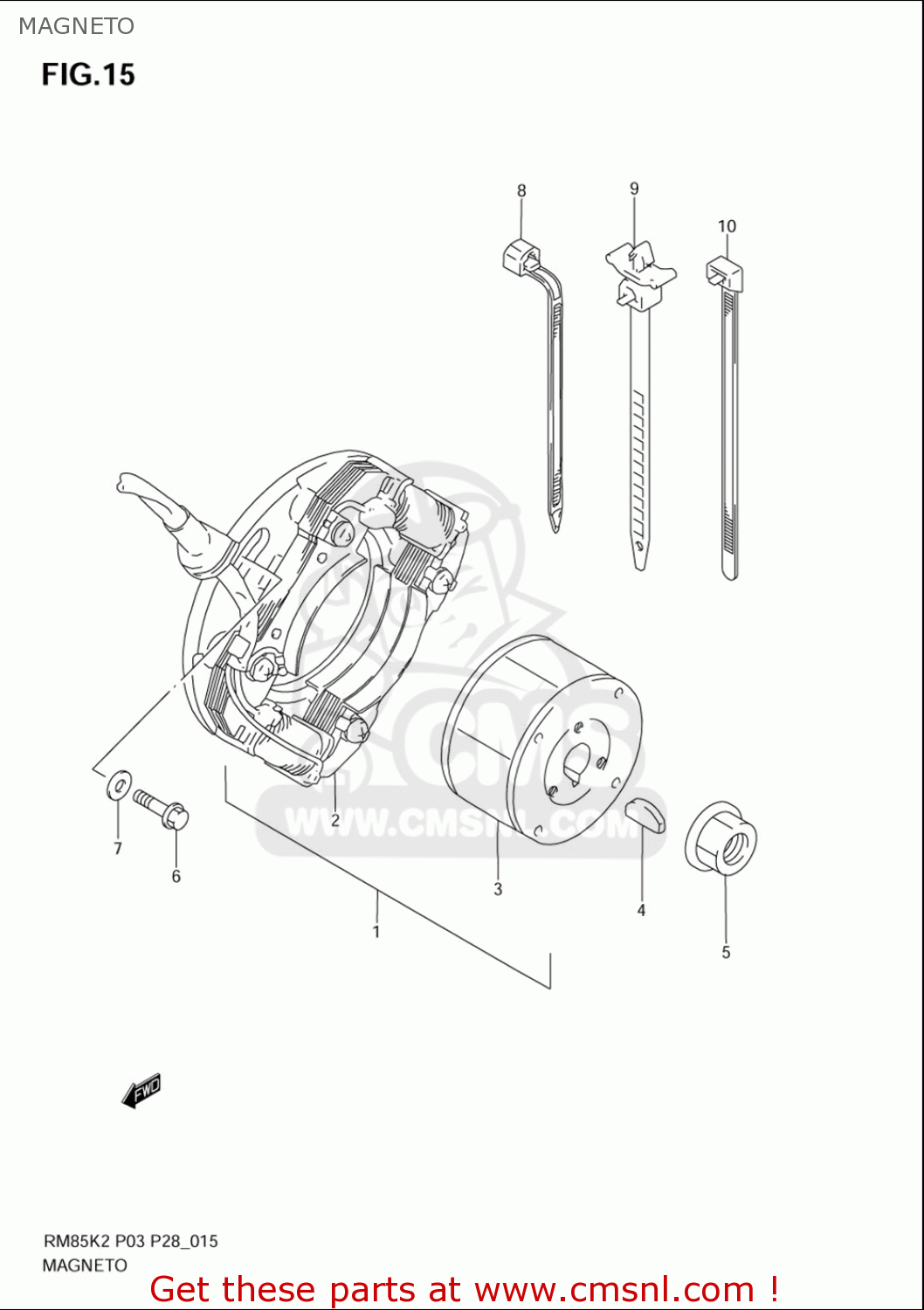

Magneto diagram RM85L 2002 2003 2004 2005 '06 (K2) (K3) (K4) (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

3210002B32
ref: 1

MAGNETO ASSY

€ 461.50

3210102B32
ref: 2

STARTER ASSY

€ 268.00

3210202B30
ref: 3

ROTOR

€ 253.50

0942004008
ref: 4

KEY

€ 3.50

083161010A
ref: 5

NUT

€ 2.00

0910306235
ref: 6

BOLT,6X20

€ 2.50

083220106A
ref: 7

WASHER

€ 2.00

8-1

0940714403
ref: 8-1

CLAMP(L:125)

€ 2.50

8-2

0940718402
ref: 8-2

CLAMP(L:165)

€ 2.50

0940717401
ref: 9

CLAMP

€ 5.00

0940715401
ref: 10

CLAMP(L:150)

€ 2.50
