AIR CLEANER
RMX250 1989 (K) USA (E03)

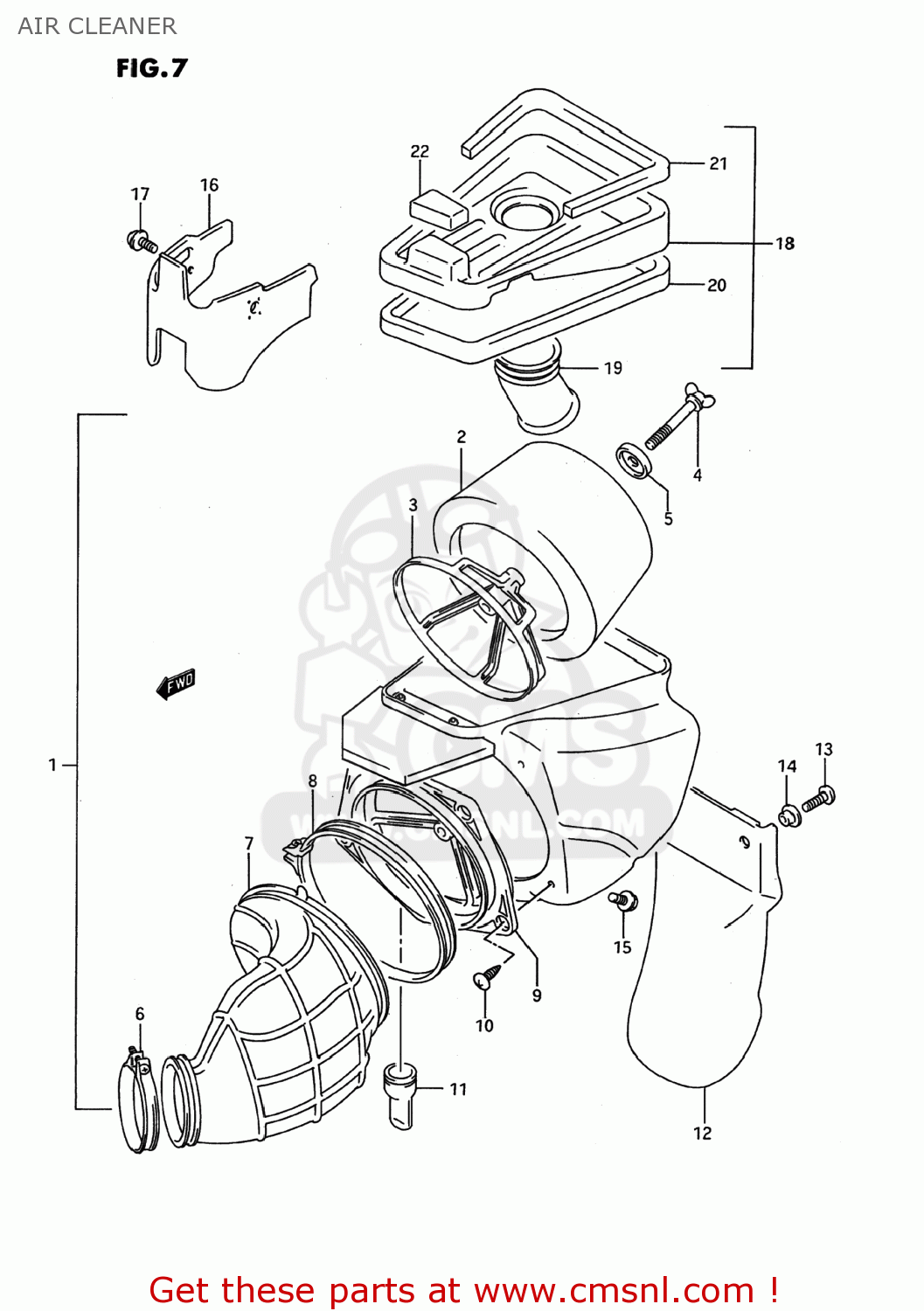

Air cleaner diagram RMX250 1989 (K) USA (E03)
AIR CLEANER RMX250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370005D00
ref: 1-1
13700-05D02
CLEANER ASSEMBLY,AIR
€ 0.00
1-2
1370005D01
ref: 1-2
13700-05D02
CLEANER ASSEMBLY,AIR
€ 0.00
1-3
1370005D02
ref: 1-3
CARBURETOR ASSEMBLY,AIR
€ 0.00
1-4
1370005D10
ref: 1-4
CLEANER ASSEMBLY,AIR
€ 142.50
2-1
1378000B20
ref: 2-1
13780-28C10
FILTER,AIR CLEANER
€ 48.50
2-2
1378028C10
ref: 2-2
FILTER
€ 48.50
3
1379100B20
ref: 3
HOLDER,FILTER
€ 18.50
4
1383102B00
ref: 4
BOLT,WING
€ 4.00
5
1379213A01
ref: 5
WASHER,AIR CLEANER
€ 3.00
6-1
0940270208
ref: 6-1
09402-70902
CLAMP
€ 6.00
6-2
0940268208
ref: 6-2
CLAMP
€ 6.00
7-1
1388128C00
ref: 7-1
13881-28C01
TUBE,AIR CLEANER OUTLET
€ 50.00
7-2
1388105D10
ref: 7-2
TUBE,OUTLET
€ 61.00
8-1
1382601B20
ref: 8-1
13826-43D00
CLAMP
€ 9.00
8-2
1382601B21
ref: 8-2
13826-43D00
CLAMP
€ 9.00
8-3
1382643D00
ref: 8-3
CLAMP
€ 9.00
9
1379005D00
ref: 9
BASE,FILTER
€ 26.50
10-1
0324205124
ref: 10-1
03241-0512A
SCREW
€ 1.50
10-2
0324205123
ref: 10-2
03241-0512A
SCREW
€ 1.50
11
1368119B00
ref: 11
CAP,DRAIN
€ 3.00
12-1
1373801B00
ref: 12-1
GUARD,MUD
€ 19.00
12-2
1373828E01
ref: 12-2
GUARD,MUD LWR
€ 19.00
13
0214206167
ref: 13
SCREW
€ 2.00
14
1383802B00
ref: 14
COLLAR
€ 2.50
15-1
0151706204
ref: 15-1
01550-0620A
BOLT 6X20
€ 2.50
15-2
0180006203
ref: 15-2
01500-0620A
BOLT
€ 2.00
15-3
0150006203
ref: 15-3
01500-0620A
BOLT
€ 2.00
16-1
1373905D00
ref: 16-1
13739-43D00
GUARD,MUD
€ 14.00
16-2
1373943D00
ref: 16-2
GUARD,MUD
€ 14.00
17
0913606004
ref: 17
SCREW(6X12)
€ 2.00
18-1
1374005D00
ref: 18-1
CAP COMP,AIR CLEANER
€ 58.00
18-2
1374005D10
ref: 18-2
CAP,AIR CLEANER
€ 41.50
19-1
1389138A50
ref: 19-1
TUBE,INLET
€ 16.00
19-2
1389134C00
ref: 19-2
TUBE,INLET
€ 0.00
20
1374605D00
ref: 20
GASKET,CAP (NAS)
€ 0.00
21
1373605D00
ref: 21
CUSHION
€ 0.00
22
1373705D00
ref: 22
CUSHION
€ 8.50
