CLUTCH (MODEL K/L/M)

RMX250 1989 (K) USA (E03)

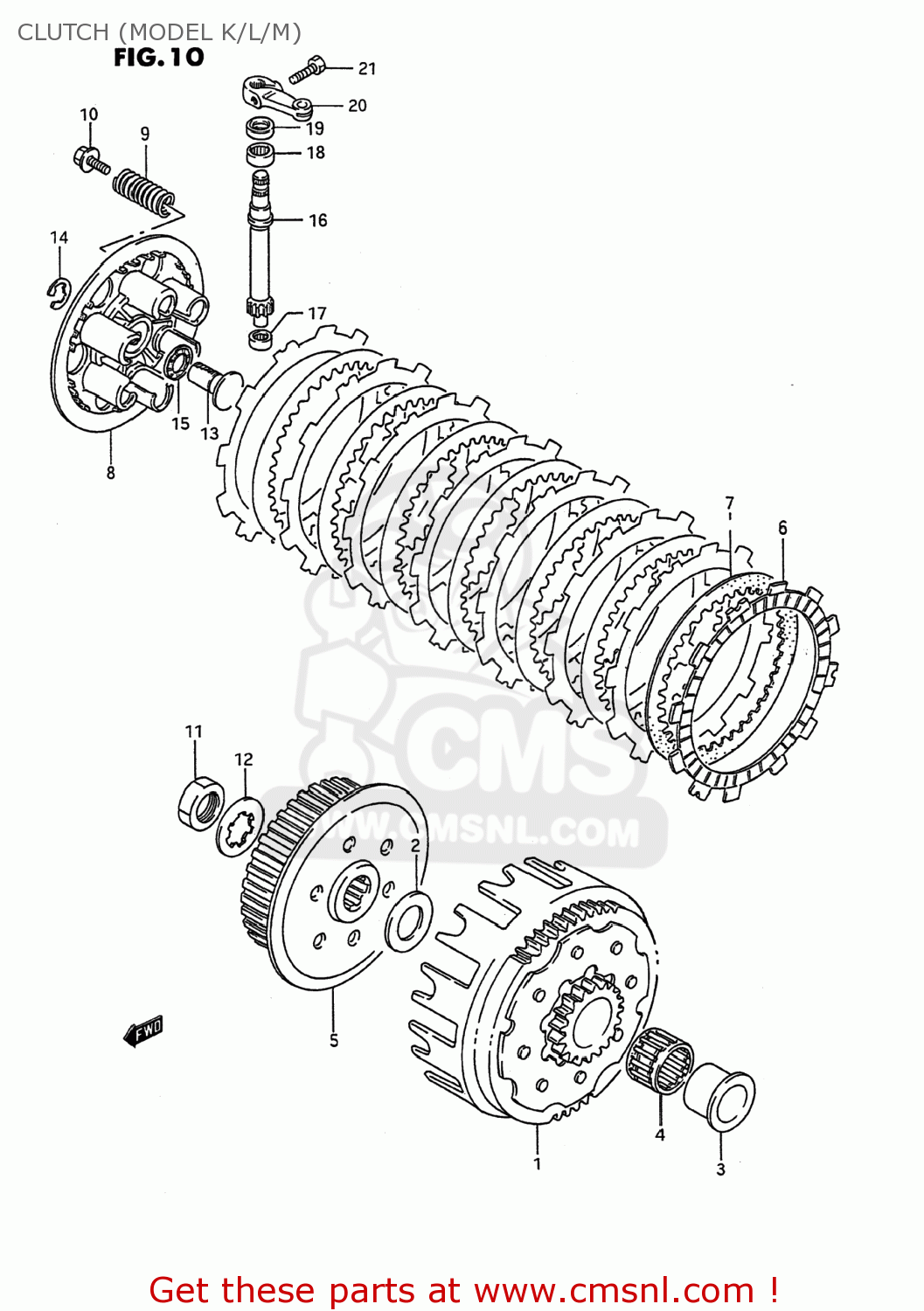

Clutch (model k/l/m) diagram RMX250 1989 (K) USA (E03)

CLUTCH (MODEL K/L/M) RMX250 1989 (K) USA (E03)

CLUTCH (MODEL K/L/M) RMX250 1989 (K) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

2120028C01
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVEN,N

€ 279.50

2

0916022067
ref: 2

WASHER(22X38X2)

€ 10.50

3

2125128C01
ref: 3

SPACER,PRIMARY DRIVEN GEAR

€ 23.50

4-1

0926329006
ref: 4-1

BEARING(29X34X21.8)

€ 27.00

4-2

0926329007
ref: 4-2
09263-29006

BEARING

€ 27.00

5

2141028C00
ref: 5
21410-28C01

HUB,CLUTCH SLEEVE

€ 101.50

6-1

2144107A01
ref: 6-1
21441-12D01

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

6-2

2144128C10
ref: 6-2
21441-37400

PLATE,CLUTCH DRIVE (NAS)

€ 20.50

7

2145145000
ref: 7
21451-28C31

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

8

2146226C00
ref: 8

DISC,CLUTCH PRESSURE

€ 51.50

9-1

0944019021
ref: 9-1
09440-19024

SPRING

€ 5.50

9-2

0944019024
ref: 9-2

SPRING

€ 5.50

10

0911605017
ref: 10

BOLT(5X18)

€ 2.50

11

0914020016
ref: 11

NUT

€ 6.00

12

0916722021
ref: 12

WASHER,LOCK

€ 2.00

13

2316528300
ref: 13
23165-46000

RACK,CLUTCH RELEASE

€ 20.00

14

0833211086
ref: 14
08332-1108A

E RING

€ 2.00

15

0926310002
ref: 15

BEARING(10X22X2.8)

€ 8.50

16

2326100B20
ref: 16

PINION,CLUTCH RELEASE(NT:12)

€ 46.50

17

0926309001
ref: 17

BEARING(9X13X10)

€ 11.00

18

0926312024
ref: 18

BEARING(12X16X10)

€ 11.00

19

0928510004
ref: 19

SEAL,OIL(10X17X5)

€ 3.50

20

2327120900
ref: 20
23271-20902

ARM,CLUTCH RELEASE

€ 20.50

21

0150006167
ref: 21

BOLT

€ 3.00
