HEADLAMP
RMX250 1989 (K) USA (E03)

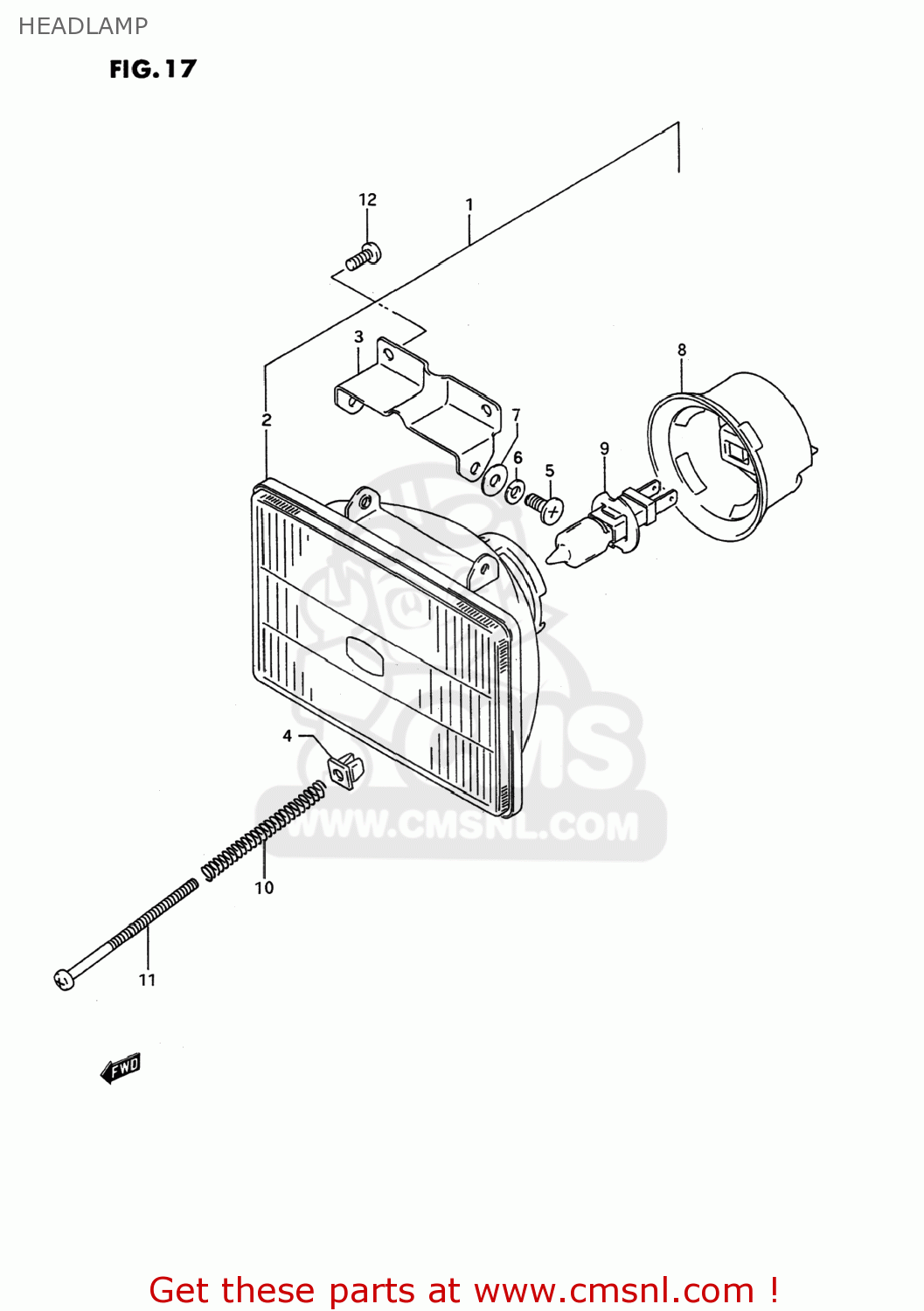

Headlamp diagram RMX250 1989 (K) USA (E03)
HEADLAMP RMX250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510005D00
ref: 1
HEADLAMP ASSY
€ 107.00
2
3512105D00
ref: 2
35121-05D01
UNIT,LAMP
€ 80.00
3
3523005D00
ref: 3
BRACKET,LAMP
€ 9.00
4-1
3515205C00
ref: 4-1
35135-12E20
NUT,HEADLAMP ADJUSTER
€ 2.50
4-2
3513512E20
ref: 4-2
NUT,ADJUSTING
€ 2.50
5
3513616700
ref: 5
SCREW
€ 3.00
6
0832101057
ref: 6
08321-0105A
WASHER,LOCK
€ 2.00
7
3513805D00
ref: 7
WASHER
€ 1.50
8
3517305D00
ref: 8
COVER,SOCKET
€ 15.00
9
0947112160
ref: 9
BULB(12V55W)
€ 24.50
10
3515430B00
ref: 10
SPRING,HEAD LAMP ADJUSTER
€ 1.50
11-1
3515105D00
ref: 11-1
09125-04501
SCREW,HEADLAMP ADJUST
€ 3.00
11-2
0912504501
ref: 11-2
SCREW(4X45)
€ 3.00
12-1
0351104106
ref: 12-1
03511-0410A
SCREW
€ 1.50
12-2
0351104103
ref: 12-2
03511-0410A
SCREW
€ 1.50
