REAR WHEEL (MODEL K/L/M)
RMX250 1989 (K) USA (E03)

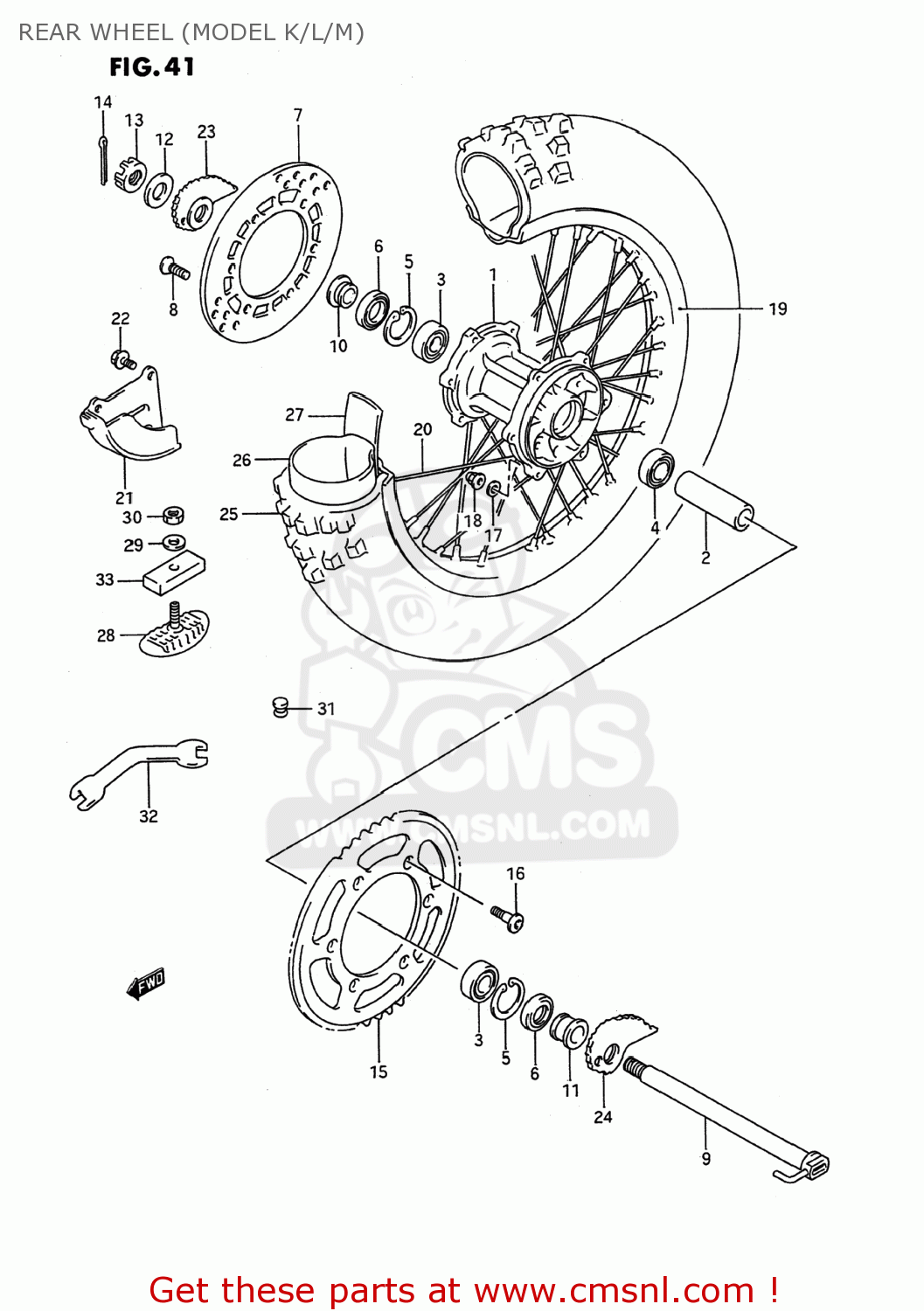

Rear wheel (model k/l/m) diagram RMX250 1989 (K) USA (E03)
REAR WHEEL (MODEL K/L/M) RMX250 1989 (K) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6411028C01
ref: 1
HUB,RR
€ 352.00
2
6473100B30
ref: 2
SPACER,RR HUB BEARING
€ 15.50
3
0813362047
ref: 3
BEARING WHEEL REAR(20X47X14)
€ 22.50
4
0812360047
ref: 4
08133-60047
BALL BEARING
€ 21.00
5
0833141478
ref: 5
08331-41479
CIRCLIP,14MM
€ 2.50
6
0928326019
ref: 6
SEAL,OIL(26X47X5)
€ 9.50
7
6921105D00
ref: 7
69211-43D00
DISC,REAR BRAKE
€ 160.00
8
0212206167
ref: 8
SCREW
€ 2.00
9
6471005D00
ref: 9
AXLE,RR
€ 73.00
10
6474105D00
ref: 10
SPACER,RR AXLE,R
€ 9.00
11
6475105D00
ref: 11
SPACER,RR AXLE,L
€ 15.00
12
0916019010
ref: 12
09160-19022
WASHER (19X32X3.2)
€ 5.00
13
0831441188
ref: 13
08314-40187
NUT 18MM
€ 6.00
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
€ 1.50
15-1
6451100B11
ref: 15-1
64511-00B12
SPROCKET,REAR
€ 86.00
15-2
6451100B01
ref: 15-2
SPROCKET,RR(NT:49)
€ 99.00
15-3
6451100B21
ref: 15-3
SPROCKET,RR(NT:51)
€ 66.00
15-4
6451140281
ref: 15-4
64511-28E00
SPROCKET,REAR
€ 99.00
15-5
6451140271
ref: 15-5
64511-36E00
SPROCKET,REAR
€ 99.00
15-6
6451140261
ref: 15-6
SPROCKET,RR(NT:51 AL)
€ 87.50
16
0912008004
ref: 16
SCREW(8X33.5)
€ 3.00
17
0916408011
ref: 17
WASHER
€ 3.50
18
0831931087
ref: 18
NUT
€ 2.50
19
6531128C00
ref: 19
65311-28C01
RIM,REAR WHEEL (2.15X18)(A
€ 351.50
20
6532026C00
ref: 20
SPOKE ASSY,RR WHEEL
€ 94.00
21
6923005D00
ref: 21
COVER COMP,REAR BRAKE
€ 54.00
22
0151706128
ref: 22
01550-06127
BOLT
€ 2.50
23
6141005D00
ref: 23
ADJUSTER,CHAIN,R
€ 13.50
24
6142005D00
ref: 24
ADJUSTER,CHAIN,L
€ 26.50
25
6510005D00
ref: 25
TIRE,REAR 110/100-18
€ 0.00
26
6520040430
ref: 26
TUBE,INNER
€ 0.00
27
5526111010
ref: 27
PROTECTOR,INNER TUBE
€ 3.50
28
6527014200
ref: 28
65270-28E00
STOPPER,BEAD
€ 38.00
29
0832211088
ref: 29
08322-01087
WASHER
€ 2.00
30-1
0831022088
ref: 30-1
08310-00087
NUT 8MM
€ 2.00
30-2
0831012088
ref: 30-2
08310-00087
NUT
€ 2.00
31
0925008013
ref: 31
CAP(OD:12)
€ 2.00
32
0981300039
ref: 32
SPANNER,OPEN
€ 8.00
33
6527127C00
ref: 33
CUSHION,BEAD STOPPER
€ 5.50
