GEAR SHIFTING

RMX250 1989 (K) USA (E03)

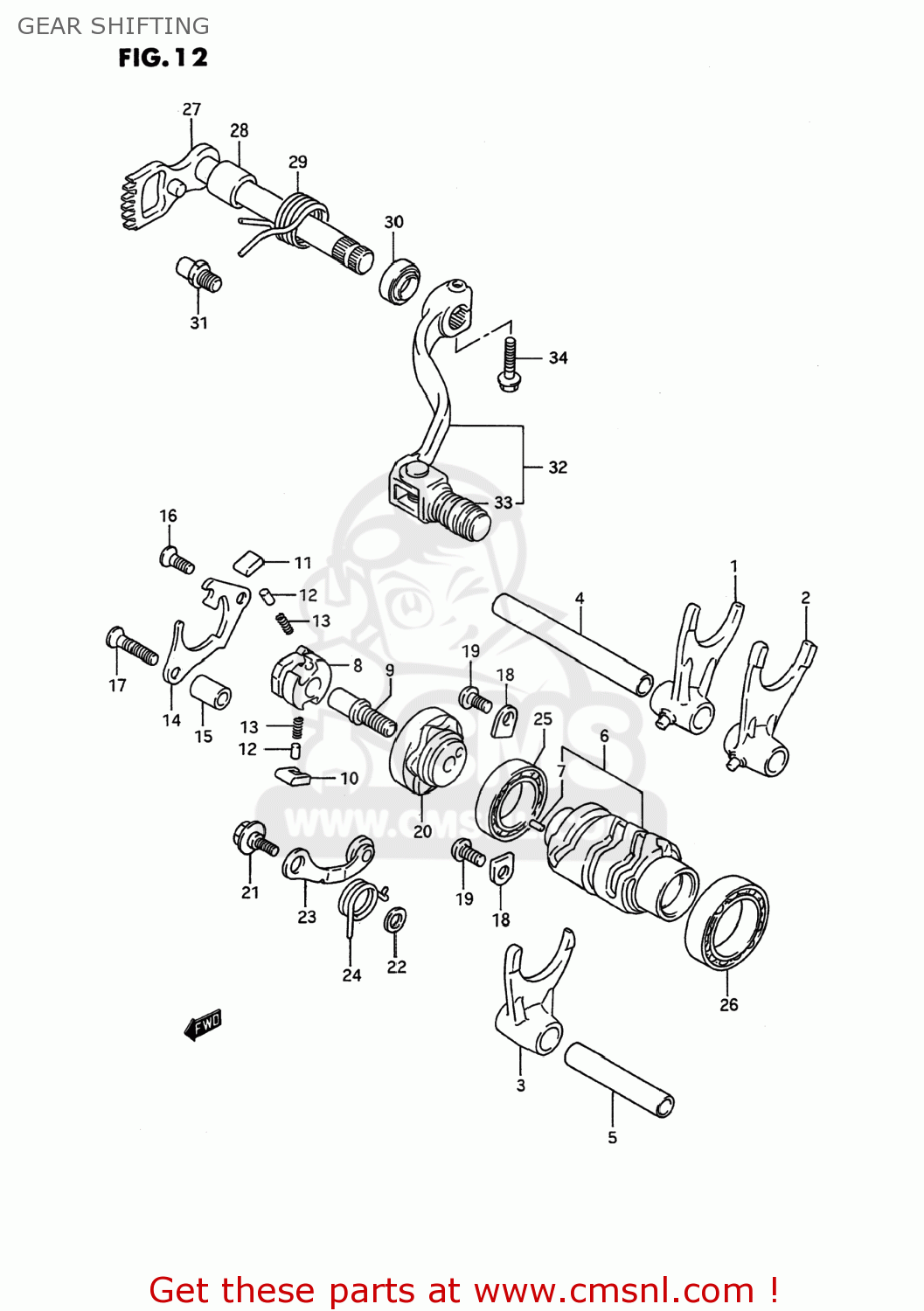

Gear shifting diagram RMX250 1989 (K) USA (E03)

GEAR SHIFTING RMX250 1989 (K) USA (E03)
GEAR SHIFTING RMX250 1989 (K) USA (E03)
GEAR SHIFTING RMX250 1989 (K) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2521128C01
ref: 1
FORK,GEAR SHIFT NO.1
2521128C01
€ 45.00
2-1
2522128C01
ref: 2-1
25221-28C02
FORK,GEAR SHIFT NO.2
2522128C01
€ 45.00
2-2
2522128C02
ref: 2-2
FORK,GEAR SHIFT NO.2
2522128C02
€ 45.00
3-1
2523128C01
ref: 3-1
25231-28C02
FORK,GEAR SHIFT NO.3
2523128C01
€ 48.00
3-2
2523128C02
ref: 3-2
FORK,GEAR SHIFT NO.3
2523128C02
€ 48.00
4
2541127C00
ref: 4
25411-37F20
SHAFT,GEAR SHIFT FORK
2541127C00
€ 11.50
5
2542127C00
ref: 5
25421-27C01
SHAFT,GEAR SHIFT FORK
2542127C00
€ 9.50
6-1
2531028C03
ref: 6-1
25310-28C20
CAM,GEAR SHIFT
€ 232.50
6-2
2531028C10
ref: 6-2
25310-28C20
CAM,GEAR SHIFT
2531028C10
€ 232.50
6-3
2531028C20
ref: 6-3
CAM,GEAR SHIFT
2531028C20
€ 232.50
7-1
0926104011
ref: 7-1
PIN(4X11.8)
0926104011
€ 2.00
7-2
0422104089
ref: 7-2
PIN
0422104089
€ 1.50
8
2532231301
ref: 8
25322-31310
GEAR,GEARSHIFT CAM DRIVE
2532231301
€ 14.50
9-1
2531327C00
ref: 9-1
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
2531327C00
€ 6.00
9-2
2531327C01
ref: 9-2
25313-27C02
PIN,SHIFT CAM DRIVEN GEAR
2531327C01
€ 6.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
2532334201
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
2532434201
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
0926105003
€ 1.50
13
0944004003
ref: 13
SPRING
0944004003
€ 1.50
14
2533128C00
ref: 14
LIFTER,GEAR SHIFT POLE
2533128C00
€ 15.00
15
0918006204
ref: 15
SPACER(6.2X12X18)
0918006204
€ 6.50
16-1
0212206128
ref: 16-1
02122-06127
SCREW
0212206128
€ 3.00
16-2
0212206123
ref: 16-2
02122-0612A
SCREW
0212206123
€ 3.00
17-1
0212206308
ref: 17-1
02122-0630B
SCREW
€ 2.00
17-2
0212206303
ref: 17-2
02122-0630B
SCREW
0212206303
€ 2.00
18-1
2474120A10
ref: 18-1
24741-21A00
RETAINER,SHIFT CAM,R BEARING
€ 2.00
18-2
2474121A00
ref: 18-2
RETAINER
2474121A00
€ 2.00
19
0211206123
ref: 19
02112-0612A
SCREW
0211206123
€ 1.50
20-1
2538127C02
ref: 20-1
25381-28C20
PLATE,GEAR SHIFT CAM STOPPER
2538127C02
€ 31.50
20-2
2538127C10
ref: 20-2
25381-28C20
PLATE,GEAR SHIFT CAM STOPPER
2538127C10
€ 31.50
20-3
2538128C20
ref: 20-3
PLATE,SHIFT CAM STOPPER
2538128C20
€ 31.50
21
0911106041
ref: 21
BOLT(6X14.3)
0911106041
€ 3.00
22
0821106121
ref: 22
WASHER
0821106121
€ 2.00
23-1
2535028C00
ref: 23-1
25350-28C20
STOPPER,SHIFT CAM
€ 12.00
23-2
2535028C20
ref: 23-2
STOPPER,SHIFT CAM
2535028C20
€ 12.00
24-1
0944818024
ref: 24-1
SPRING
0944818024
€ 3.50
24-2
0944818025
ref: 24-2
SPRING
0944818025
€ 5.00
25
0814069050
ref: 25
BEARING
0814069050
€ 28.50
26
0926330035
ref: 26
BEARING(30X37X12)
0926330035
€ 22.00
27
2551028C30
ref: 27
SHAFT,GEAR SHIFT
2551028C30
€ 48.00
28
0918014016
ref: 28
SPACER(14X20X17.5)
0918014016
€ 4.50
29-1
0944426001
ref: 29-1
SPRING
0944426001
€ 4.00
29-2
0944426013
ref: 29-2
SPRING
0944426013
€ 3.50
30
0928314006
ref: 30
SEAL,OIL(14X22X6)
0928314006
€ 6.50
31
2567101000
ref: 31
25671-01011
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
32-1
2560005D00
ref: 32-1
25600-05D03
LEVER ASSEMBLY,GEAR SHIFTING
€ 46.00
32-2
2560005D01
ref: 32-2
25600-05D03
LEVER ASSEMBLY,GEAR SHIFTING
€ 46.00
33-1
2565227C00
ref: 33-1
RUBBER,GEAR SHIFT PEDAL
2565227C00
€ 21.00
33-2
2565203D00
ref: 33-2
RUBBER,GEAR SHIFT PEDAL
2565203D00
€ 3.50
34-1
0154706257
ref: 34-1
BOLT
0154706257
€ 2.50
34-2
0154706253
ref: 34-2
01547-0625B
SCREW
0154706253
€ 2.50
