CRANKCASE
RMX250 1996 (T) GENEREAL (E01)

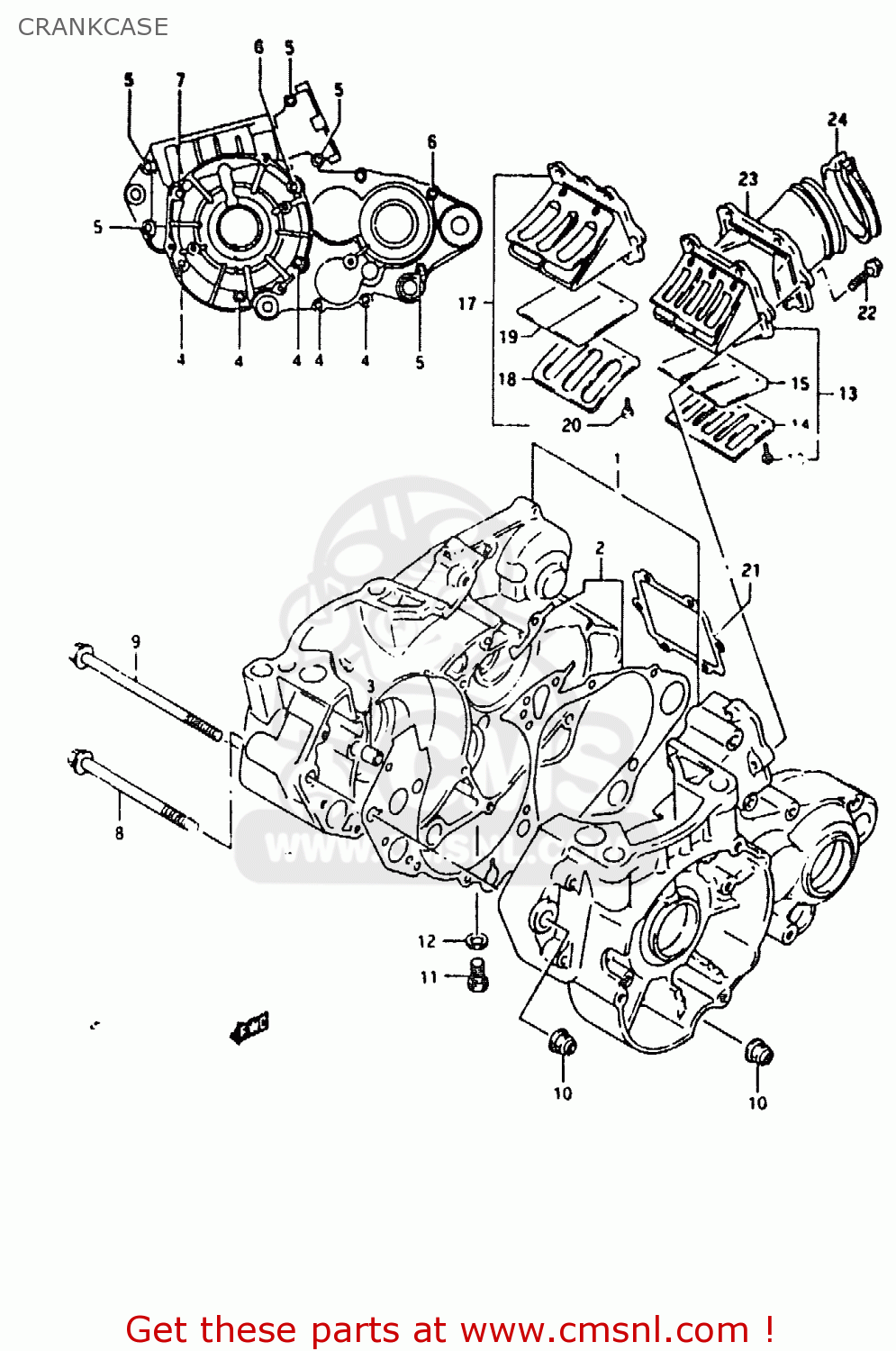

Crankcase diagram RMX250 1996 (T) GENEREAL (E01)
CRANKCASE RMX250 1996 (T) GENEREAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130005896
ref: 1-1
MODEL K/L/M/N
CRANKCASE SET
€ 343.50
1-2
1130129820
ref: 1-2
MODEL S
CRANKCASE SET
€ 794.00
1-3
1130129821
ref: 1-3
MODEL T
CRANKCASE SET
€ 794.00
2
1148128C00
ref: 2
GASKET,CRANKCASE (NAS)
€ 15.00
3
0421109129
ref: 3
PIN
€ 2.00
4-1
0154706407
ref: 4-1
MODEL K/L/M/N
BOLT
€ 2.50
4-2
0154704403
ref: 4-2
MODEL S/T
BOLT
€ 0.00
5-1
0154706507
ref: 5-1
MODEL K/L/M/N
BOLT
€ 2.50
5-2
0154706503
ref: 5-2
MODEL S/T
BOLT
€ 3.50
6-1
0154706557
ref: 6-1
MODEL K/L/M/N
BOLT
€ 2.50
6-2
0154706553
ref: 6-2
MODEL S/T
BOLT
€ 3.00
7-1
0154706607
ref: 7-1
MODEL K/L/M/N
BOLT
€ 2.50
7-2
0154706603
ref: 7-2
MODEL S/T
BOLT
€ 3.50
8-1
0910308097
ref: 8-1
MODEL K
BOLT(8X105)
€ 3.00
8-2
0910308273
ref: 8-2
MODEL L
BOLT
€ 5.50
8-3
0910308296
ref: 8-3
MODEL M/N/S/T
BOLT(8X102)
€ 5.50
9-1
0910308248
ref: 9-1
MODEL K/L
BOLT
€ 7.00
9-2
0910308297
ref: 9-2
MODEL M/N/S/T
BOLT(8X137)
€ 7.00
10
0915908067
ref: 10
NUT
€ 5.50
11-1
0110708167
ref: 11-1
MODEL K/L/M/N
BOLT,8X16
€ 2.00
11-2
0155008163
ref: 11-2
MODEL S/T
BOLT
€ 3.00
12
0916808016
ref: 12
GASKET(8.2X14X1) (NAS)
€ 1.00
13
1315005D00
ref: 13
MODEL K/L/M/N
VALVE ASSEMBLY,REED
€ 90.50
14
1315201C10
ref: 14
MODEL K/L/M/N
STOPPER,REED VALVE
€ 7.00
15
1315305D00
ref: 15
MODEL K/L/M/N
VALVE,REED
€ 10.50
16
0211233083
ref: 16
MODEL K/L/M/N
SCREW
€ 2.00
17
1315028E01
ref: 17
MODEL S/T
VALVE ASSY,REED
€ 88.50
18
1315228E00
ref: 18
MODEL S/T
STOPPER,REED VALVE
€ 4.00
19
1315328E00
ref: 19
MODEL S/T
VALVE,REED
€ 14.50
20
0211213063
ref: 20
MODEL S/T
SCREW
€ 3.00
21
1315601C10
ref: 21
GASKET,REED VALVE (NAS)
€ 3.00
22-1
0154706207
ref: 22-1
MODEL K/L/M/N
BOLT
€ 2.50
22-2
0154706203
ref: 22-2
MODEL S/T
SCREW
€ 2.50
23-1
1311028C01
ref: 23-1
MODEL K/L/M/N
PIPE,INTAKE
€ 72.00
23-2
1311028E00
ref: 23-2
MODEL S/T
PIPE,INTAKE
€ 62.50
24
0940256208
ref: 24
CLAMP
€ 3.50
