RMX250 1996 (T) GENEREAL (E01)

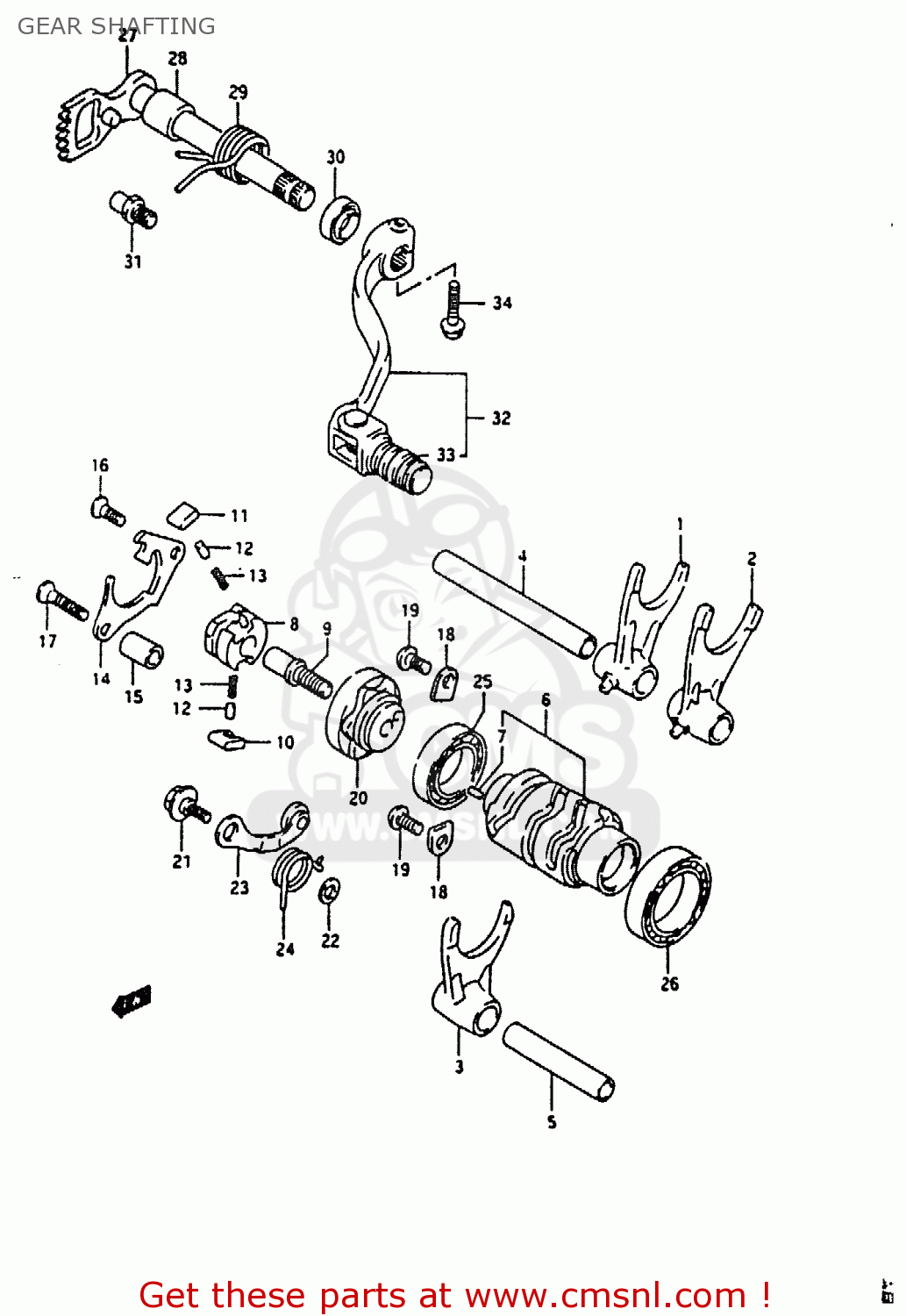

Gear shafting diagram RMX250 1996 (T) GENEREAL (E01)
GEAR SHAFTING RMX250 1996 (T) GENEREAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
2521128C01
ref: 1
FORK,GEAR SHIFT NO.1
€ 45.00
2-1
2522128C01
ref: 2-1
MODEL K/L/M/N/S
FORK,GEAR SHIFT NO.2
€ 45.00
2-2
2522128C02
ref: 2-2
MODEL T
FORK,GEAR SHIFT NO.2
€ 45.00
3-1
2523128C01
ref: 3-1
MODEL K/L/M/N/S
FORK,GEAR SHIFT NO.3
€ 48.00
3-2
2523128C02
ref: 3-2
MODEL T
FORK,GEAR SHIFT NO.3
€ 48.00
4
2541127C00
ref: 4
SHAFT,GEAR SHIFT FORK
€ 11.50
5
2542127C00
ref: 5
SHAFT,GEAR SHIFT FORK
€ 9.50
6-1
2531028C03
ref: 6-1
MODEL K >25310-28C20
CAM,GEAR SHIFT
€ 232.50
6-2
2531028C10
ref: 6-2
MODEL L/M/N
CAM,GEAR SHIFT
€ 232.50
6-3
2531028C20
ref: 6-3
MODEL S/T
CAM,GEAR SHIFT
€ 232.50
7-1
0926104011
ref: 7-1
L:11.8, MODEL K
PIN(4X11.8)
€ 2.00
7-2
0422104089
ref: 7-2
MODEL L/M/N/S/T
PIN
€ 1.50
8
2532231301
ref: 8
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
9
2531327C01
ref: 9
(25313-27C00
PIN,SHIFT CAM DRIVEN GEAR
€ 6.00
10
2532334201
ref: 10
PAWL,GEAR SHIFT NO.1
€ 6.00
11
2532434201
ref: 11
PAWL,GEAR SHIFT NO.2
€ 6.00
12
0926105003
ref: 12
PIN(5X8)
€ 1.50
13
0944004003
ref: 13
SPRING
€ 1.50
14
2533128C00
ref: 14
LIFTER,GEAR SHIFT POLE
€ 15.00
15
0918006204
ref: 15
SPACER(6.2X12X18)
€ 6.50
16-1
0212206128
ref: 16-1
MODEL K/L/M/N
SCREW
€ 3.00
16-2
0212206123
ref: 16-2
MODEL S/T
SCREW
€ 3.00
17-1
0212206308
ref: 17-1
MODEL K/L/M/N
SCREW
€ 2.00
17-2
0212206303
ref: 17-2
MODEL S/T
SCREW
€ 2.00
18
2474121A00
ref: 18
(24741-20A10
RETAINER
€ 2.00
19-1
0211206128
ref: 19-1
MODEL K/L/M/N
SCREW 6X12
€ 2.00
19-2
0211206123
ref: 19-2
MODEL S/T
SCREW
€ 1.50
20-1
2538127C02
ref: 20-1
MODEL K
PLATE,GEAR SHIFT CAM STOPPER
€ 31.50
20-2
2538127C10
ref: 20-2
MODEL L/M/N
PLATE,GEAR SHIFT CAM STOPPER
€ 31.50
20-3
2538128C20
ref: 20-3
MODEL S/T
PLATE,SHIFT CAM STOPPER
€ 31.50
21
0911106041
ref: 21
BOLT(6X14.3)
€ 3.00
22
0821106121
ref: 22
WASHER
€ 2.00
23-1
2535028C00
ref: 23-1
MODEL K/L/M/J
STOPPER,SHIFT CAM
€ 12.00
23-2
2535028C20
ref: 23-2
MODEL S/T
STOPPER,SHIFT CAM
€ 12.00
24-1
0944818024
ref: 24-1
MODEL K/L/M/N
SPRING
€ 3.50
24-2
0944818025
ref: 24-2
MODEL S/T
SPRING
€ 5.00
25
0814069050
ref: 25
BEARING
€ 28.50
26
0926330035
ref: 26
BEARING(30X37X12)
€ 22.00
27
2551028C30
ref: 27
SHAFT,GEAR SHIFT
€ 48.00
28
0918014016
ref: 28
SPACER(14X20X17.5)
€ 4.50
29-1
0944426001
ref: 29-1
MODEL K/L/M/N
SPRING
€ 4.00
29-2
0944426013
ref: 29-2
MODEL S/T
SPRING
€ 3.50
30
0928314006
ref: 30
(09283-14005
SEAL,OIL(14X22X6)
€ 6.50
31
2567101000
ref: 31
STOPPER,GEAR SHIFT CAM
€ 3.00
32
2560005D01
ref: 32
(25600-05D00
LEVER ASSEMBLY,GEAR SHIFTING
€ 46.00
33-1
2565227C00
ref: 33-1
MODEL K/L/M/N
RUBBER,GEAR SHIFT PEDAL
€ 21.00
33-2
2565205D00
ref: 33-2
MODEL S/T
RUBBER, GEAR SHIFT FEDAL
€ 0.00
34-1
0154706257
ref: 34-1
MODEL K/L/M/N
BOLT
€ 2.50
34-2
0154706253
ref: 34-2
MODEL S/T
SCREW
€ 2.50
