FRAME COVER (MODEL)

RMX250 1996 (T) GENEREAL (E01)

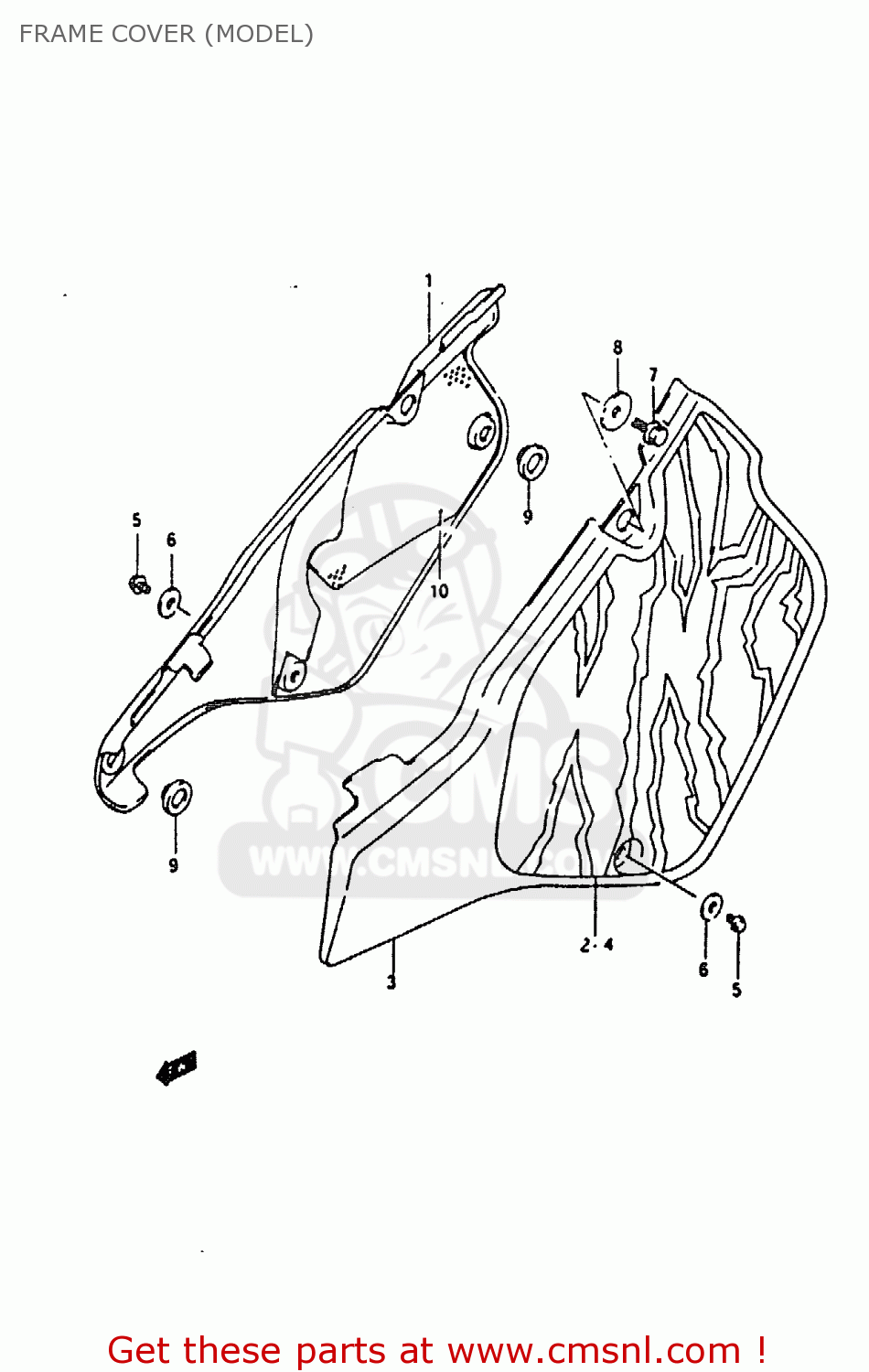

Frame cover (model) diagram RMX250 1996 (T) GENEREAL (E01)

prices are in EUR

ref

part #

description

quantity

1-1

4711105D0025Y
ref: 1-1
MODEL N

COVER,FRAME,R(YELLOW)

€ 44.50

1-2

4711105D0030H
ref: 1-2
MODEL S

COVER,FRAME,R(WHITE)

€ 40.50

6813505D10L59
ref: 2
MODEL N

TAPE,FRAME COVER,RIGHT

€ 79.50

3-1

4721127C0025Y
ref: 3-1
MODEL N

COVER,FRAME,L(YELLOW)

€ 44.00

3-2

4721127C0030H
ref: 3-2
MODEL S/T

COVER,FRAME,L(WHITE)

€ 43.00

6814505D10L59
ref: 4
MODEL N

TAPE,FRAME COVER,LEFT

€ 74.50

0154706167
ref: 5

BOLT

€ 2.00

0916806027
ref: 6

GASKET(6.5X20X1.5) (NAS)

€ 3.50

7-1

0151708207
ref: 7-1
MODEL N

BOLT

€ 3.00

7-2

0155008207
ref: 7-2
MODEL S/T

BOLT

€ 3.00

0916908045
ref: 8

WASHER

€ 2.00

0932110018
ref: 9

CUSHION

€ 5.00

10-1

4716605D00
ref: 10-1

HEATSHIELD,FRAME COVER,R

€ 0.00

10-2

4716705D00
ref: 10-2

SHIELD,FRAME COVER,RIGHT

€ 12.50

4716605D00
ref: 13

HEATSHIELD,FRAME COVER,R

€ 0.00
