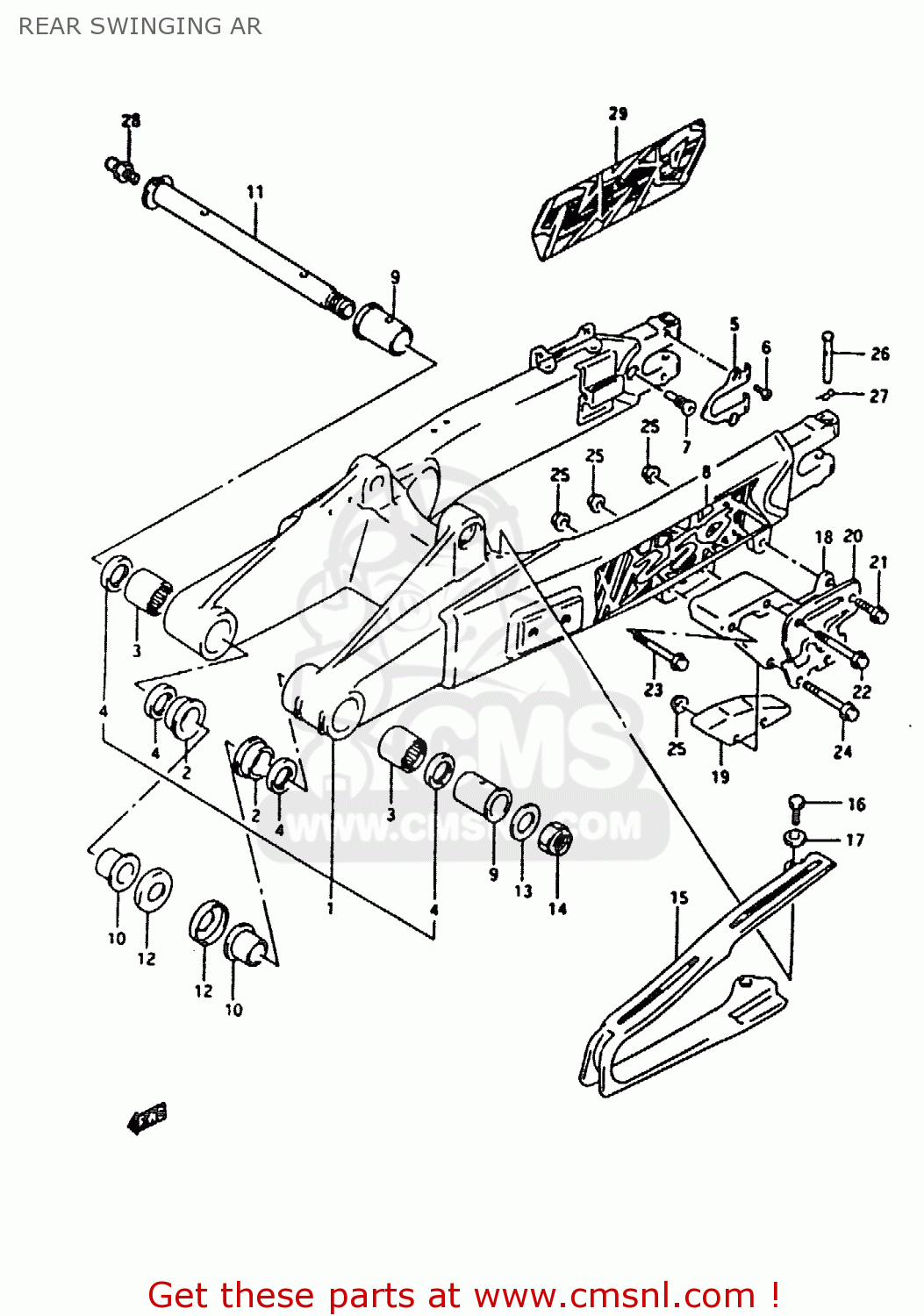

REAR SWINGING AR

ref

part #

description

quantity

1

6100029E30
ref: 1

SWING ARM ASSEMBLY,REAR

€ 1,215.50

2

6126128C00
ref: 2

BUSHING,SWGARM PIVOT

€ 22.00

3

0926322017
ref: 3

BEARING(22X29X30)

€ 18.50

4

0928522001
ref: 4

SEAL,OIL(22X29X4)

€ 5.00

5

6112829E00
ref: 5

PLATE,RR SWING ARM AXLE

€ 8.50

6

0912605009
ref: 6

SCREW(5X8)

€ 2.50

7

0913910001
ref: 7

SCREW (M10X21)

€ 6.50

8

6838129E00DOK
ref: 8
MODEL S

EMBLEM, 250

€ 35.00

9

6125105D00
ref: 9

SPACER,RR SWGARM PIVOT

€ 18.50

10

6125228C00
ref: 10

SPACER,SWGARM PIVOT INNER

€ 17.50

11

6121005D00
ref: 11

SHAFT COMP,SWING ARM PIVOT

€ 61.50

12

6126228C10
ref: 12

COVER,SWINGINGARM PIVOT

€ 4.50

13

0832201163
ref: 13

WASHER, FIXED DRIVE FACE

€ 2.00

14

0915916007
ref: 14

NUT

€ 10.50

15

6127327C01
ref: 15

BUFFER,CHAIN TOUCH DEFENSE

€ 54.00

16

0154706163
ref: 16

BOLT

€ 2.50

17

0916906057
ref: 17

WASHER

€ 4.00

18

6134127C00
ref: 18

GUIDE,CHAIN

€ 20.00

19-1

6134801B30
ref: 19-1
61348-27C20

DEFENSE,CHAIN GUIDE

€ 26.50

19-2

6134827C20
ref: 19-2

DEFENSE,CHAIN GUIDE

€ 26.50

20

6134227C00
ref: 20

PLATE,CHAIN GUIDE OUTER

€ 19.50

21

0154706303
ref: 21

BOLT,G/S SWITC

€ 3.00

22

0154706603
ref: 22

BOLT

€ 3.50

23

0154706553
ref: 23

BOLT

€ 3.00

24

0154706503
ref: 24

BOLT

€ 3.50

25

0831931067
ref: 25

NUT

€ 2.50

26

0920006065
ref: 26

PIN

€ 4.00

27

0938506012
ref: 27

CLIP

€ 2.00

28

0835111002
ref: 28

NIPPLE

€ 3.50

29-1

6838137E00E8T
ref: 29-1
MODEL T

EMBLEM,SWING ARM (250)

€ 21.00

29-2

6839105D00E8T
ref: 29-2
MODEL T

EMBLEM,SWING ARM,LEFT

€ 0.00
