FRONT MASTER CYL
RMX250 1996 (T) GENEREAL (E01)

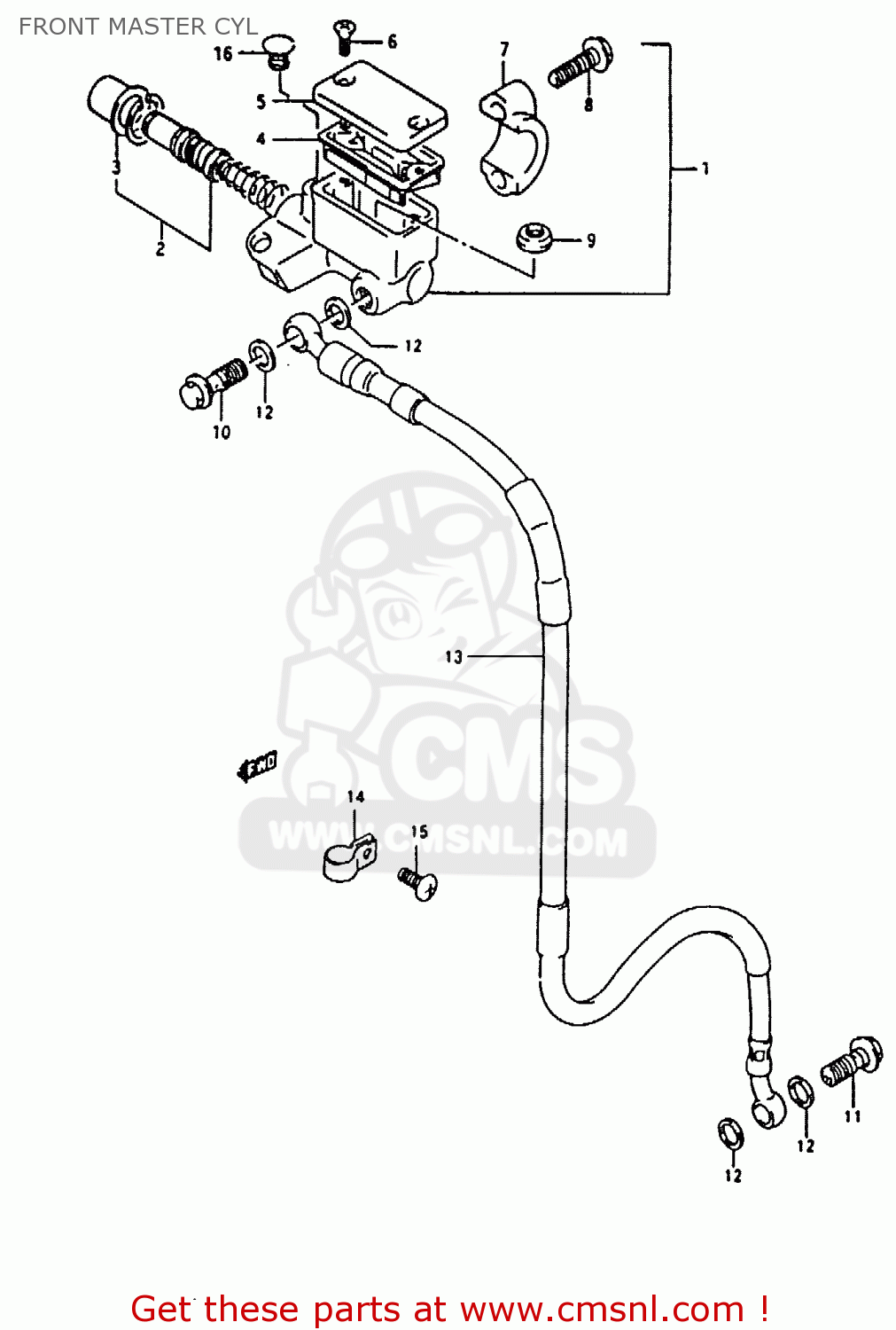

Front master cyl diagram RMX250 1996 (T) GENEREAL (E01)
FRONT MASTER CYL RMX250 1996 (T) GENEREAL (E01)
×
prices are in EUR
ref
part #
description
quantity
1
5960005D00
ref: 1
CYLINDER ASSEMBLY,FRONT MASTER
€ 150.00
2
5960027820
ref: 2
PISTON & CUP SET
€ 30.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
5966905D00
ref: 5
CAP
€ 13.50
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967127C00
ref: 7
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974814500
ref: 9
SEPARATOR
€ 6.00
10
0936010041
ref: 10
BOLT UNION
€ 6.50
11
0936010042
ref: 11
BOLT UNION
€ 5.00
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948005D20
ref: 13
HOSE COMP,FRONT BRAKE
€ 193.00
14
5924303B01
ref: 14
CLAMP,FR BRAKE
€ 3.50
15
0214206253
ref: 15
SCREW
€ 1.50
16
0925009001
ref: 16
CAP(OD:14)
€ 1.00
12-2
594B005D11
ref: 12-2
MODEL M/N/S
HOSE, FRONT BRAKE
€ 0.00
13-1
5927005D00
ref: 13-1
MODEL. K/L
CLAMP,FRONT BRAKE HOSE
€ 6.00
13-2
5927005D10
ref: 13-2
MODEL, M
CLAMP,FRONT BRAKE HOSE NO
€ 0.00
14
5924728C01
ref: 14
CLAMP,FR BRAKE HOSE NO.2
€ 6.00
15-1
0193406108
ref: 15-1
MODEL K/L
BOLT
€ 2.50
15-2
0910306145
ref: 15-2
MODEL, M/N/S
BOLT
€ 2.00
16
0925009001
ref: 16
CAP(OD:14)
€ 1.00
17
5924628C01
ref: 17
MODEL N/S
CLAMP,FRONT BRAKE HOSE
€ 6.50
