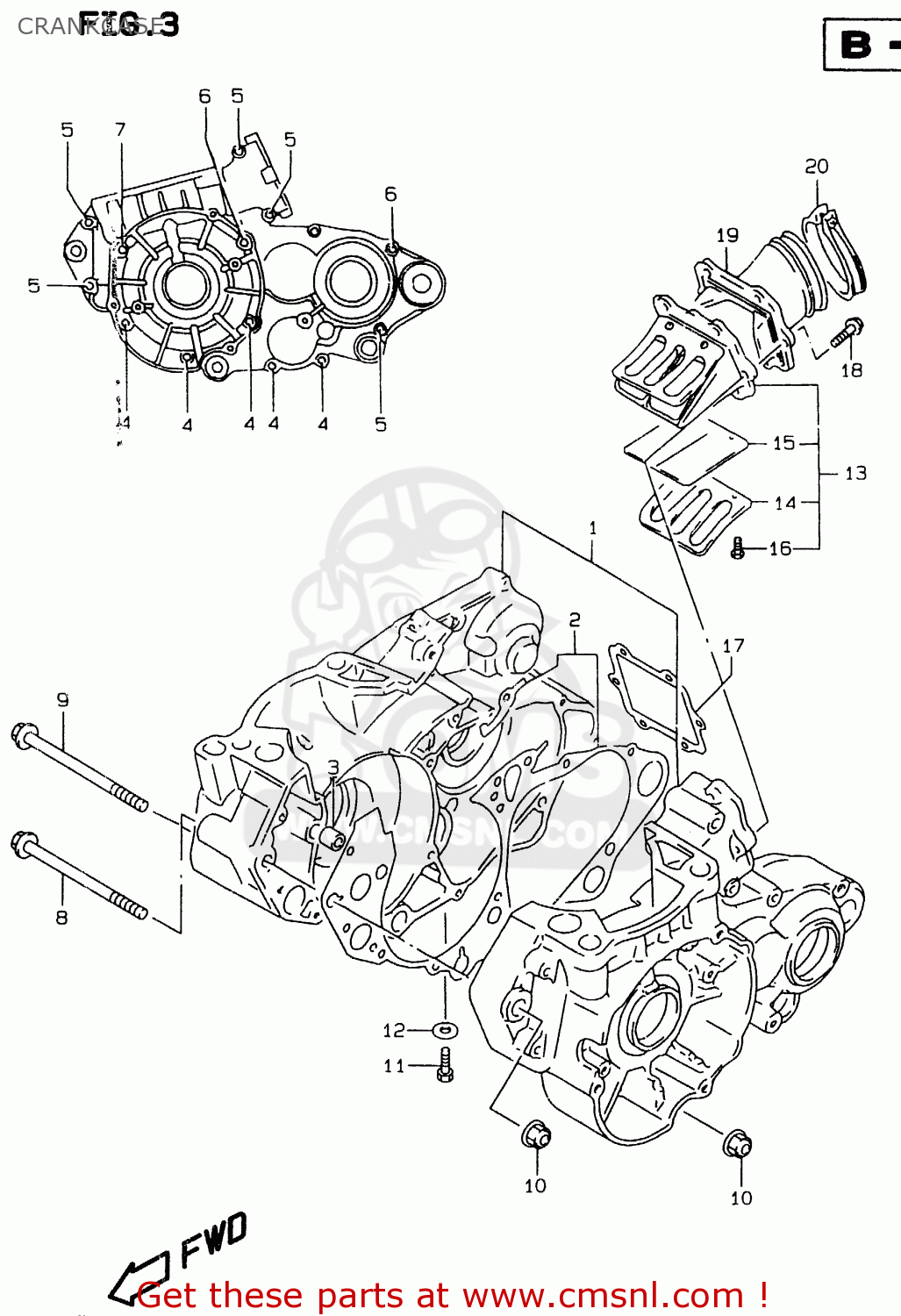

CRANKCASE

ref

part #

description

quantity

1

1130144860
ref: 1

CRANKCASE SET

€ 794.00

2

1148128C00
ref: 2

GASKET,CRANKCASE (NAS)

€ 15.00

3

0421109129
ref: 3

PIN

€ 2.00

4

0154706403
ref: 4

BOLT

€ 3.00

5

0154706503
ref: 5

BOLT

€ 3.50

6

0154706553
ref: 6

BOLT

€ 3.00

7

0154706603
ref: 7

BOLT

€ 3.50

8

0910308296
ref: 8

BOLT(8X102)

€ 5.50

9

0910308297
ref: 9

BOLT(8X137)

€ 7.00

10

0915908067
ref: 10

NUT

€ 5.50

11

0155008163
ref: 11

BOLT

€ 3.00

12

0916808016
ref: 12

GASKET(8.2X14X1) (NAS)

€ 1.00

13

1315028E01
ref: 13

VALVE ASSY,REED

€ 88.50

14

1315228E00
ref: 14

STOPPER,REED VALVE

€ 4.00

15

1315328E00
ref: 15

VALVE,REED

€ 14.50

16

0211213063
ref: 16

SCREW

€ 3.00

17

1315601C10
ref: 17

GASKET,REED VALVE (NAS)

€ 3.00

18

0154706203
ref: 18

SCREW

€ 2.50

19

1311028E00
ref: 19

PIPE,INTAKE

€ 62.50

20

0940256208
ref: 20

CLAMP

€ 3.50
