HEADLAMP

RMX250 1997 (V) GENERAL (E01)

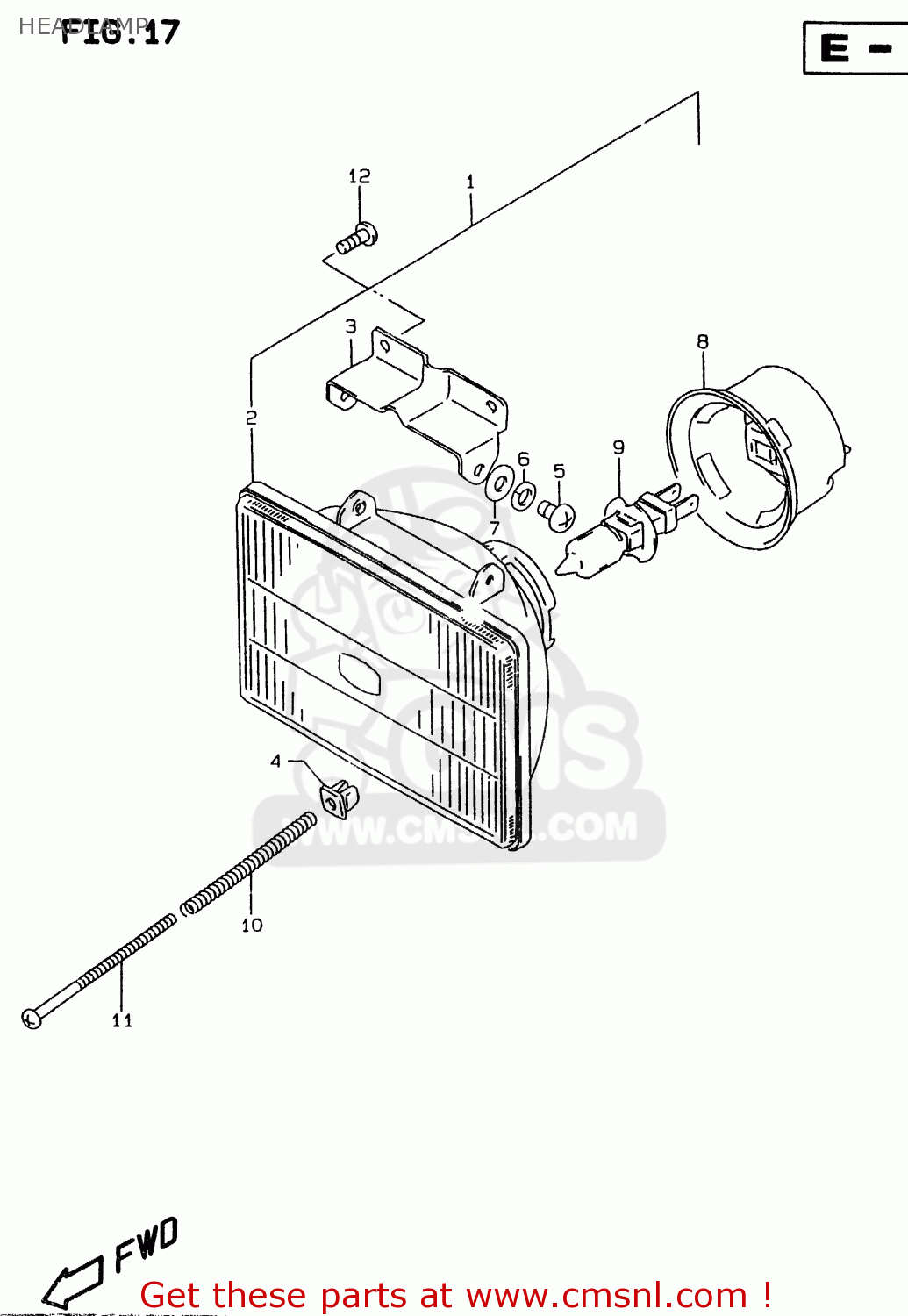

Headlamp diagram RMX250 1997 (V) GENERAL (E01)

HEADLAMP RMX250 1997 (V) GENERAL (E01)

HEADLAMP RMX250 1997 (V) GENERAL (E01)

prices are in EUR

ref

part #

description

quantity

1

3510005D00
ref: 1

HEADLAMP ASSY

€ 107.00

2

3512105D00
ref: 2

UNIT,LAMP

€ 80.00

3

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

4

3513512E20
ref: 4

NUT,ADJUSTING

€ 2.50

5

3513616700
ref: 5

SCREW

€ 3.00

6

0832101057
ref: 6

WASHER,LOCK

€ 2.00

7

3513805D00
ref: 7

WASHER

€ 1.50

8

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

9

0947112160
ref: 9

BULB(12V55W)

€ 24.50

10

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

11

0912504501
ref: 11

SCREW(4X45)

€ 3.00

12

0351104103
ref: 12

SCREW

€ 1.50
