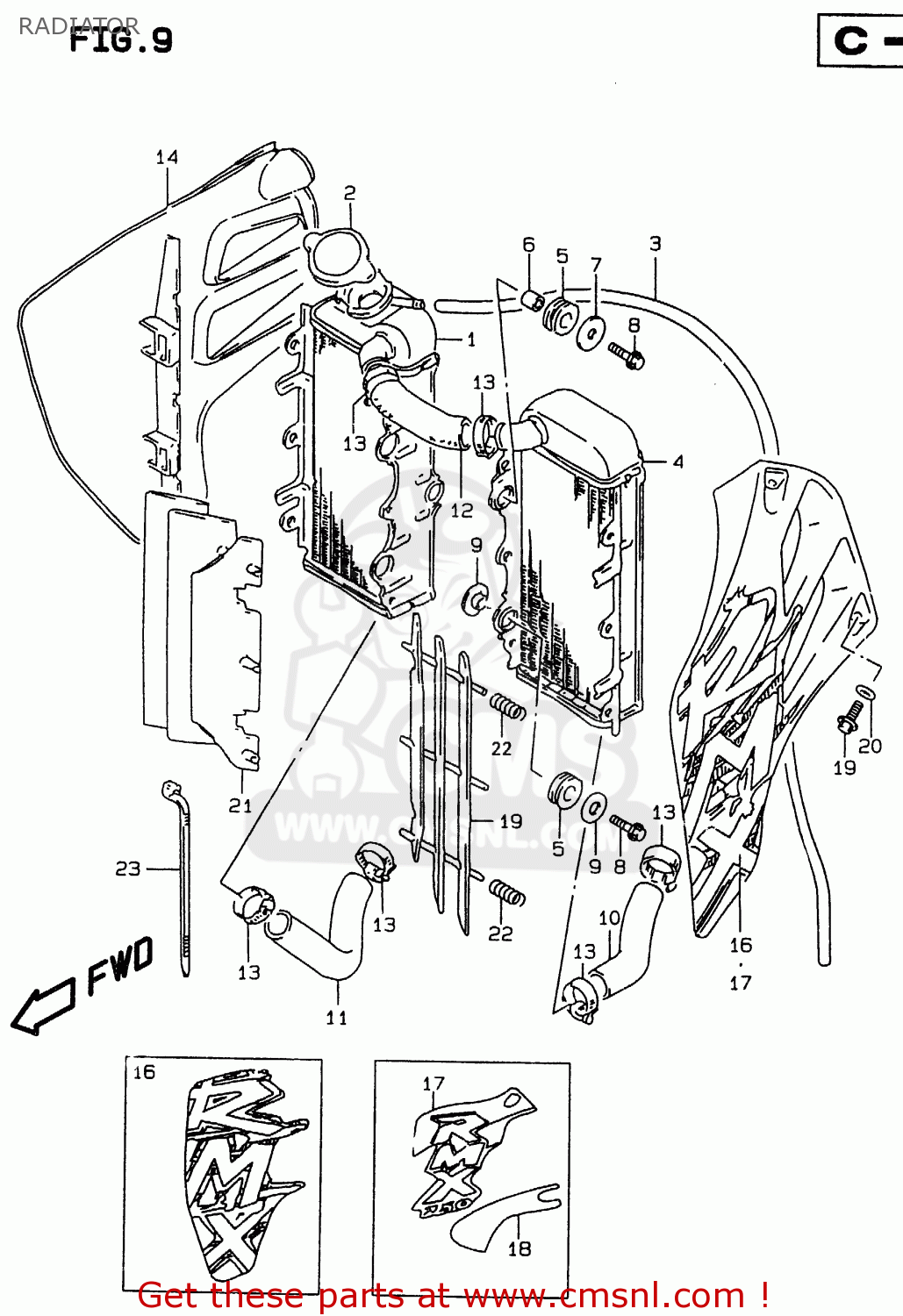

RADIATOR

ref

part #

description

quantity

1

1771005D00
ref: 1

RADIATOR,WATER,R

€ 268.00

2

1773012C01
ref: 2

CAP,RADIATOR

€ 40.00

3

093515080300B
ref: 3
L:2000->650

HOSE(5X8X2000)

€ 10.00

4

1772005D00
ref: 4

RADIATOR COMP,WATER,LEFT

€ 289.50

5

1778719A00
ref: 5

CUSHION,RADIATOR LWR

€ 3.50

6

0918006221
ref: 6

SPACER(6.5X10.5X12)

€ 5.50

7-1

0916006002
ref: 7-1
MODEL V

WASHER (6.5X24X1.2)

€ 2.00

7-2

0916006114
ref: 7-2
MODEL W

WASHER(6.5X24X1.2)

€ 2.00

8

0154706253
ref: 8

SCREW

€ 2.50

9

1778126C00
ref: 9

WASHER,RDTR SPRT

€ 2.50

10

1785128C00
ref: 10

HOSE,RADIATOR INLET

€ 14.00

11

1785228C10
ref: 11

HOSE,RADIATOR OUTLET

€ 14.50

12-1

1785328C20
ref: 12-1
MODEL V

HOSE,RADIATOR JOINT NO.1

€ 17.50

12-2

1785101A00
ref: 12-2
MODEL W

HOSE,RADIATOR INLET

€ 17.50

13

0940228511
ref: 13

CLAMP

€ 8.50

14-1

1776128C00Z62
ref: 14-1
MODEL V

COVER,RADIATOR,R

€ 29.50

14-2

1776128C00019
ref: 14-2
MODEL W

COVER,RADIATOR,R

€ 25.00

15-1

1776228C00Z62
ref: 15-1
MODEL V

COVER,RADIATOR,L

€ 29.50

15-2

1776228C00019
ref: 15-2
MODEL W

COVER,RADIATOR,L

€ 25.00

16-1

6866505D20G7E
ref: 16-1
MODEL V

TAPE,RADIATOR COVER,RIGHT

€ 16.00

16-2

6867505D20G7E
ref: 16-2
MODEL V

TAPE,RADIATOR COVER,LEFT

€ 55.00

17-1

6866105D50J5D
ref: 17-1
MODEL W

EMBLEM,RADIATOR COVER

€ 81.50

17-2

6867105D50J5D
ref: 17-2
MODEL W

EMBLEM,RADIATOR COVER

€ 81.50

18-1

6866505D3025Y
ref: 18-1
MODEL W

TAPE,RADIATOR COVER,RIGHT

€ 16.00

18-2

6867505D3025Y
ref: 18-2
MODEL W

TAPE,RADIATOR COVER,LEFT

€ 16.00

19

0154706123
ref: 19

BOLT

€ 2.00

20

0916906054
ref: 20

WASHER

€ 2.00

21

1783126C00
ref: 21

LOUVER,RADIATOR

€ 17.00

22

0944011024
ref: 22

SPRING

€ 5.00

23

0940718403
ref: 23

CLAMP L:165

€ 2.50

all assemblies
