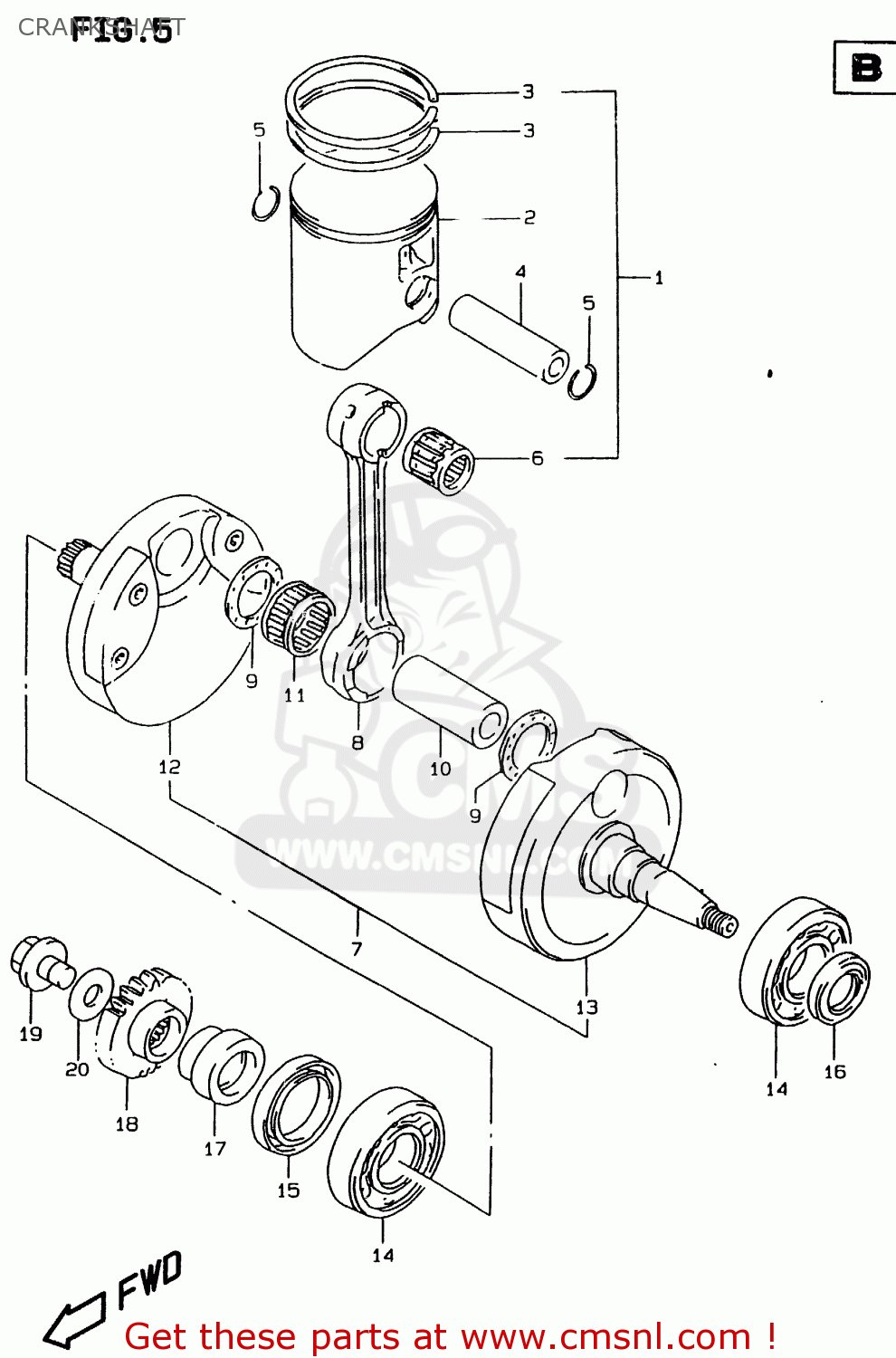

CRANKSHAFT

ref

part #

description

quantity

1

1210029840
ref: 1
OPT

PISTON KIT

€ 206.00

2

1211029E200F0
ref: 2

PISTON

€ 71.50

3

1214128E00
ref: 3

RING,PISTON

€ 24.50

4

1215128C00
ref: 4

PIN,PISTON

€ 13.00

5

0938118002A
ref: 5

CIRCLIP,PISTON PIN

€ 1.50

6

0926318016
ref: 6

BEARING(18X23X22)

€ 14.00

7

1220029E10
ref: 7

CRANKSHAFT ASSEMBLY

€ 658.00

8

1216128C30
ref: 8

ROD,CONNECTING

€ 92.00

9

0916024027
ref: 9

WASHER(24X38.5X1.5)

€ 19.50

10

1221105D00
ref: 10

PIN,CRANK

€ 33.00

11

0926324026
ref: 11

BEARING(24X30X20)

€ 62.50

12

1222028E10
ref: 12

CRANKSHAFT,R

€ 278.00

13

1226029E10
ref: 13

CRANKSHAFT COMP,LEFT

€ 289.00

14

0926228036
ref: 14

BEARING(28X68X18)

€ 101.00

15

0928338018
ref: 15

SEAL,OIL(38X52X8)

€ 19.50

16

0928325083
ref: 16

SEAL,OIL(25X37X6)

€ 5.00

17

1235928E10
ref: 17

SPACER,PRIMARY DRIVE GEAR

€ 15.00

18-1

2111114320
ref: 18-1
MODEL V

GEAR,PRIMARY DRIVE (NT:

€ 46.50

18-2

2111114321
ref: 18-2
MODEL W

GEAR,PRIMARY DRIVE

€ 46.50

19

2114127C11
ref: 19

BOLT,PRIMARY DRIVE GEAR

€ 11.50

20

0916411004
ref: 20

WASHER

€ 6.00

all assemblies
