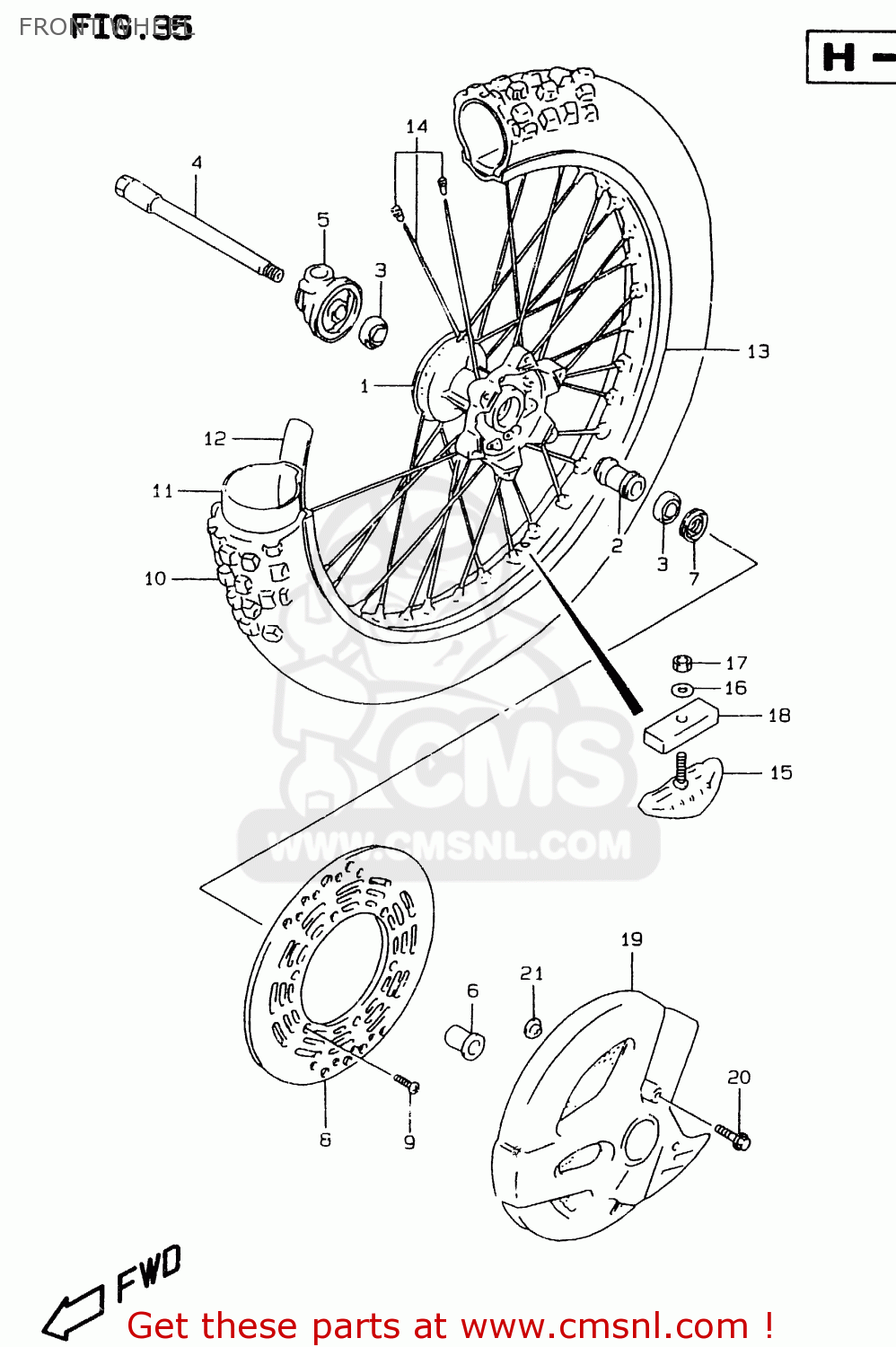

FRONT WHEEL

ref

part #

description

quantity

1

5411105D00
ref: 1

HUB,FRONT WHEEL

€ 161.00

2

5473001B00
ref: 2

SPACER,FR HUB BEARING

€ 34.00

3

0812360037
ref: 3

BEARING

€ 16.50

4

5471105D01
ref: 4

AXLE,FR

€ 52.00

5

5460005D00
ref: 5

BOX ASSY,SPEEDOMETER GEAR

€ 66.00

6

5475105D00
ref: 6

SPACER,FR AXLE,L

€ 12.50

7

0928423001
ref: 7

SEAL,OIL(23X35X6)

€ 5.00

8

5922128C00
ref: 8

DISC,FR BRAKE

€ 193.00

9

0912006011
ref: 9

SCREW

€ 2.50

10

5511028C21
ref: 10

TIRE,FRONT 80/100-21

€ 97.00

11

5520016510
ref: 11

TUBE

€ 32.50

12

5526114540
ref: 12

PROTECTOR,WHEEL INNER

€ 5.00

13

5531127C00
ref: 13

RIM,FRONT WHEEL (1.60X2

€ 322.50

14

5532028E00
ref: 14

SPOKE SET,FR WHEEL

€ 97.00

15

6527014300
ref: 15

STOPPER,BEAD

€ 26.00

16

0832201083
ref: 16

WASHER

€ 1.50

17

0831000083
ref: 17

NUT

€ 1.50

18

6527127C00
ref: 18

CUSHION,BEAD STOPPER

€ 5.50

19-1

5923136E1125Y
ref: 19-1
MODEL V

COVER,FRONT DISC (YELLOW)

€ 39.50

19-2

5923136E111KY
ref: 19-2
MODEL W

COVER,FRONT BRAKE DISC

€ 44.00

20

0911606170
ref: 20

BOLT(6X16)

€ 3.00

21

0916906054
ref: 21

WASHER

€ 2.00

all assemblies
