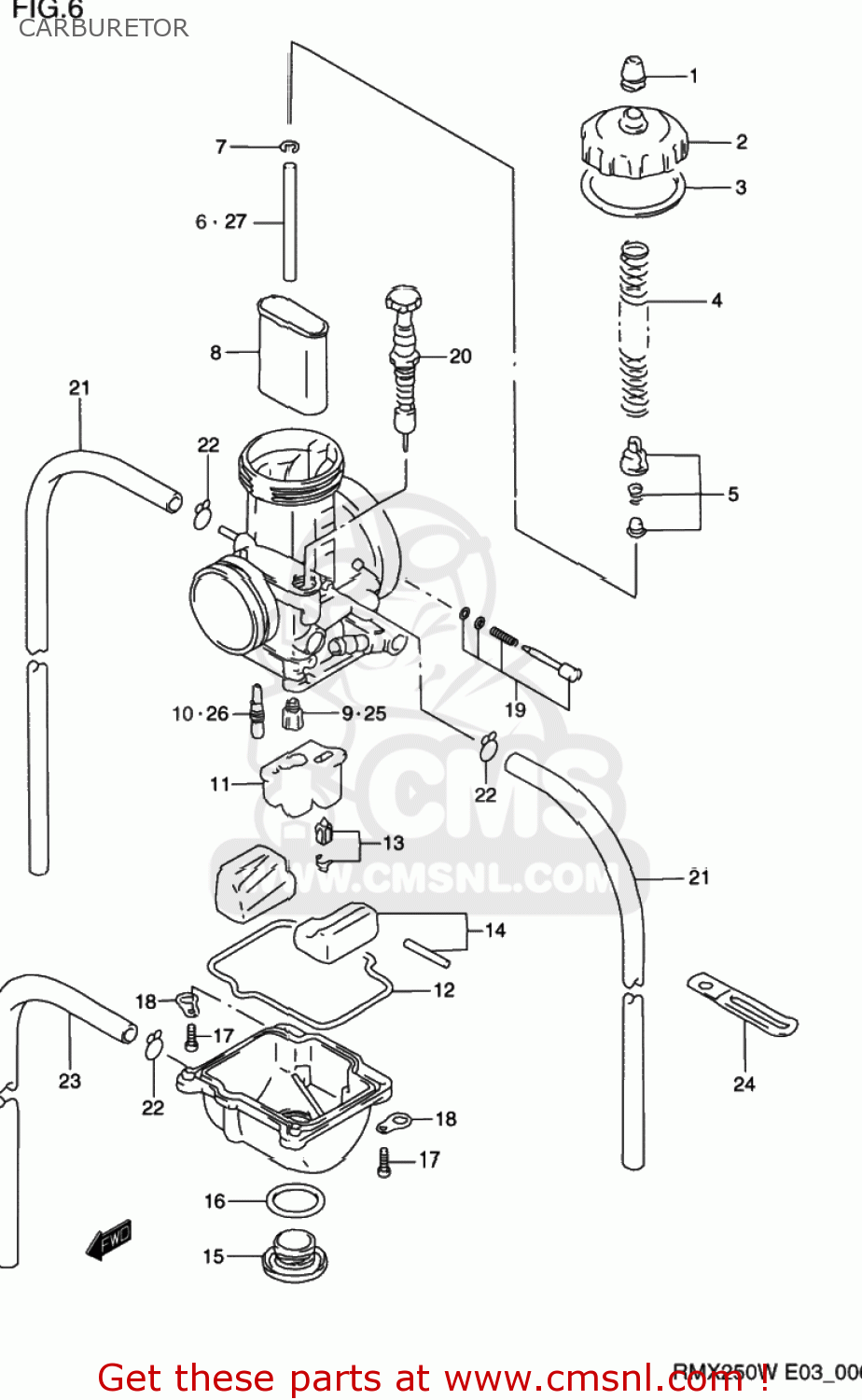

CARBURETOR

ref

part #

description

quantity

1320029E21
ref:

CARBURETOR ASSY

€ 274.00

1

1368128E00
ref: 1

CAP,CARBURETOR

€ 7.00

2

1326128E00
ref: 2

CAP,TOP

€ 43.50

3

1326628E00
ref: 3

GASKET,TOP CAP

€ 7.50

4

1357328E00
ref: 4

SPRING

€ 9.00

5

1358128E00
ref: 5

HOLDER SET,CABLE

€ 17.00

6

1338329E40
ref: 6

NEEDLE,JET(R1472M 1L)

€ 13.00

7

1339428E00
ref: 7

CLIP,NEEDLE

€ 3.50

8

1355129E10
ref: 8

VALVE,PISTON(CA:5.0)

€ 100.50

9

0949133009
ref: 9

JET,MAIN(165)

€ 9.00

10

0949260016
ref: 10

JET,SLOW(60)

€ 12.50

11

1333128E00
ref: 11

HOLDER

€ 8.50

12

1369628E00
ref: 12

GASKET,FLOAT CHAMBER

€ 11.00

13

1337028E00
ref: 13

VALVE SET,FLOAT

€ 36.50

14

1324028E00
ref: 14

FLOAT SET

€ 49.00

15

1324728E00
ref: 15

BOLT,DRAIN

€ 15.00

16

1324628E00
ref: 16

O RING

€ 3.50

17

0211234163
ref: 17
02112-3416B

SCREW

€ 3.00

18

1369328E00
ref: 18

PLATE

€ 4.50

19

1328028E00
ref: 19

SCREW SET,AIR

€ 15.00

20

1341029E10
ref: 20

PLUNGER ASSY

€ 44.50

21

1368636E00
ref: 21

HOSE(4X7X620)

€ 7.50

22

0940106101
ref: 22

CLIP

€ 2.50

23

0935135653600
ref: 23

HOSE(3.5X6.5X600)

€ 5.50

24

0940406429
ref: 24

CLAMP(L:45)

€ 2.50

25-1

0949129014
ref: 25-1

JET,MAIN(145)

€ 9.00

25-10

0949136008
ref: 25-10

JET,MAIN(180)

€ 15.50

25-11

0949137008
ref: 25-11

JET,MAIN(185)

€ 15.50

25-12

0949138011
ref: 25-12

JET,MAIN(190)

€ 15.50

25-13

0949139001
ref: 25-13

JET,MAIN(195)

€ 12.50

25-14

0949140013
ref: 25-14

JET,MAIN(200)

€ 12.50

25-2

0949129015
ref: 25-2

JET,MAIN(148)

€ 9.00

25-3

0949130018
ref: 25-3

JET,MAIN(150)

€ 13.00

25-4

0949130019
ref: 25-4

JET,MAIN(152)

€ 13.00

25-5

0949131012
ref: 25-5

JET,MAIN(155)

€ 13.00

25-6

0949134010
ref: 25-6

JET,MAIN(170)

€ 12.50

25-7

0949134011
ref: 25-7

JET,MAIN(172)

€ 12.50

25-8

0949135009
ref: 25-8

JET,MAIN(175)

€ 15.50

25-9

0949135010
ref: 25-9

JET,MAIN(178)

€ 15.50

26-1

0949250023
ref: 26-1

JET,SLOW(50)

€ 11.50

26-2

0949255017
ref: 26-2

JET,SLOW(55)

€ 11.50

26-3

0949260016
ref: 26-3

JET,SLOW(60)

€ 12.50

26-4

0949265008
ref: 26-4

JET,SLOW(65)

€ 12.00

26-5

0949270009
ref: 26-5

JET,SLOW(70)

€ 8.50

27-1

1338029E10
ref: 27-1

NEEDLE SET,JET

€ 44.50

27-1

1338029E10
ref: 27-1

NEEDLE SET,JET

€ 44.50

27-2

1338029E20
ref: 27-2

NEEDLE SET,JET

€ 55.00

27-2

1338029E20
ref: 27-2

NEEDLE SET,JET

€ 55.00

27-2

1338029E20
ref: 27-2

NEEDLE SET,JET

€ 55.00
