HEADLAMP

RMX250 1997 (V) USA (E03)

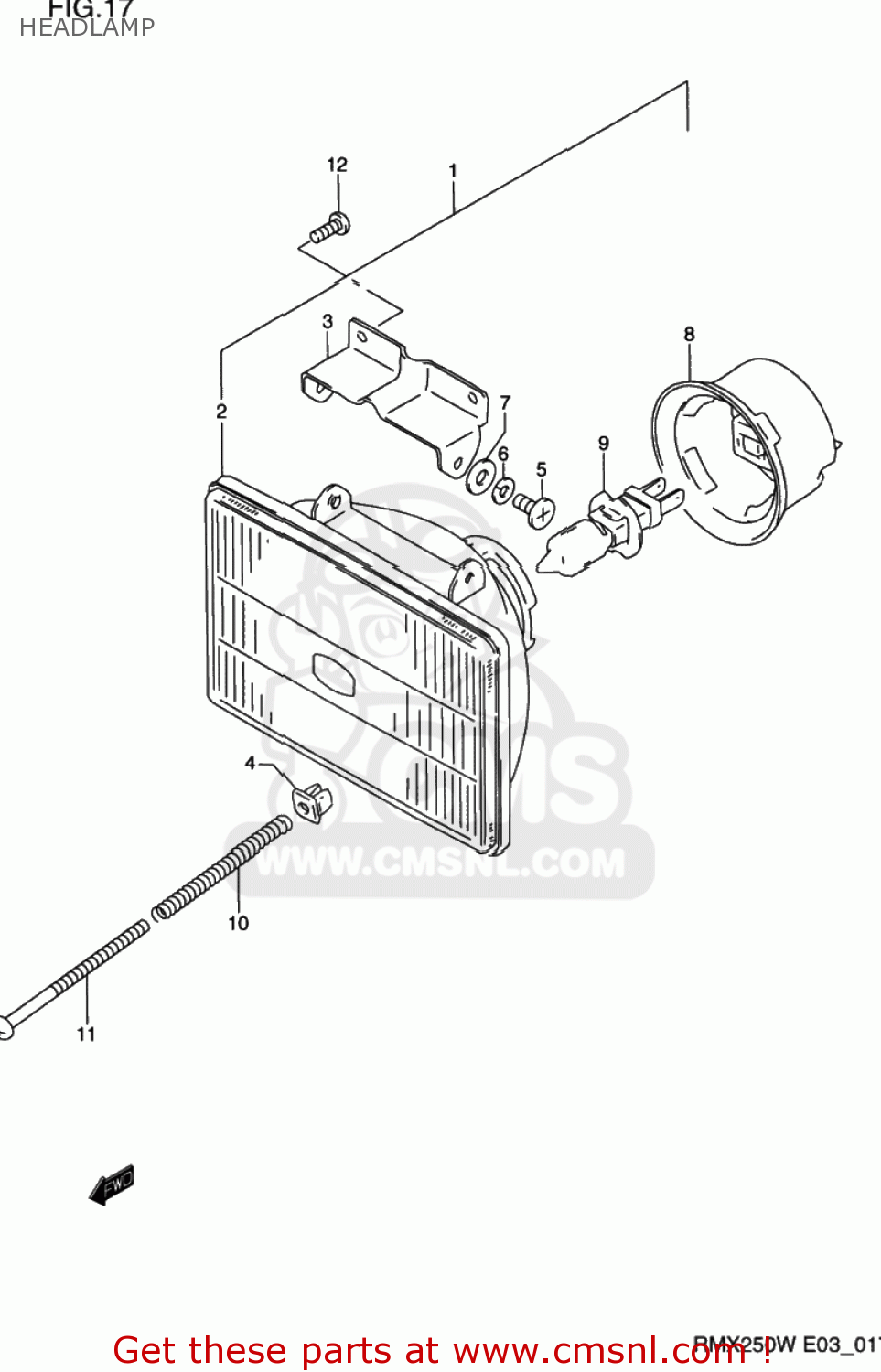

Headlamp diagram RMX250 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510005D00
ref: 1

HEADLAMP ASSY

€ 107.00

3512105D00
ref: 2
35121-05D01

UNIT,LAMP

€ 80.00

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

3513512E20
ref: 4

NUT,ADJUSTING

€ 2.50

3513616700
ref: 5

SCREW

€ 3.00

0832101057
ref: 6
08321-0105A

WASHER,LOCK

€ 2.00

3513805D00
ref: 7

WASHER

€ 1.50

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

0947112160
ref: 9

BULB(12V55W)

€ 24.50

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

0912504501
ref: 11

SCREW(4X45)

€ 3.00

0351104103
ref: 12
03511-0410A

SCREW

€ 1.50
