TAIL LAMP

RMX250 1997 (V) USA (E03)

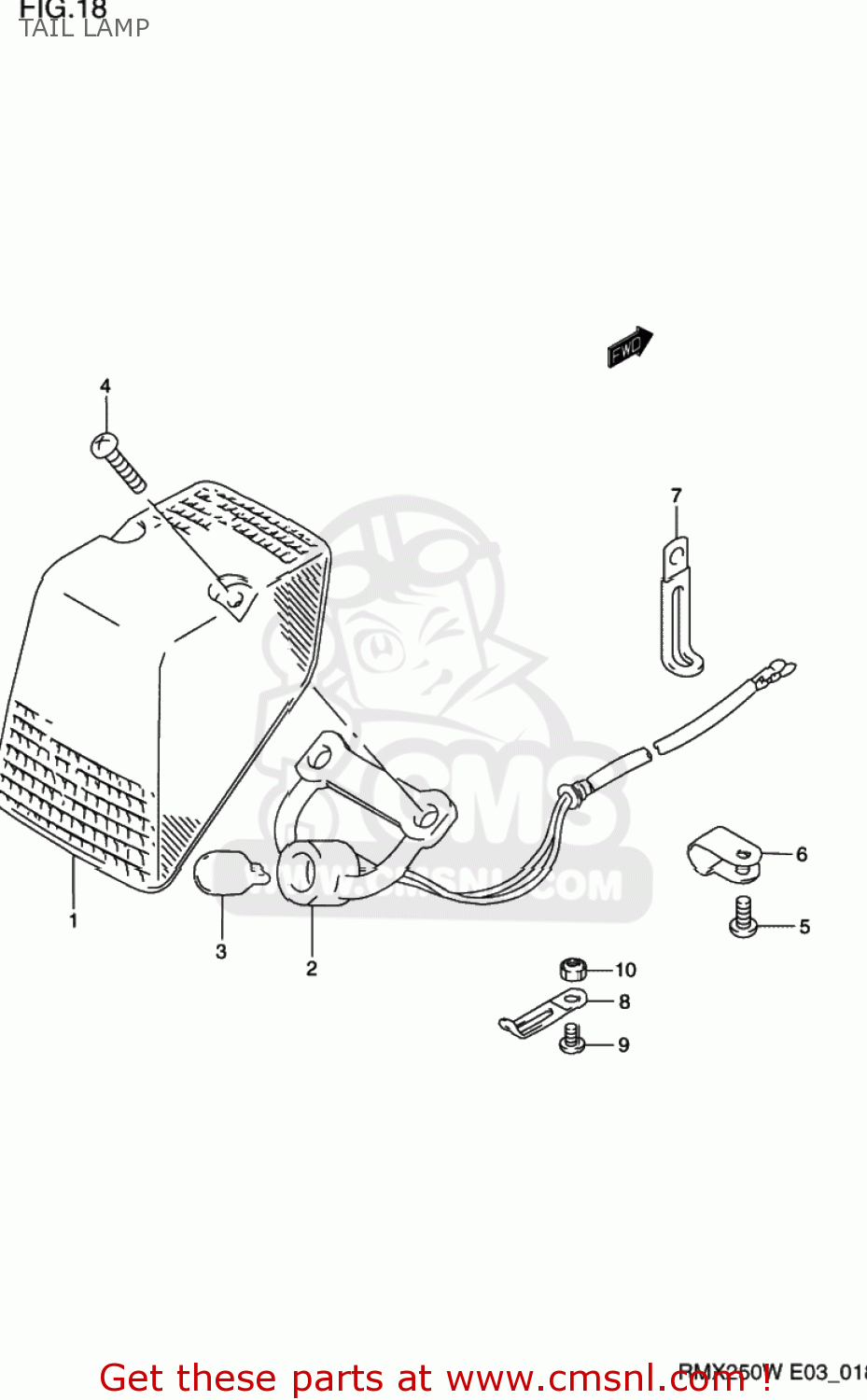

Tail lamp diagram RMX250 1997 (V) USA (E03)

prices are in EUR

ref

part #

description

quantity

3571203D00
ref: 1

LENS

€ 18.50

3571805D00
ref: 2

SOCKET & CORD,RR COMBINATION

€ 36.00

0947112081
ref: 3

BULB(12V5W)

€ 1.50

0351104203
ref: 4
03511-0420B

SCREW

€ 2.00

0351104123
ref: 5
03511-0412A

SCREW, TRUNK BOX

€ 1.50

0940306408
ref: 6

CLAMP

€ 2.50

0940408417
ref: 7
09404-08205

CLAMP L:62

€ 3.00

0940406429
ref: 8

CLAMP(L:45)

€ 2.50

0214206103
ref: 9
02142-0610A

SCREW 6X10

€ 2.00

0831921068
ref: 10
08319-2106A

NUT 6MM

€ 2.00
