CRANKCASE COVER
RMX250 1997 (V) USA (E03)

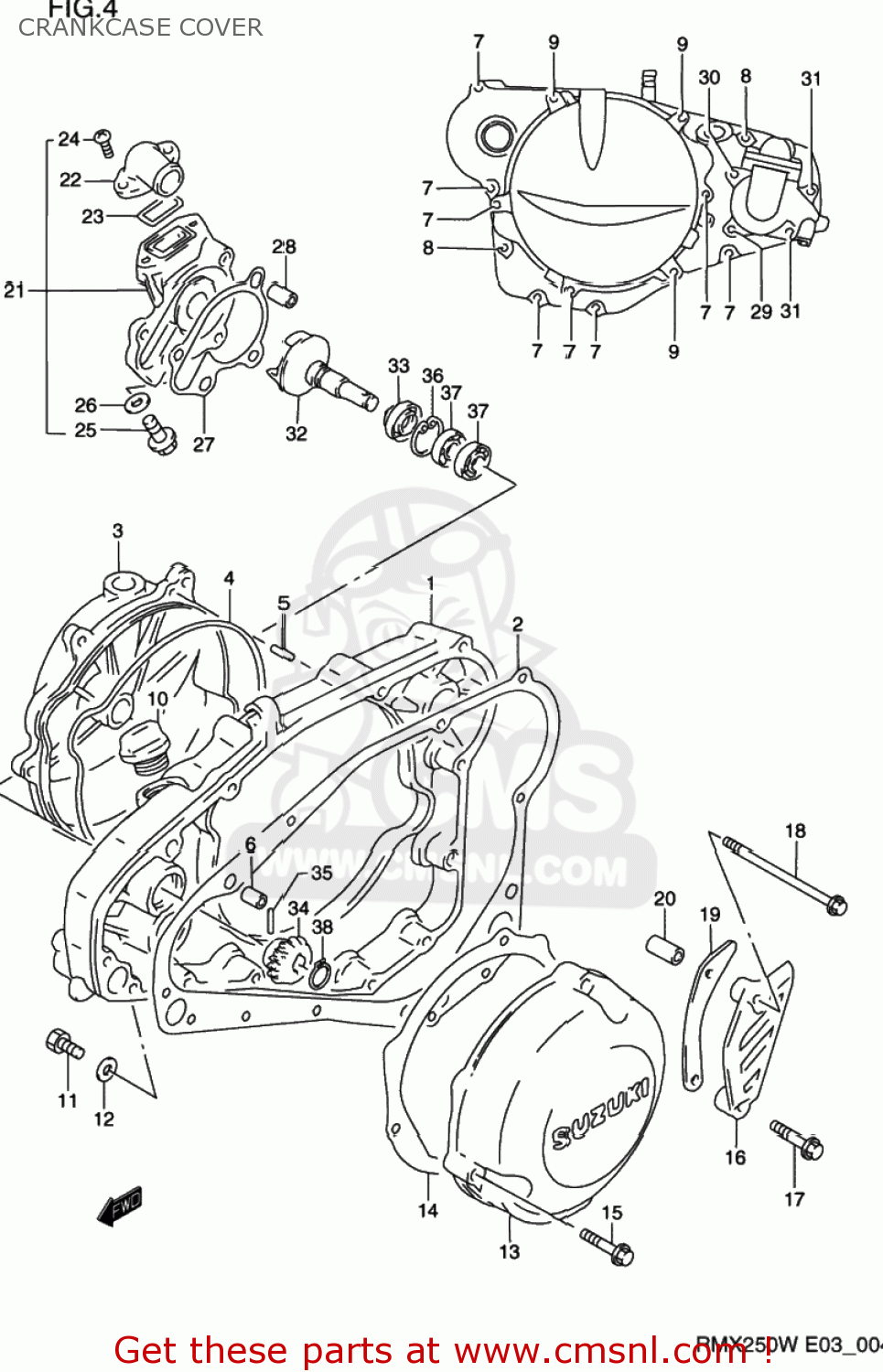

Crankcase cover diagram RMX250 1997 (V) USA (E03)
CRANKCASE COVER RMX250 1997 (V) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134028811
ref: 1
COVER,CLUTCH
€ 175.50
2
1148228C01
ref: 2
GASKET,CLUTCH COVER (NAS)
€ 15.00
3
1137128E02
ref: 3
COVER,CLUTCH OUTER
€ 339.50
4
1148428C10
ref: 4
O RING,CLUTCH COVER OUTER
€ 18.50
5
0422104089
ref: 5
PIN
€ 1.50
6
0421109129
ref: 6
PIN
€ 2.00
7
0154706253
ref: 7
01547-0625B
SCREW
€ 2.50
8
0154706353
ref: 8
01547-0635B
BOLT
€ 3.00
9
0154706703
ref: 9
01547-0670B
BOLT
€ 3.00
10
0920020810
ref: 10
PLUG SET
€ 8.00
11
0912806004
ref: 11
09128-06044
SCREW(6X10)
€ 1.50
12
0916806004
ref: 12
GASKET(6.2X11X1).2 (NAS)
€ 1.50
13
1135105D12
ref: 13
COVER,MAGNETO
€ 184.50
14
1148328C10
ref: 14
GASKET,MAGNETO COVER (NAS)
€ 6.50
15
0154706253
ref: 15
01547-0625B
SCREW
€ 2.50
16
1136028E00
ref: 16
COVER,ENGINE SPROCKET
€ 28.00
17
0154706253
ref: 17
01547-0625B
SCREW
€ 2.50
18
0154706953
ref: 18
01547-0695B
BOLT
€ 3.50
19-1
2764128C10
ref: 19-1
PLATE,FR CHAIN GUIDE(13T)
€ 8.50
19-2
2764128C20
ref: 19-2
PLATE,FR CHAIN GUIDE(15T)
€ 8.00
20
0918006203
ref: 20
SPACER(6.5X10.5X25)
€ 3.50
21
1741028E00
ref: 21
CASE ASSY,WATER PUMP
€ 93.50
22
1741228E00
ref: 22
CONNECTOR
€ 23.50
23
1741414300
ref: 23
O RING,WATER PUMP CONNECTOR
€ 3.00
24
0211206164
ref: 24
02112-0616A
SCREW
€ 2.00
25
1741543D00
ref: 25
BOLT
€ 3.00
26
1741328C10
ref: 26
WASHER
€ 1.50
27
1743128C10
ref: 27
GASKET,WATER PUMP CASE (NAS)
€ 10.00
28
0421109129
ref: 28
PIN
€ 2.00
29
0154706203
ref: 29
01547-0620B
SCREW
€ 2.50
30
0154706303
ref: 30
01547-0630B
BOLT,G/S SWITC
€ 3.00
31
0154706803
ref: 31
01547-0680B
BOLT
€ 3.50
32
1749128C10
ref: 32
IMPELLER,WATER PUMP
€ 39.00
33
1746128C10
ref: 33
17461-03B00
SEAL,WATER PUMP OIL
€ 7.00
34
1744128C11
ref: 34
GEAR,WATER PUMP DRIVEN(NT:24)
€ 25.00
35
0926103010
ref: 35
PIN(3X13.8)
€ 3.00
36
0833141246
ref: 36
08331-41249
CIRCLIP
€ 2.50
37
0811369000
ref: 37
BEARING
€ 23.50
38
0833131106
ref: 38
08331-3110A
CIRCLIP,10MM
€ 2.00
