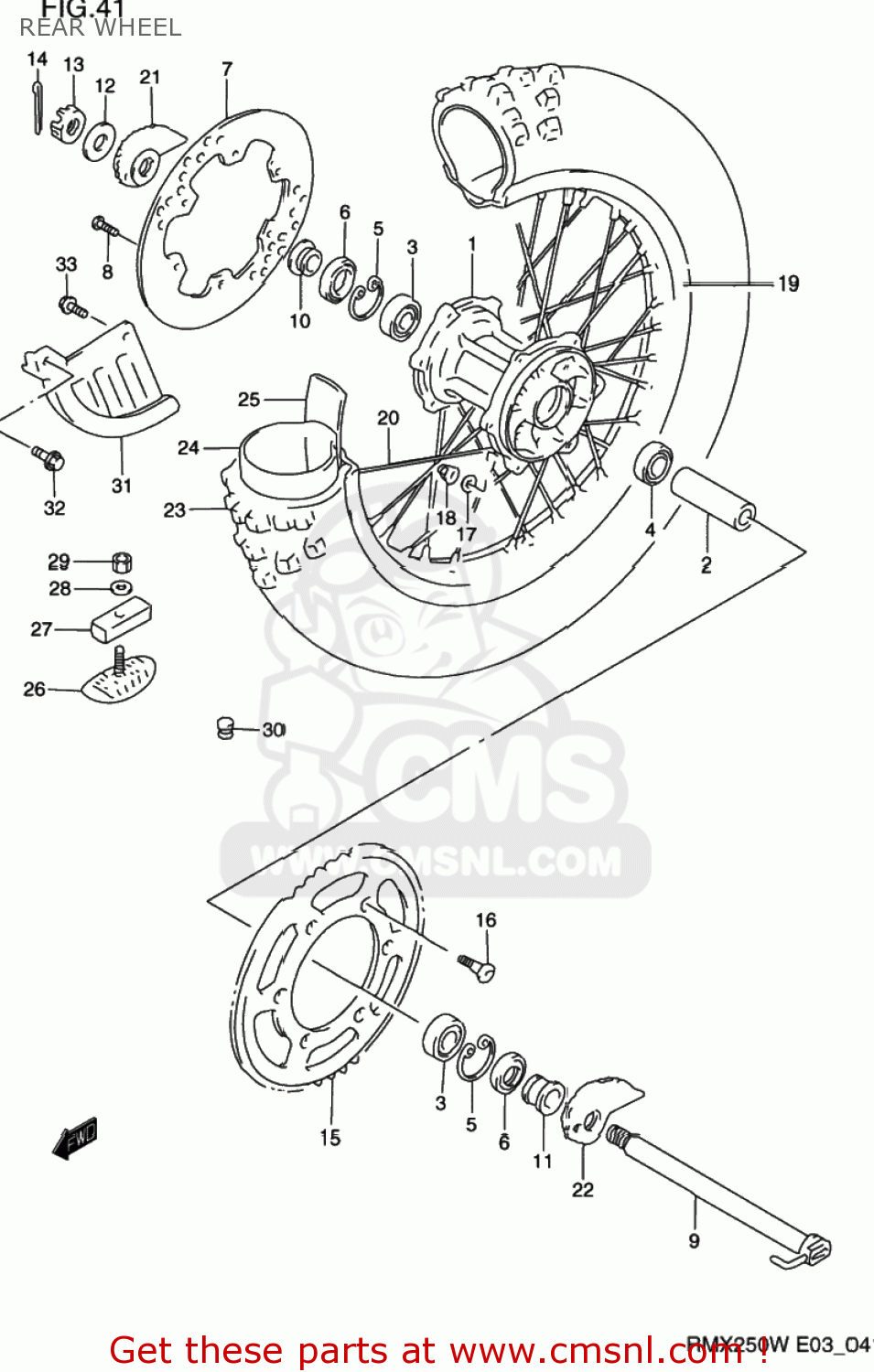

REAR WHEEL

ref

part #

description

quantity

1

6411028C01
ref: 1

HUB,RR

€ 352.00

2

6473100B30
ref: 2

SPACER,RR HUB BEARING

€ 15.50

3

0813362047
ref: 3

BEARING WHEEL REAR(20X47X14)

€ 22.50

4

0812360047
ref: 4
08133-60047

BALL BEARING

€ 21.00

5

0833141478
ref: 5
08331-41479

CIRCLIP,14MM

€ 2.50

6

0928326019
ref: 6

SEAL,OIL(26X47X5)

€ 9.50

7

6921143D00
ref: 7

DISC,RR BRAKE

€ 160.00

8

0912006011
ref: 8
09120-06014

SCREW

€ 2.50

9

6471005D00
ref: 9

AXLE,RR

€ 73.00

10

6474105D00
ref: 10

SPACER,RR AXLE,R

€ 9.00

11

6475105D00
ref: 11

SPACER,RR AXLE,L

€ 15.00

12

0916019022
ref: 12

WASHER(19X32X3.2)

€ 5.00

13

0831440183
ref: 13
08314-4018A

NUT

€ 4.50

14

0411140308
ref: 14
04111-4030A

PIN,COTTER

€ 1.50

15

6451100B12
ref: 15

SPROCKET,RR(NT:50)

€ 86.00

16

0912008004
ref: 16

SCREW(8X33.5)

€ 3.00

17

0916408011
ref: 17

WASHER

€ 3.50

18

0831931087
ref: 18

NUT

€ 2.50

19

6531128C00
ref: 19
65311-28C01

RIM,REAR WHEEL (2.15X18)(A

€ 351.50

20

6532026C00
ref: 20

SPOKE ASSY,RR WHEEL

€ 94.00

21

6141005D00
ref: 21

ADJUSTER,CHAIN,R

€ 13.50

22

6142005D00
ref: 22

ADJUSTER,CHAIN,L

€ 26.50

23

6510005D00
ref: 23

TIRE,REAR 110/100-18

€ 0.00

23

6510005D00
ref: 23

TIRE,REAR 110/100-18

€ 0.00

24

6520029E10
ref: 24

TUBE ASSEMBLY,WHEEL,INNER

€ 0.00

25

5526111010
ref: 25

PROTECTOR,INNER TUBE

€ 3.50

26

6527028E00
ref: 26

STOPPER,BEAD(2.15)

€ 38.00

27

6527127C00
ref: 27

CUSHION,BEAD STOPPER

€ 5.50

28

0832201083
ref: 28
08322-0108A

WASHER

€ 1.50

29

0831000083
ref: 29
08310-0008A

NUT

€ 1.50

30

0925008013
ref: 30

CAP(OD:12)

€ 2.00

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

32

0155006203
ref: 32
01550-0620A

BOLT

€ 2.50

33

0155006123
ref: 33
01550-0612A

BOLT

€ 2.50
