ELECTRICAL

RMX250 1998 (W) USA (E03)

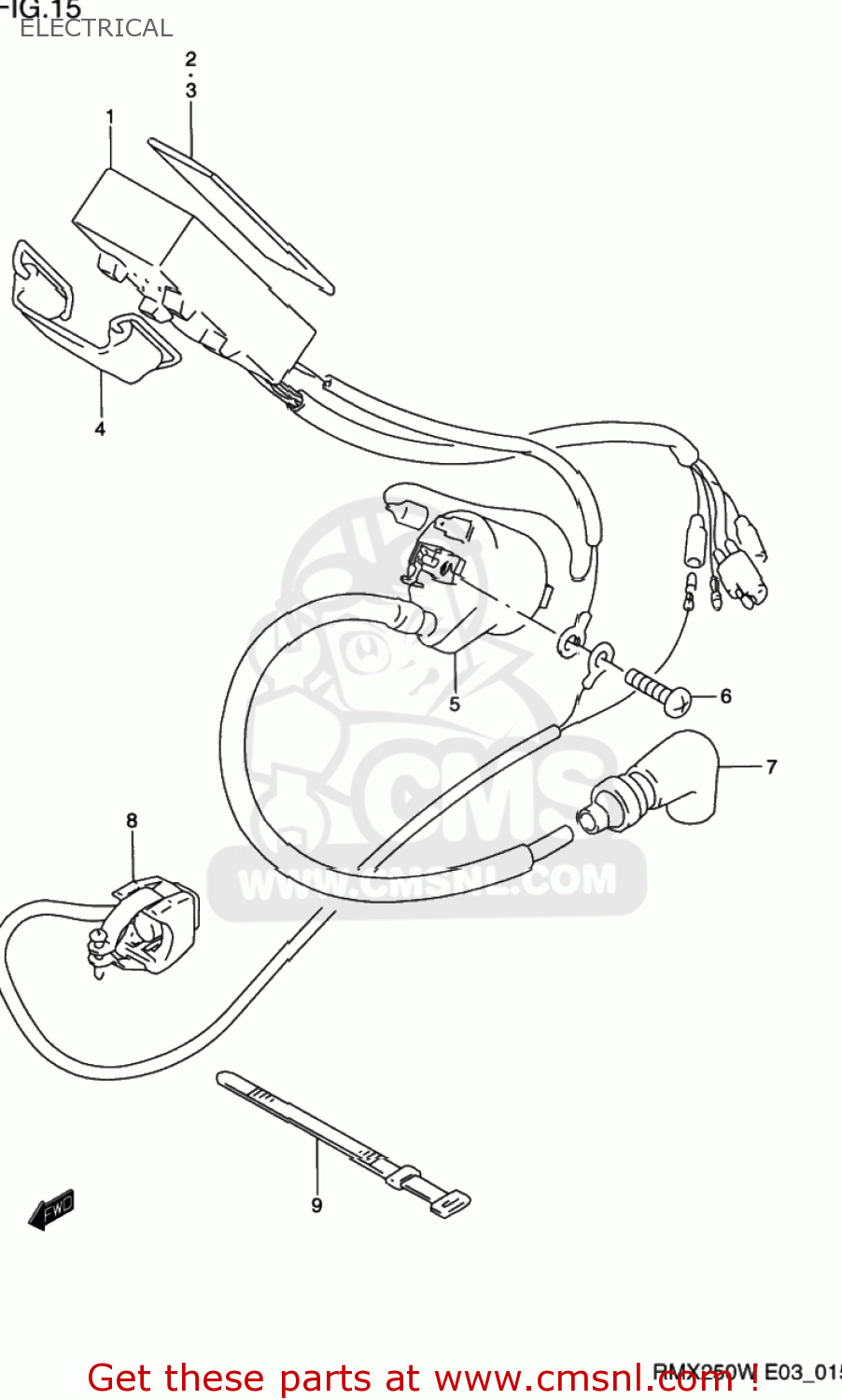

Electrical diagram RMX250 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

3290005D01
ref: 1

CDI UNIT

€ 447.50

3365137000
ref: 2

PROTECTOR(170X95X3.0)

€ 5.00

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

3294214111
ref: 4

BAND(L:65)

€ 8.00

3341012C00
ref: 5

COIL ASSY,IGNITION NO.1

€ 123.00

0211206203
ref: 6
02112-0620A

SCREW, 6X20

€ 2.00

3351020A01
ref: 7
33510-20A02

CAP,SPARK PLUG

€ 23.00

3782014X50
ref: 8

SWITCH ASSY,ENGINE STOP

€ 24.50

0940712402
ref: 9

CLAMP(L:120)

€ 3.00
