LEFT HANDLE LEVER
RMX250 1998 (W) USA (E03)

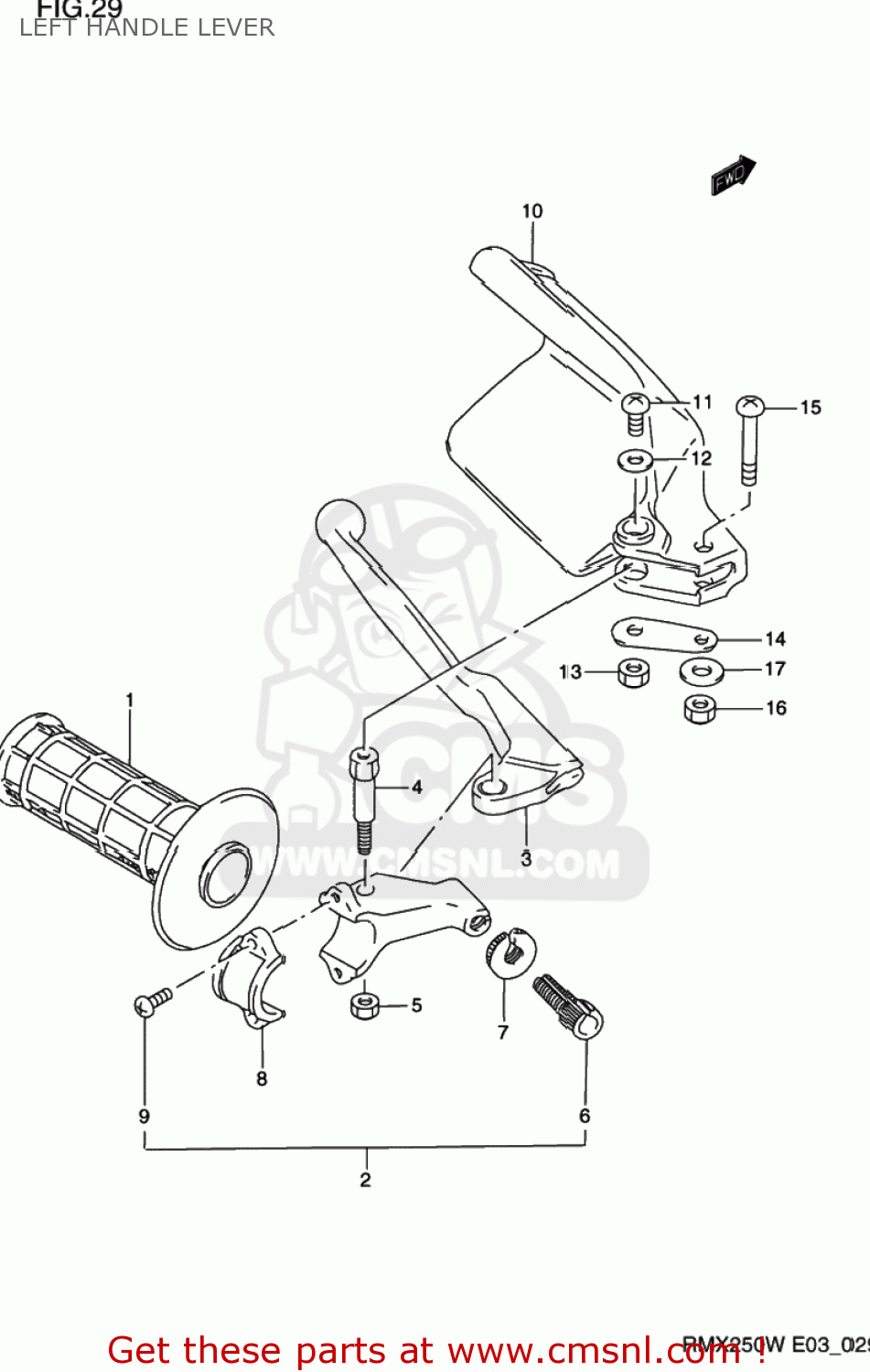

Left handle lever diagram RMX250 1998 (W) USA (E03)
LEFT HANDLE LEVER RMX250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721127C00
ref: 1
GRIP,L
€ 11.00
2
5750005D00
ref: 2
LEVER ASSY,CLUTCH
€ 50.50
3
5762014300
ref: 3
LEVER,CLUTCH
€ 26.00
4
5763105D00
ref: 4
BOLT,LEVER SET
€ 7.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5744126010
ref: 6
ADJUSTER,CABLE
€ 4.00
7
5744205D00
ref: 7
NUT,LOCK
€ 7.50
8
5751214300
ref: 8
BRACKET,CLUTCH LEVER HOLDER
€ 32.00
9
0912505102
ref: 9
SCREW(5X14)
€ 2.50
10-1
5754105D0130H
ref: 10-1
COVER,KNUCKLE,L
€ 31.00
10-2
5754105D01019
ref: 10-2
COVER,KNUCKLE,L
€ 29.50
11
0214205107
ref: 11
SCREW
€ 2.50
12-1
0916005017
ref: 12-1
09160-05043
WASHER (5.5X16X1.2)
€ 2.50
12-2
0916005043
ref: 12-2
WASHER(5.5X16X1.2)
€ 2.50
13
0831921068
ref: 13
08319-2106A
NUT 6MM
€ 2.00
14
5754205D00
ref: 14
PLATE,KNUCKLE COVER,L LWR
€ 3.50
15
0912506091
ref: 15
SCREW(6X35)
€ 2.50
16
0831921068
ref: 16
08319-2106A
NUT 6MM
€ 2.00
17-1
0916006042
ref: 17-1
09160-06130
WASHER (6.5X17X1.6)
€ 2.00
17-2
0916006130
ref: 17-2
WASHER(6.5X16X1.6)
€ 2.00
