WIRING HARNESS

RMX250 1998 (W) USA (E03)

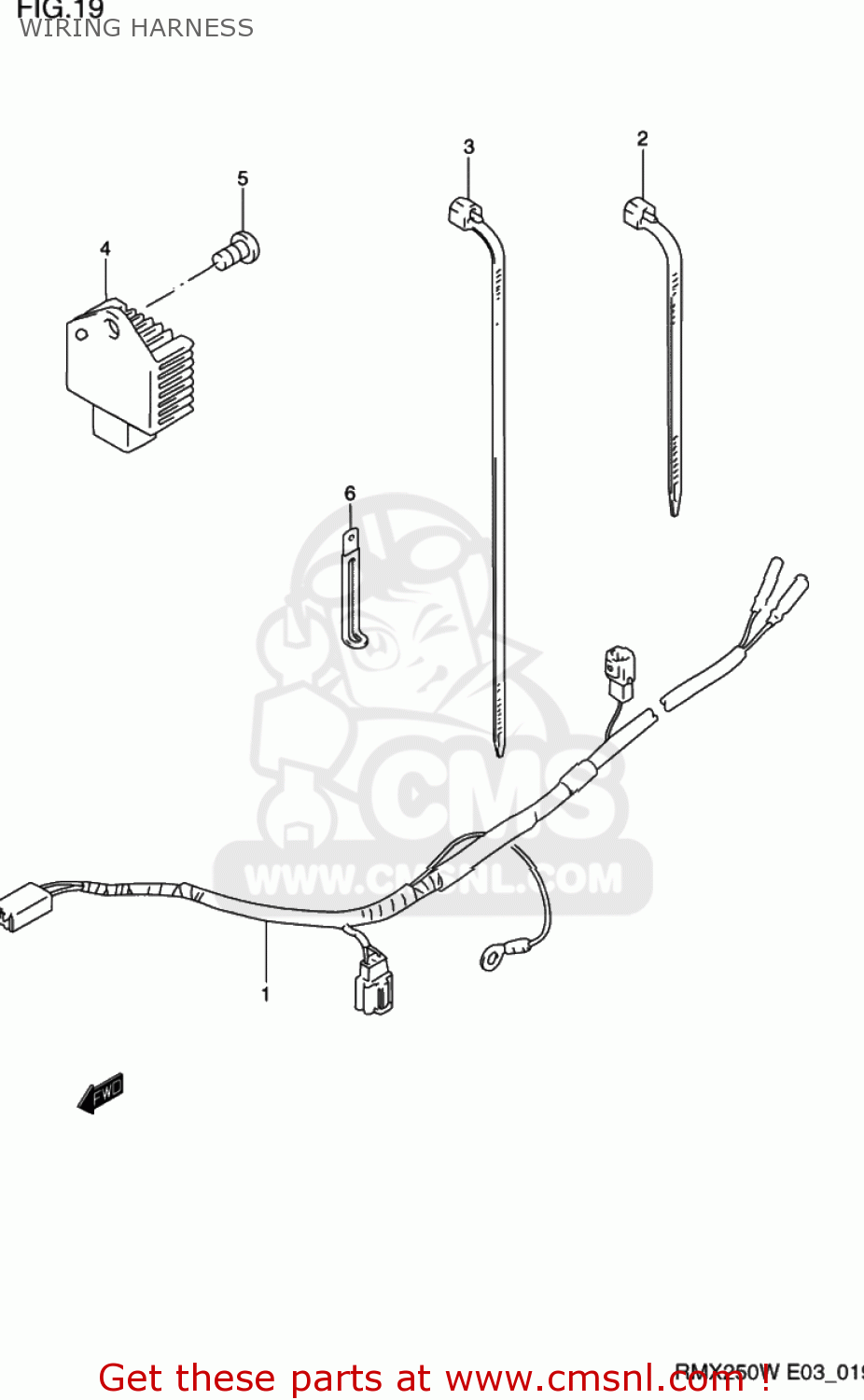

Wiring harness diagram RMX250 1998 (W) USA (E03)

WIRING HARNESS RMX250 1998 (W) USA (E03)

WIRING HARNESS RMX250 1998 (W) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3661005D11
ref: 1

HARNESS,WIRING

€ 37.50

2-1

0940714403
ref: 2-1

CLAMP(L:125)

€ 2.50

2-2

0940711401
ref: 2-2

CLAMP(L:95)

€ 2.50

3

0940725401
ref: 3

CLAMP(L:235)

€ 4.00

4

3250014D00
ref: 4

REGULATOR ASSY

€ 99.00

5

0211216123
ref: 5
02112-1612B

SCREW

€ 2.00

6

0940406432
ref: 6

CLAMP(L:65)

€ 2.50
