STAND - FOOTREST
RMX250 1998 (W) USA (E03)

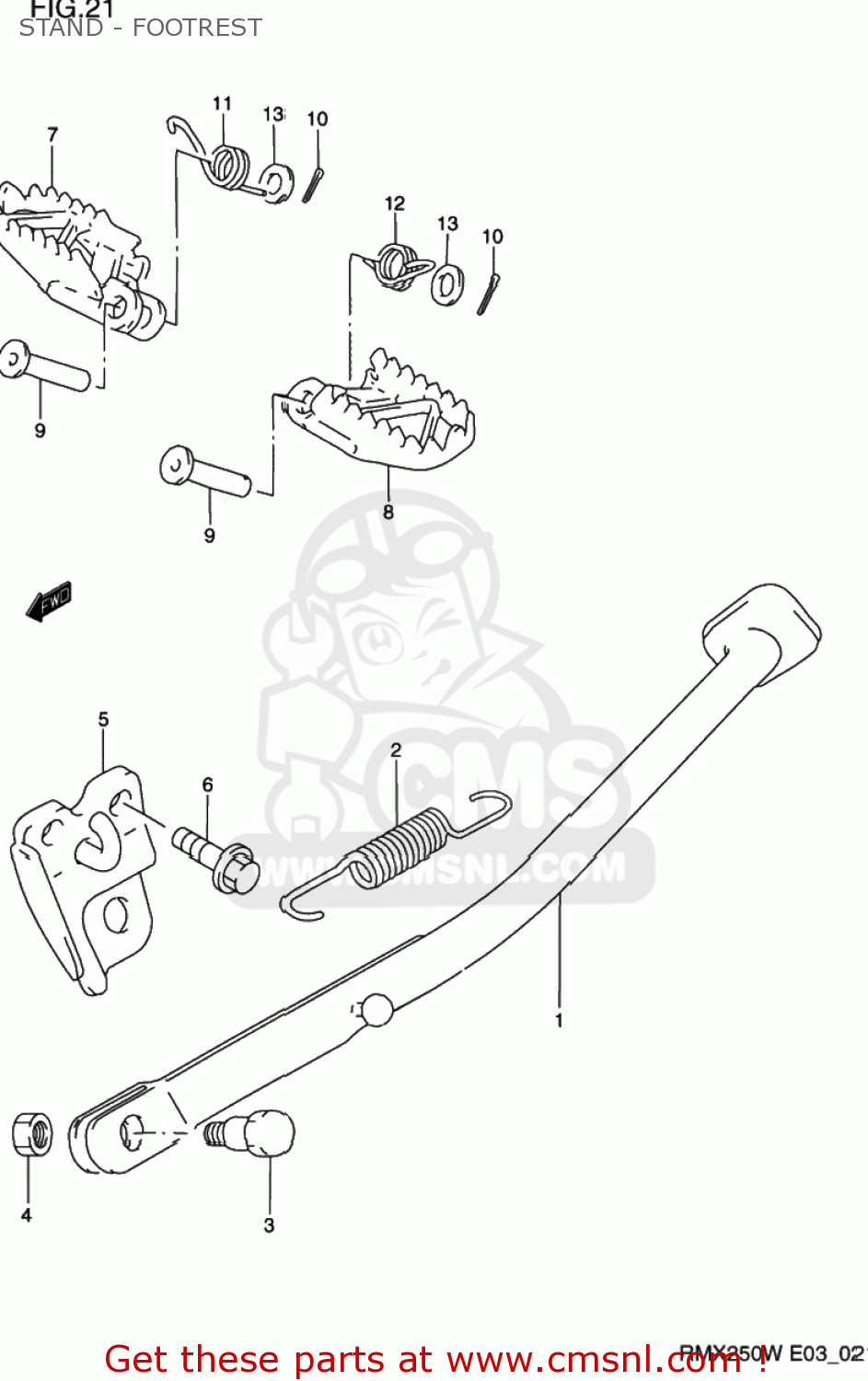

Stand - footrest diagram RMX250 1998 (W) USA (E03)
STAND - FOOTREST RMX250 1998 (W) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231029E1013L
ref: 1
STAND,PROP(SILVER)
€ 295.00
2
0944317015
ref: 2
09443-17015-XC0
SPRING
€ 7.00
3
0911110046
ref: 3
09111-10046-XC0
BOLT(10X30)
€ 2.50
4
0831921103
ref: 4
08319-2110A
NUT
€ 2.00
5
4233029E0113L
ref: 5
BRACKET,PROP STAND
€ 50.50
6
0910310275
ref: 6
BOLT(10X25)
€ 5.00
7
4355128E10
ref: 7
FOOTREST,R
€ 63.00
8
4356128E10
ref: 8
FOOTREST,L
€ 47.00
9
0920010019
ref: 9
PIN(10X41.5)
€ 6.00
10
0411125208
ref: 10
04111-2520A
PIN 25X20
€ 2.00
11
0944818030
ref: 11
SPRING
€ 5.00
12
0944818029
ref: 12
SPRING
€ 5.00
13
0832201103
ref: 13
08322-0110A
WASHER
€ 2.50
