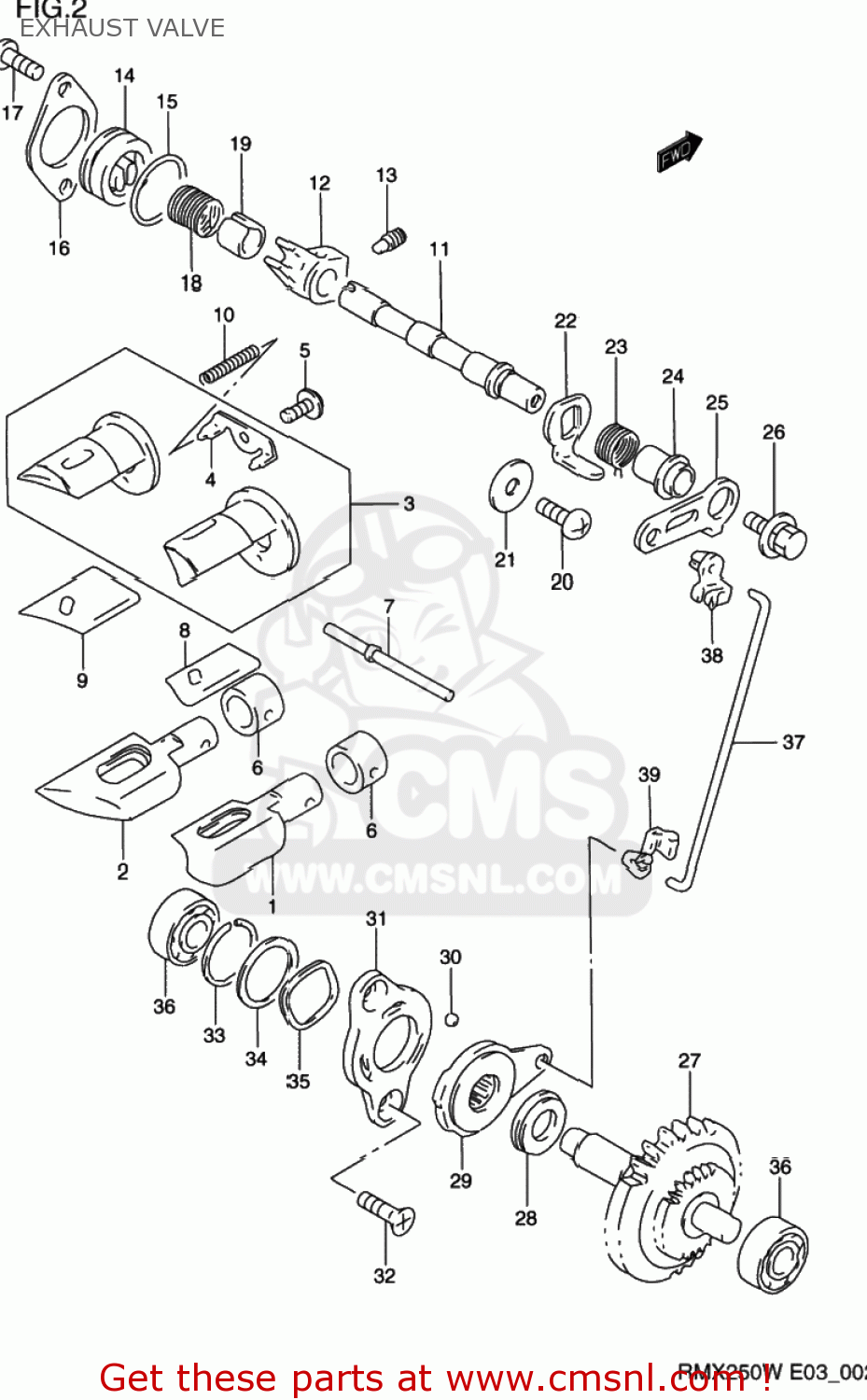

EXHAUST VALVE

ref

part #

description

quantity

1

1125429E20
ref: 1

VALVE,EXHAUST,LOWER,RIGHT

€ 161.00

2

1125529E20
ref: 2

VALVE,EXHAUST LOW,L

€ 161.00

3

1126029810
ref: 3

GUIDE SET,EXHAUST VALVE

€ 289.00

4

1125228C11
ref: 4

STOPPER,EXHAUST VALVE NO.2

€ 7.50

5

0214205123
ref: 5
02142-0512A

SCREW 5X12

€ 1.50

6

1126329E00
ref: 6

SPACER,EXHAUST VALVE

€ 13.50

7

1125301B32
ref: 7

PIN,EXHAUST VALVE 48.5MM

€ 20.50

8

1128029E11
ref: 8

VALVE,EXHAUST MIDDLE,R

€ 89.50

9

1129029E11
ref: 9

VALVE,EXHAUST MIDDLE,L

€ 79.00

10

0944003010
ref: 10

SPRING

€ 4.00

11

1125928C00
ref: 11
11259-28C01

SHAFT,EXHAUST VALVE

€ 50.50

12

1126400B23
ref: 12
11264-00B24

ARM,EXHAUST VALVE SHAFT

€ 17.00

13

0913406013
ref: 13

SCREW(6X10)

€ 4.50

14

1125827C01
ref: 14

CAP,EXHAUST VALVE

€ 52.00

15

0928023002
ref: 15

O RING(D:1.9,ID:22.6)

€ 2.50

16

1126500B21
ref: 16
11265-00B22

RETAINER,EXHAUST VALVE

€ 2.50

17

0216205123
ref: 17
02162-0512A

BOLT

€ 2.00

18

0944416005
ref: 18

SPRING

€ 4.00

19

1126900B20
ref: 19

SPACER,EXHAUST VALVE SPRING

€ 19.00

20

0154706103
ref: 20
01547-0610B

BOLT

€ 3.00

21

0821106202
ref: 21

WASHER

€ 2.00

22

1126700B21
ref: 22

LEVER,EXHAUST VALVE NO.2

€ 5.50

23

0944415010
ref: 23

SPRING

€ 5.50

24

1126801B00
ref: 24
11268-01B01

SPACER,EXHAUST VALVE

€ 8.50

25

1126628C10
ref: 25

LEVER,EXHAUST VALVE NO.1

€ 22.50

26

0911805005
ref: 26

BOLT(5X12)

€ 4.00

27

1267029E10
ref: 27
12670-29E11

GOVERNOR ASSEMBLY,EXHAUST

€ 97.00

28

0926310002
ref: 28

BEARING(10X22X2.8)

€ 8.50

29

1268001820
ref: 29

ACTUATOR,EXHAUST VALVE

€ 47.50

30

0611106003
ref: 30

BALL

€ 1.50

31

1268200B20
ref: 31

STARTER,EXHAUST VALVE ACTUATOR

€ 25.00

32

0912005003
ref: 32

SCREW(5X10)

€ 2.00

33

0938019003
ref: 33

CIRCLIP

€ 2.50

34

0918119004
ref: 34

SHIM(19.1X25X0.3)

€ 4.00

35

0916419001
ref: 35

WASHER

€ 7.00

36

0926208005
ref: 36

BEARING(8X22X7)

€ 12.50

37

1268528C10
ref: 37

ROD,EXHAUST VALVE

€ 6.00

38

1268601B00
ref: 38

BUSH,EXHAUST VALVE ROD NO.1

€ 2.00

39

1268701B00
ref: 39

BUSH,EXHAUST VALVE ROD NO.2

€ 2.00
