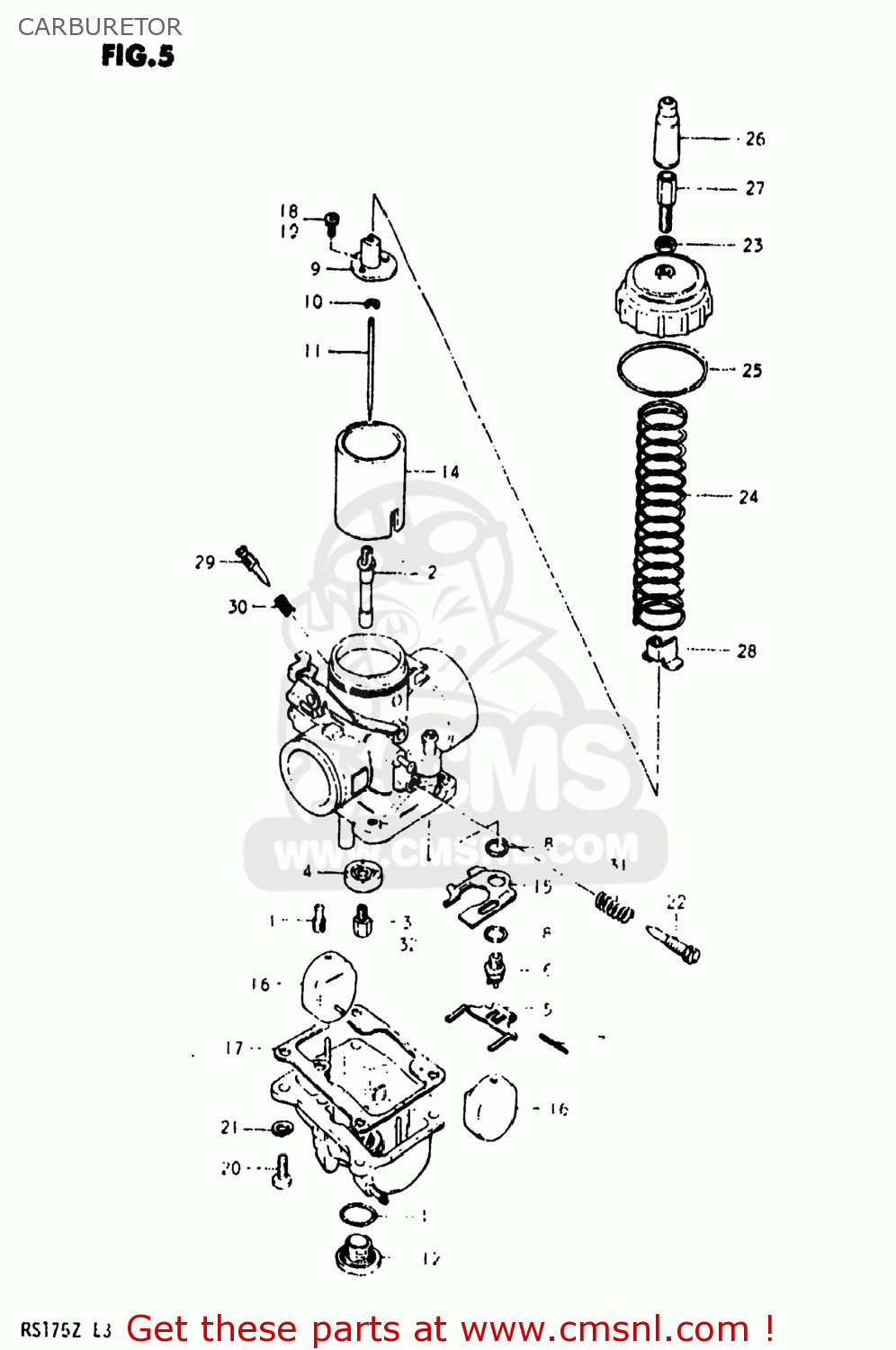

CARBURETOR

ref

part #

description

quantity

0

1320041530
ref: 0

CARBURETOR ASSEMBLY

€ 143.50

1

0949230003
ref: 1
09492-30006

JET

€ 8.50

2

0949400296
ref: 2

JET,NEEDLE

€ 0.00

3

0949130003
ref: 3
09491-30017

JET

€ 12.00

4

1333140200
ref: 4

RING,MAIN JET FIXING

€ 8.00

5

1325340200
ref: 5

ARM,FLOAT

€ 10.00

6

1337016600
ref: 6

VALVE ASSY,NEEDLE

€ 45.00

7

1325401010
ref: 7

PIN,FLOAT

€ 3.00

8

1339216600
ref: 8

GASKET,MAIN JET HOLDER (NAS)

€ 3.00

9

1358140200
ref: 9

CONNECTOR

€ 7.00

10

1339410010
ref: 10

CLIP

€ 4.50

11

1338341530
ref: 11

NEEDLE JET

€ 0.00

12

1324740200
ref: 12

PLUG

€ 9.50

13

1324941320
ref: 13
13249-41310

GASKET,DRAIN PLUG

€ 5.00

14

1355140200
ref: 14

VALVE,THROTTLE

€ 50.00

15

1325940200
ref: 15

PLATE

€ 0.00

16

1325216600
ref: 16

FLOAT

€ 17.50

17

1325130110
ref: 17

GASKET,FLOAT CAHMBER (NAS)

€ 8.50

18

0211203068
ref: 18
02112-0306B

SCREW

€ 2.00

19

0832121038
ref: 19
09162-03001

LOCK WASHER

€ 1.50

20

0211205168
ref: 20
02112-05167

SCREW

€ 2.50

21

0832121058
ref: 21
08321-0105A

LOCK WASHER

€ 2.00

22

1326715110
ref: 22
13267-40230

ADJUSTER

€ 7.50

23

1366116600
ref: 23

NUT

€ 5.00

24

1357341610
ref: 24

SPRING,THROTTLE VALVE RETURN

€ 8.50

25

1326640200
ref: 25

O-RING,MIXING CHAMBER

€ 0.00

26

1368116601
ref: 26

CAP

€ 7.00

27

1357703010
ref: 27
13577-48110

ADJUSTER,CABLE

€ 8.00

28

1362940200
ref: 28

COVER,HOLDER

€ 4.00

29

1326915010
ref: 29

SCREW,PILOT AIR

€ 10.50

30

1326801010
ref: 30

SPRING

€ 3.50

31

1326803110
ref: 31

SPRING,THROTTLE SCREW

€ 3.50

32-1

0949128002
ref: 32-1
09491-28009

JET

€ 6.50

32-2

0949129002
ref: 32-2

JET,MAIN(145)

€ 8.00

32-3

0949131005
ref: 32-3

JET,MAIN(155)

€ 8.00

32-4

0949132002
ref: 32-4

JET,MAIN(160)

€ 6.50

32-5

0949134002
ref: 32-5

JET,MAIN(170)

€ 7.00
