HEADLAMP

RS175 1980 (T) USA (E03)

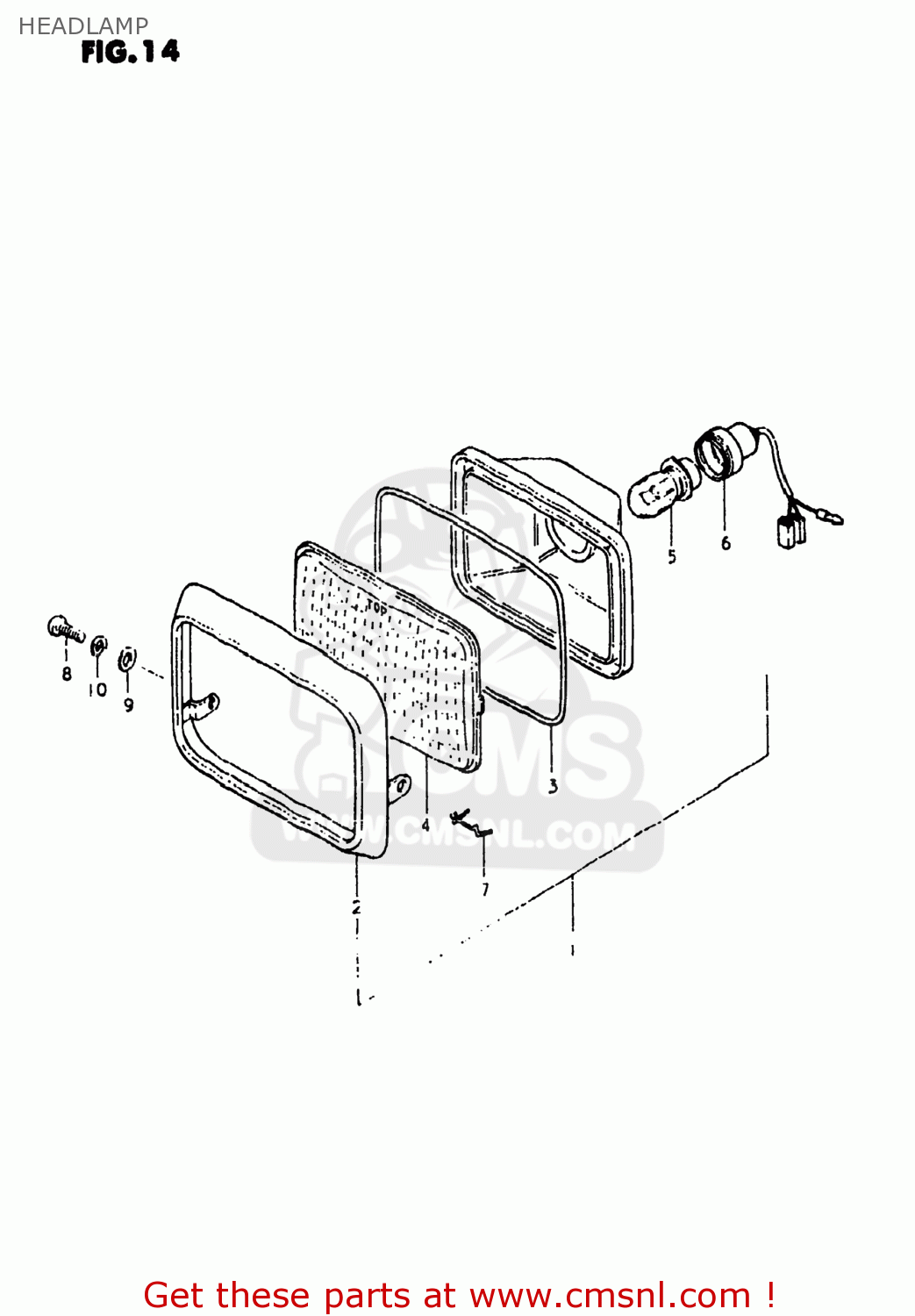

Headlamp diagram RS175 1980 (T) USA (E03)

prices are in EUR

ref

part #

description

quantity

3510032500
ref: 1

LAMP ASSEMBLY,HEAD

€ 41.00

3511132500
ref: 2

RIM,HEADLAMP

€ 10.50

3512532500
ref: 3

GASKET,HEADLAMP LENS (NAS)

€ 3.00

3512432500
ref: 4

LENS,HEADLAMP (PLASTIC)

€ 9.00

0947106022
ref: 5

BULB(6V15/15W/STANLEY,A3598HA)

€ 6.50

3517102400
ref: 6
35171-02402

SOCKET,BULB

€ 8.50

3512832500
ref: 7

SPRING,HEADLAMP UNIT

€ 2.00

0211204128
ref: 8
02112-0412A

SCREW

€ 1.50

0832121048
ref: 9
08321-0104A

LOCK WASHER

€ 2.00

0832221048
ref: 10
08322-01047

WASHER

€ 2.00
