FRONT FORK
RS175 1980 (T) USA (E03)

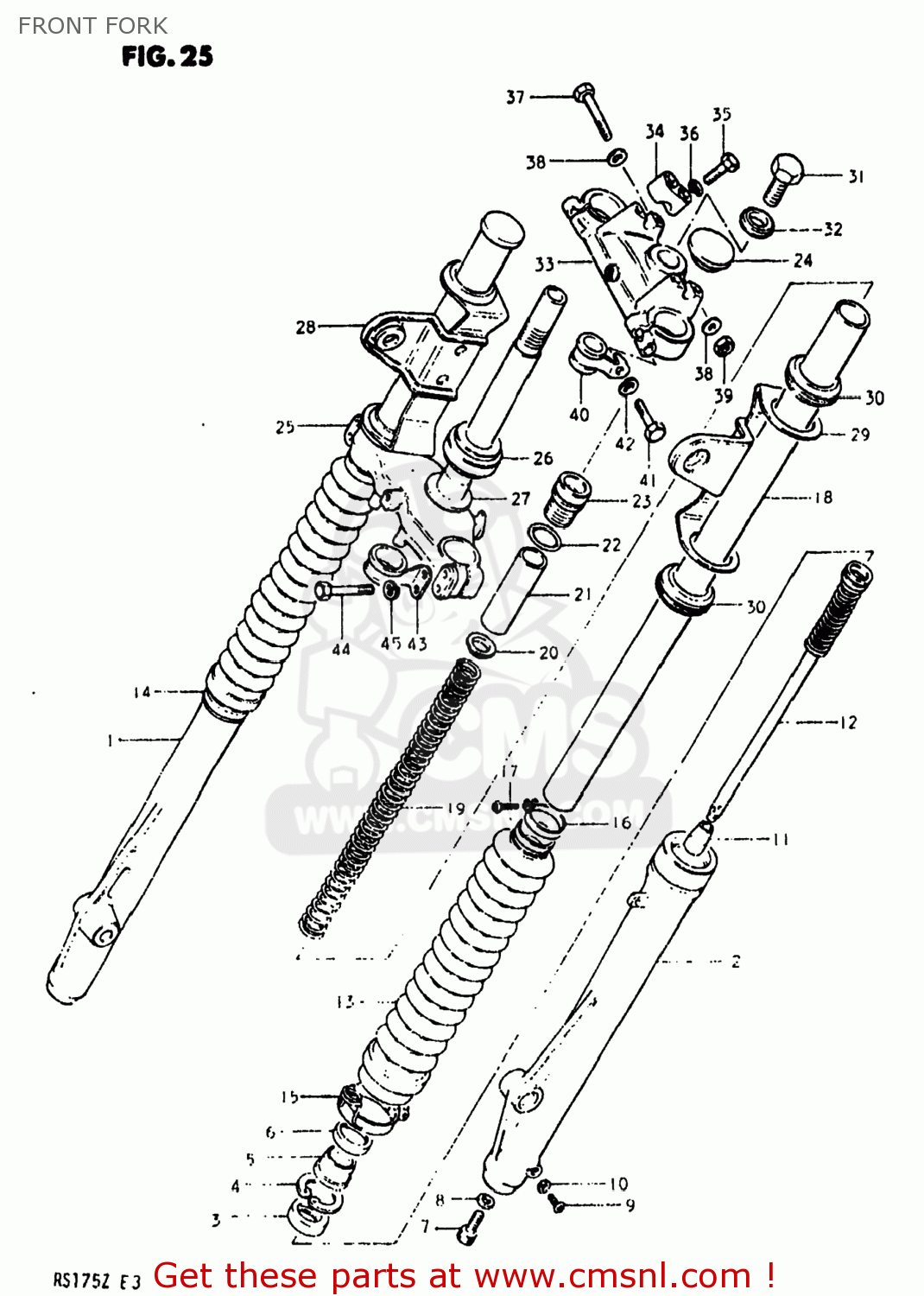

Front fork diagram RS175 1980 (T) USA (E03)
FRONT FORK RS175 1980 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
511004055008C
ref: 0
DAMPER SET
€ 475.00
1
5113037200
ref: 1
51130-37400
TUBE,OUTER,RIGHT
€ 90.50
2
5114037200
ref: 2
51140-37400
TUBE,OUTER,LEFT
€ 86.00
3
5115341211
ref: 3
51153-16730
OIL SEAL,FRONT FORK
€ 28.50
4
5115630400
ref: 4
5115630400
5
5117340500
ref: 5
SEAL,DUST
€ 9.00
6
5114940500
ref: 6
CASE,DUST SEAL
€ 7.50
7
5114716510
ref: 7
BOLT,FORK CYLINDER(10X25)
€ 3.50
8
5114841310
ref: 8
GASKET (NAS)
€ 2.50
9
0211204088
ref: 9
02112-04087
SCREW
€ 1.50
10
5118303010
ref: 10
GASKET,DRAIN,PLUG (NAS)
€ 3.00
11
5119541210
ref: 11
51195-49071
PIECE,OIL LOCK
€ 12.00
12
5114640550
ref: 12
CYLINDER,FRONT FORK
€ 27.50
13
5157141211
ref: 13
51571-38265-38K
BOOT
€ 38.00
14
5157341410
ref: 14
BAND,FRONT FORK COVER
€ 10.00
15
5157337200
ref: 15
BAND,FRONT FORK COVER
€ 0.00
16
5157541410
ref: 16
BAND,BOOT
€ 8.00
17
0211204168
ref: 17
02112-0416A
SCREW
€ 1.00
18
5111037200
ref: 18
TUBE,FORK,INNER
€ 96.00
19
5117140550
ref: 19
SPRING
€ 20.50
20
5117238010
ref: 20
GUIDE,FRONT FORK SPRING C
€ 9.50
21
5117638010
ref: 21
COLLAR,SPRING
€ 0.00
22
5111716310
ref: 22
O RING
€ 4.50
23
5135130520
ref: 23
CAP,FORK INNER TUBE
€ 9.00
24
5118932400
ref: 24
51189-30520
CAP,FRONT FORK
€ 11.50
25
514104055008C
ref: 25
51410-40510-08C
STEM,STEERING
€ 121.50
26
0926530005
ref: 26
09265-30009
BEARING
€ 49.50
27
0821130402
ref: 27
09181-30184
WASHER,THRUST
€ 4.00
28
5153040550291
ref: 28
BRACKET,HEADLAMP,RIGHT
€ 19.00
29
5154040550291
ref: 29
BRACKET,HEADLAMP,LEFT
€ 20.50
30
5155341410
ref: 30
CUSHION,HEADLAMP BRACKET
€ 5.50
31
5135141320
ref: 31
BOLT
€ 8.50
32
5135641310
ref: 32
WASHER
€ 6.00
33
513114050008C
ref: 33
HEAD,STEERING STEM
€ 287.50
34
562114030008C
ref: 34
HOLDER,HANDLEBAR
€ 7.00
35
0110708358
ref: 35
01500-0835B
BOLT
€ 3.50
36
0832121088
ref: 36
08321-01087
LOCK WASHER
€ 2.00
37
0110708508
ref: 37
01500-08507
BOLT 8X50
€ 3.00
38
0832221088
ref: 38
08322-01087
WASHER
€ 2.00
39
0831012088
ref: 39
08310-00087
NUT
€ 2.00
40
5862140500
ref: 40
GUIDE,CABLE
€ 8.00
41
0110710458
ref: 41
01500-1045A
BOLT
€ 2.00
42
0832121108
ref: 42
08321-01107
LOCK WASHER
€ 2.00
43
5862140301
ref: 43
CLIP,CABLE
€ 14.50
44
0110708458
ref: 44
01500-08453
BOLT 8X45
€ 2.50
45
0832121088
ref: 45
08321-01087
LOCK WASHER
€ 2.00
