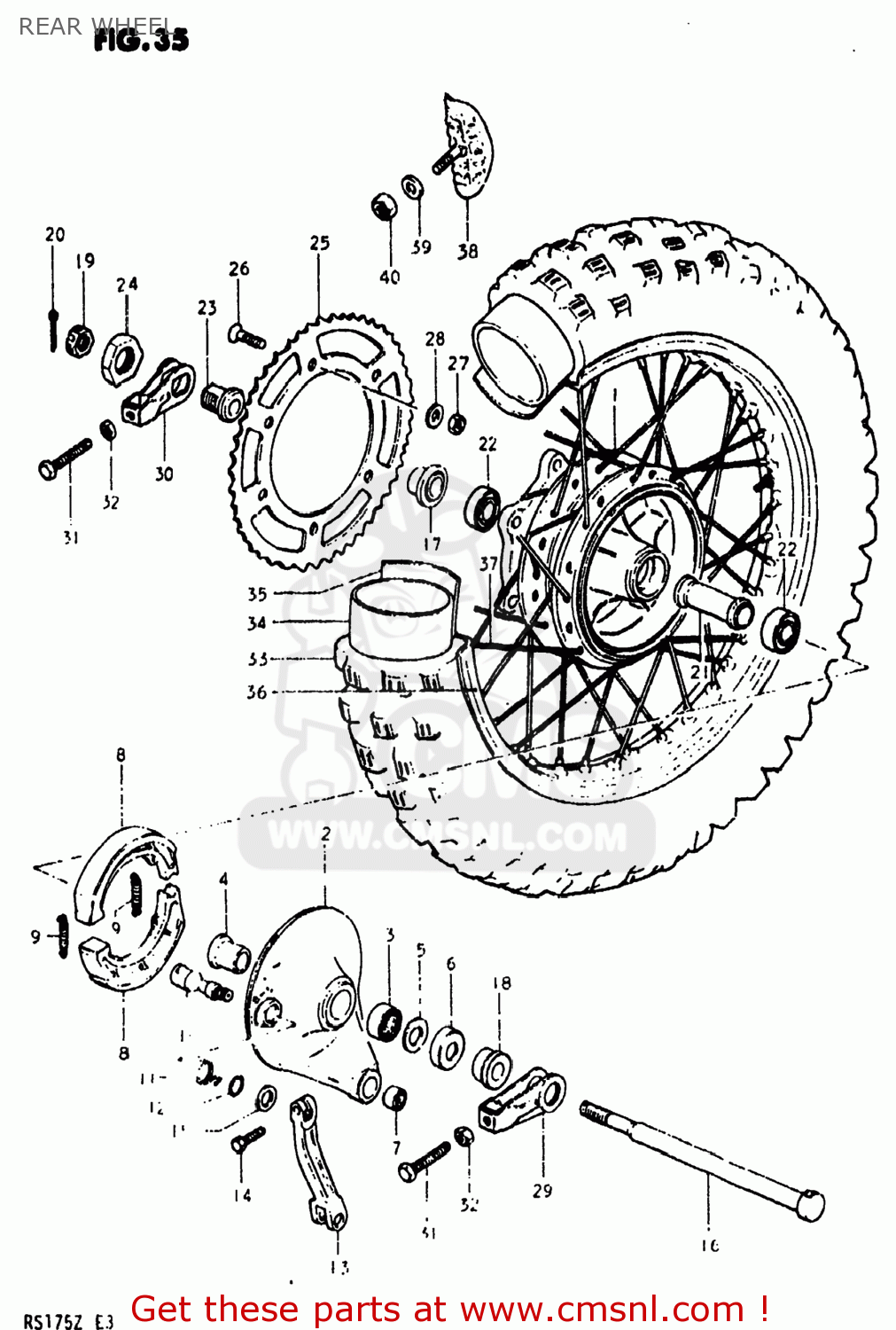

REAR WHEEL

ref

part #

description

quantity

1

6411040202
ref: 1

DRUM,REAR HUB

€ 50.50

2-1

6420041840
ref: 2-1
64200-41841

PANEL SET,REAR HUB

€ 80.50

2-2

6420041841
ref: 2-2

PANEL SET,REAR HUB

€ 80.50

3

0926322025
ref: 3

BEARING(22X29X25)

€ 31.50

4

6421340300
ref: 4

SPACER,REAR HUB PANEL

€ 28.00

5

0916015028
ref: 5
08211-15341

WASHER

€ 2.00

6

6484540300
ref: 6
61262-22A00

COVER, PANEL DUST SEAL

€ 7.50

7-1

6435240400
ref: 7-1
64352-40401

SPHERICAL BEARING,TORQUE

€ 69.50

7-2

6435240401
ref: 7-2

SPHERICAL BRNG,TORQUE LINK

€ 69.50

8

6441040200
ref: 8
64400-13810

SHOE,BRAKE

€ 32.00

9

0944307001
ref: 9
09443-07025

SPRING(L:34)

€ 2.50

10

5444101002
ref: 10

CAM,FR BRAKE

€ 19.50

11

0944830005
ref: 11

SPRING

€ 19.00

12

0928012001
ref: 12

O RING(D:2.5,ID:11.4)

€ 2.50

13

6445140200
ref: 13

LEVER,RR BRAKE CAM

€ 601.00

14

0110706258
ref: 14
01500-06257

BOLT

€ 2.00

15

0916012011
ref: 15

WASHER(12.5X20X1)

€ 1.50

16

6471140210
ref: 16

AXLE,REAR

€ 45.50

17

6475040210
ref: 17

SPACER,RR AXLE,L

€ 7.00

18

0918015049
ref: 18

SPACER (15.2X26X34)

€ 6.00

19

0831431128
ref: 19
08314-3112A

NUT 12MM

€ 2.00

20

0411130308
ref: 20
04111-3030A

COTTER PIN

€ 1.50

21

6473040300
ref: 21
64730-40301

SPACER,REAR HUB BEARING

€ 23.50

22

0812362027
ref: 22

BEARING

€ 14.50

23

6479128001
ref: 23

SPACER,CHAIN ADJUSTER,L

€ 12.00

24

0914018005
ref: 24
09140-18501

NUT

€ 3.00

25

6451140275
ref: 25

SPROCKET,REAR (NT:46)(AL)

€ 85.50

26

0912008004
ref: 26

SCREW(8X33.5)

€ 3.00

27

0831931088
ref: 27
08319-3108A

NUT

€ 2.50

28

0832211088
ref: 28
08322-01087

WASHER

€ 2.00

29

6141036002
ref: 29

ADJUSTER,CHAIN

€ 11.50

30

6142036000
ref: 30

ADJUSTER,CHAIN,L

€ 14.50

31

0910408006
ref: 31
09104-08034

BOLT

€ 3.00

32

0831012088
ref: 32
08310-00087

NUT

€ 2.00

33-1

6510040230
ref: 33-1
65100-14130

TIRE

€ 0.00

33-2

6510014130
ref: 33-2

TIRE

€ 0.00

34

6520041330
ref: 34
65200-42AA0

TUBE ASSEMBLY,WHEEL,INNER

€ 34.00

35

6526133030
ref: 35

PROTECTOR,INNER TUBE

€ 5.50

36-1

6531140200
ref: 36-1

RIM,REAR WHEEL

€ 119.00

36-2

6531140500
ref: 36-2

RIM,REAR WHEEL

€ 81.50

37-1

6532040201
ref: 37-1

SPOKE SET,REAR

€ 54.50

37-2

6532040220
ref: 37-2

SPOKE SET,REAR WHEEL

€ 25.00

38-1

6527030001
ref: 38-1
65270-43D00

STOPPER,BEAD

€ 30.50

38-2

6527046910
ref: 38-2
65270-43D00

STOPPER,BEAD

€ 30.50

39

0832211088
ref: 39
08322-01087

WASHER

€ 2.00

40

0831012088
ref: 40
08310-00087

NUT

€ 2.00
