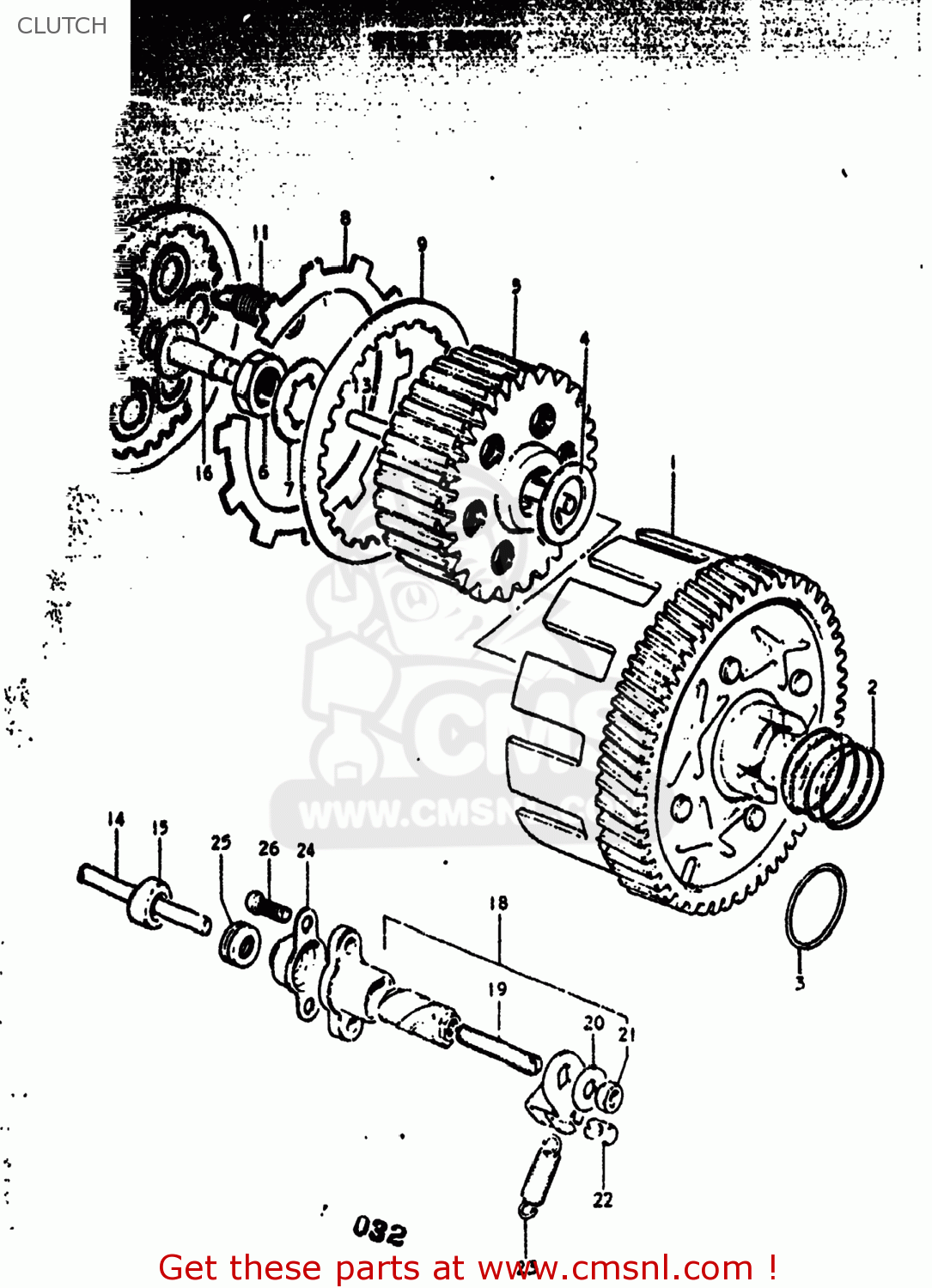

CLUTCH

ref

part #

description

quantity

1-1

2120027100
ref: 1-1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 75.50

1-2

2120027101
ref: 1-2
21200-27102

GEAR ASSEMBLY,PRIMARY DRIVE

€ 61.50

2

0944032001
ref: 2

SPRING

€ 2.00

3

0938030001
ref: 3

SPRING

€ 2.00

4

0821117282
ref: 4

WASHER

€ 3.00

5

2141123000
ref: 5
21411-23010

HUB,CLUTCH SLEEVE

€ 39.00

6

0914016001
ref: 6

NUT

€ 4.50

7

0916717002
ref: 7

WASHER,LOCK

€ 2.00

8

2144112000
ref: 8
21441-42G00

PLATE,CLUTCH DRIVE (MCA)

€ 12.00

9

2145123000
ref: 9

PLATE,CLUTCH DRIVEN (NAS)

€ 6.50

10

2146023000
ref: 10

PLATE,CLUTCH PRESSURE

€ 24.00

11

0944312003
ref: 11

SPRING

€ 3.00

12

0926102001
ref: 12

PIN(2.5X19.8)

€ 1.50

13

2311103001
ref: 13

ROD,CLUTCH PUSH

€ 4.50

14

2311112000
ref: 14

ROD,CLUTCH PUSH

€ 6.50

15

0928505004
ref: 15

SEAL,OIL(5.5X16X8)

€ 12.00

16

2312114000
ref: 16

ROD,CLUTCH RELEASE

€ 13.50

17

0928410002
ref: 17

SEAL,OIL (10X17X5)

€ 3.50

18

2320023000
ref: 18

SCREW ASSY,CLUTCH RELEASE

€ 50.00

19

0913406001
ref: 19
09134-06010

SCREW

€ 3.00

20

0916006019
ref: 20

WASHER(6.5X16X1.2)

€ 1.50

21

0831131068
ref: 21
08310-00067

NUT

€ 2.50

22

2322207000
ref: 22

PIECE,RELEASE ARM END

€ 5.00

23

0944308001
ref: 23

SPRING

€ 3.00

24

2324123000
ref: 24

COVER,CLUTCH RELEASE SCREW

€ 12.00

25

0928105001
ref: 25

SEAL,DUST(5.3X13X5)

€ 2.50

26

0211205168
ref: 26
02112-05167

SCREW

€ 2.50

all assemblies
