GEAR SHIFTING
RV90 1976 (A) USA (E03)

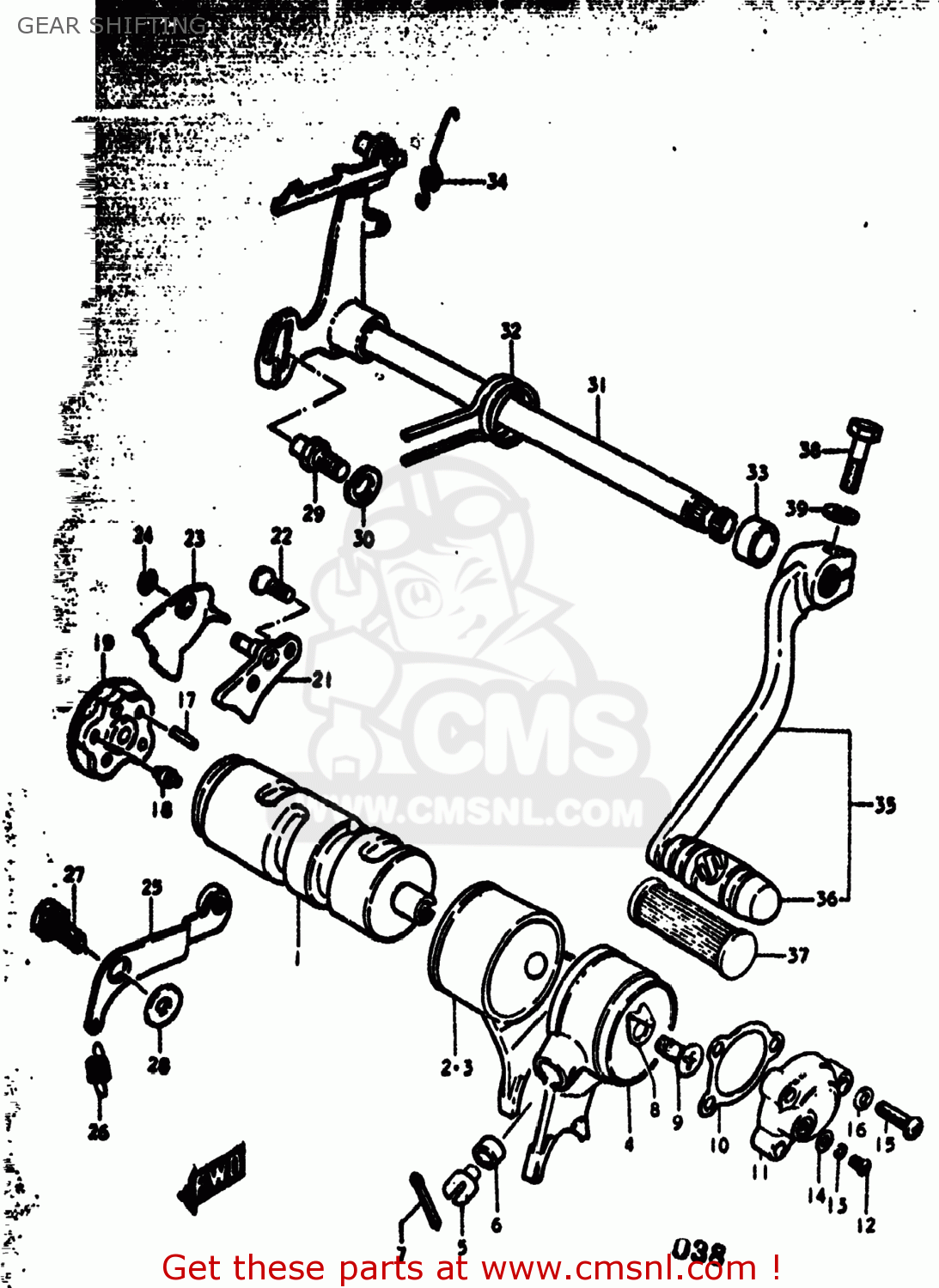

Gear shifting diagram RV90 1976 (A) USA (E03)
GEAR SHIFTING RV90 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2531112102
ref: 1
CAM,GEAR SHIFT
€ 69.50
2
2521112100
ref: 2
FORK,GEAR SHIFT NO.1
€ 0.00
3
2521125101
ref: 3
FORK,GEAR SHIFT NO.1
€ 26.50
4
2522112100
ref: 4
FORK,GEAR SHIFT NO.2
€ 40.00
5
0920910003
ref: 5
PIN
€ 8.50
6
0918006004
ref: 6
09180-06086
SPACER
€ 2.50
7
0411125208
ref: 7
04111-2520A
PIN 25X20
€ 2.00
8
3771105101
ref: 8
CONTACT,GEAR SHIFT SWITCH
€ 4.00
9
0212206128
ref: 9
02122-06127
SCREW
€ 3.00
10
3771201000
ref: 10
GASKET,GEAR SHIFT SWITCH (NAS)
€ 2.00
11
3772105100
ref: 11
37721-05101
SWITCH,NEUTRAL INDICATOR
€ 10.50
12
0211104208
ref: 12
02112-0420A
SCREW
€ 1.00
13
0832121048
ref: 13
08321-0104A
LOCK WASHER
€ 2.00
14
0832221048
ref: 14
08322-01047
WASHER
€ 2.00
15
0211103048
ref: 15
02112-03047
SCREW
€ 2.00
16
0832221038
ref: 16
08322-01037
WASHER
€ 2.00
17
0926104003
ref: 17
PIN(4X20)
€ 2.00
18
0920904012
ref: 18
PIN
€ 2.50
19
2538025030
ref: 19
PLATE,GEAR SHIFT CAM STOPPER
€ 11.50
20
0212206208
ref: 20
02122-0620A
SCREW
€ 2.00
21
2534027100
ref: 21
GUIDE,GEAR SHIFTING CABLE
€ 7.50
22
0212706168
ref: 22
SCREW K,L,M,A,B
€ 0.00
23
2537027100
ref: 23
PAWL,GEAR SHIFTING CAM
€ 5.50
24
0833211058
ref: 24
08332-1105A
E RING
€ 1.50
25
2535012101
ref: 25
STOPPER,GEAR SHIFTING
€ 0.00
26
0944307003
ref: 26
SPRING
€ 1.50
27
0911106003
ref: 27
BOLT(6X16.1)
€ 1.50
28
0916006037
ref: 28
WASHER(6.5X16X3.2)
€ 2.50
29
2567119000
ref: 29
STOPPER,GEAR SHIFT ARM
€ 5.50
30
0832121108
ref: 30
08321-01107
LOCK WASHER
€ 2.00
31
2551027101
ref: 31
25510-27103
SHAFT,GEAR SHIFT
€ 49.00
32
0944426005
ref: 32
SPRING
€ 4.50
33
0928512002
ref: 33
09285-12006
OIL SEAL
€ 7.00
34
0944306008
ref: 34
SPRING
€ 2.00
35
2560005104
ref: 35
LEVER ASSY,GEAR SHIFT
€ 60.00
36
2565216500
ref: 36
RUBBER,GEAR SHIFT PEDAL
€ 4.00
37
2565216500
ref: 37
RUBBER,GEAR SHIFT PEDAL
€ 4.00
38
0111206208
ref: 38
01500-06207
BOLT
€ 2.00
39
0832121068
ref: 39
08321-01067
LOCK WASHER
€ 2.50
