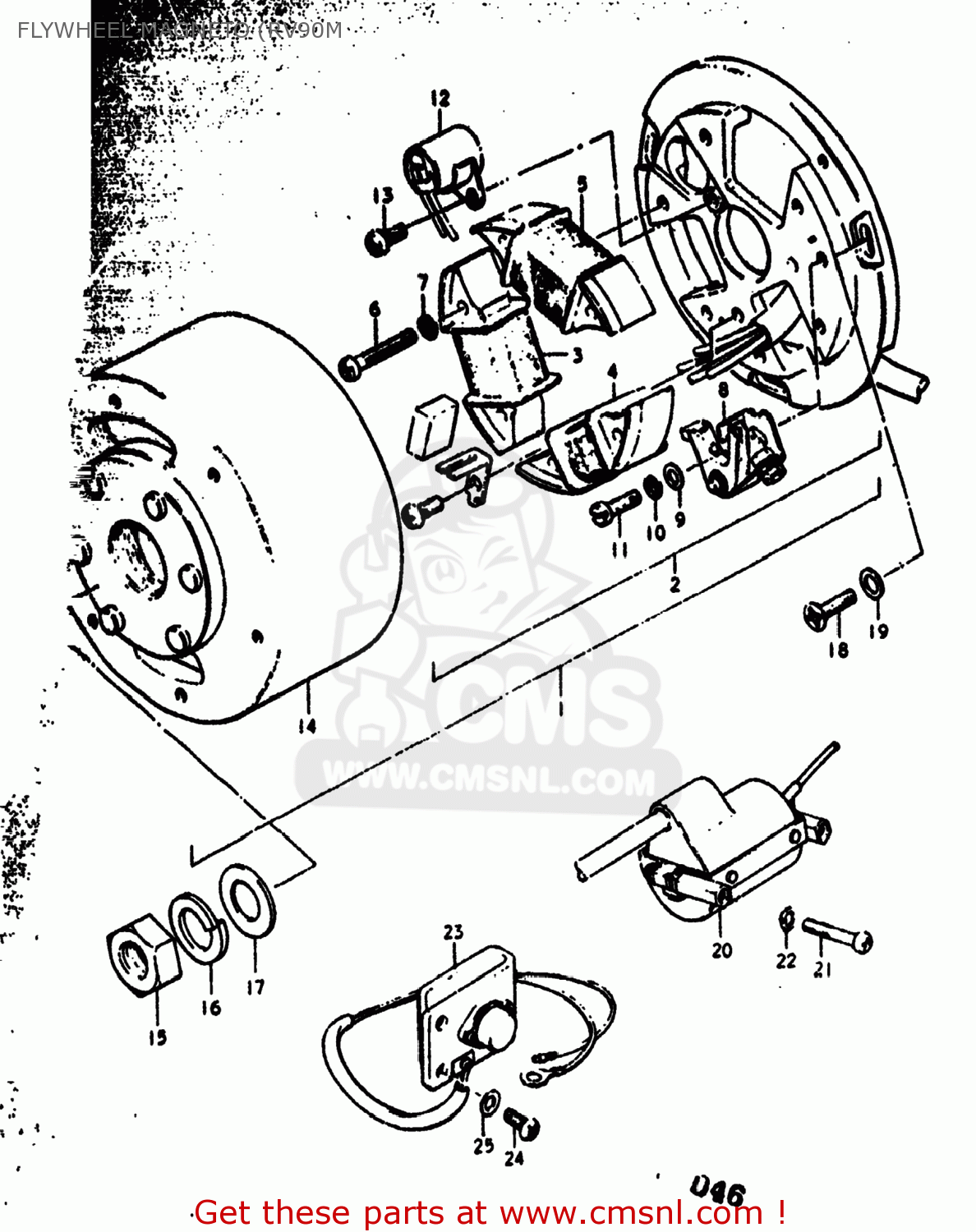

FLYWHEEL MAGNETO (RV90M

ref

part #

description

quantity

1

3210027693
ref: 1

MAGNETO ASSEMBLY

€ 54.50

2

3210127692
ref: 2

STATOR ASSEMBLY

€ 54.50

3

3212028612
ref: 3

COIL,LIGHTING

€ 0.00

4

3213028612
ref: 4

COIL,LIGHTING

€ 16.50

5

3214028012
ref: 5

COIL,PRIMARY

€ 68.50

6

0211104308
ref: 6
09125-04023

SCREW

€ 1.50

7

0832121048
ref: 7
08321-0104A

LOCK WASHER

€ 2.00

8

3224028010
ref: 8
32240-43012

POINT ASSEMBLY,CONTACT

€ 18.50

9

0832221048
ref: 9
08322-01047

WASHER

€ 2.00

10

0832121048
ref: 10
08321-0104A

LOCK WASHER

€ 2.00

11

0231104108
ref: 11
02112-0410A

.SCREW

€ 1.00

12

3234112011
ref: 12

CONDENSER

€ 18.00

13

0211104087
ref: 13
02112-04087

SCREW

€ 1.50

14

3210227693
ref: 14

ROTOR,FLYWHEEL

€ 115.50

15

0914010003
ref: 15
09140-10041

NUT (10MM)

€ 3.50

16

0832121108
ref: 16
08321-01107

LOCK WASHER

€ 2.00

17

0832221108
ref: 17
08322-01107

WASHER

€ 2.50

18

0211206168
ref: 18
02112-06167

SCREW

€ 2.50

19

0832221068
ref: 19
08322-01067

WASHER

€ 2.00

20

3341027110
ref: 20
33410-27111

COIL ASSEMBLY,IGNITION

€ 104.00

21

0211105127
ref: 21
02112-05127

Screw

€ 2.50

22

0832121058
ref: 22
08321-0105A

LOCK WASHER

€ 2.00

23

3250027000
ref: 23

REGULATOR, VOLTAGE M,A,B

€ 0.00

24

0211206128
ref: 24
02112-06127

SCREW 6X12

€ 2.00

25

0832221068
ref: 25
08322-01067

WASHER

€ 2.00

all assemblies
