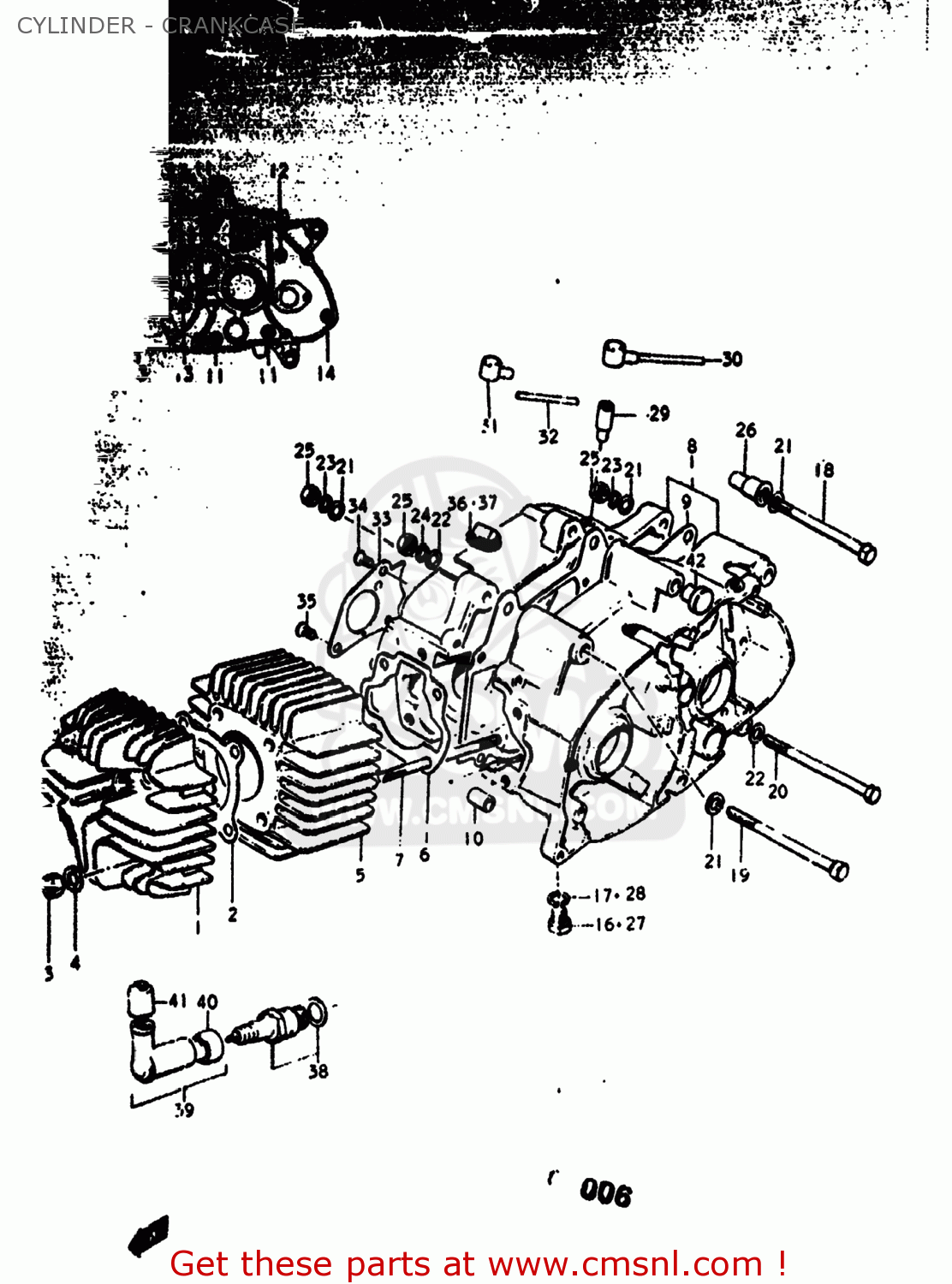

CYLINDER - CRANKCASE - RV90 1976 (A) USA (E03)

ref

part #

description

quantity

1

1111123000
ref: 1

HEAD,CYLINDER

€ 103.00

2

1114123000
ref: 2

GASKET,CYLINDER HEAD (NAS)

€ 5.50

3

0914008005
ref: 3
09140-08017

NUT (8MM)

€ 1.50

4

0832211088
ref: 4
08322-01087

WASHER

€ 2.00

5

1121027100
ref: 5

CYLINDER

€ 301.50

6

1124123000
ref: 6
11241-23020

GASKET,CYLINDER (MCA)

€ 4.00

7

0910808006
ref: 7

BOLT,STUD

€ 5.00

8-1

1130127804
ref: 8-1

CRANKCASE SET

€ 206.00

8-2

1130027830
ref: 8-2
11300-27843

CRANKCASE SET

€ 206.00

9

1148123000
ref: 9
11481-23010

GASKET,CRANKCASE (MCA)

€ 18.50

10

0920613001
ref: 10
04211-13189

PIN

€ 2.50

11

0211206708
ref: 11
02112-06707

SCREW 6X70

€ 3.00

12

0211206508
ref: 12
02112-06507

SCREW

€ 2.50

13

0211206458
ref: 13
02112-06457

SCREW (6X45)

€ 2.00

14

0211206358
ref: 14
02112-06357

SCREW (6X35)

€ 2.50

15

0211206307
ref: 15

SCREW

€ 2.50

16

0924710001
ref: 16

PLUG

€ 3.00

17

0916810002
ref: 17

GASKET(10X14X3.6) (NAS)

€ 2.00

18

0910008023
ref: 18

BOLT 8X100

€ 2.00

19

0910008026
ref: 19

BOLT 8X110

€ 2.00

20

0910008027
ref: 20
09116-08064

BOLT

€ 3.50

21

0832211088
ref: 21
08322-01087

WASHER

€ 2.00

22

0832221088
ref: 22
08322-01087

WASHER

€ 2.00

23

0832121088
ref: 23
08321-01087

LOCK WASHER

€ 2.00

24

0832131088
ref: 24
08321-01087

WASHER,LOCK,8.

€ 2.00

25

0831211088
ref: 25
08310-00087

NUT

€ 2.00

26

0931908008
ref: 26

BUSH

€ 6.50

27

0924714001
ref: 27
09247-14002

PLUG

€ 5.00

28

0916814004
ref: 28

GASKET(14X19.2X2) (NAS)

€ 2.50

29

2482109000
ref: 29
24821-09001

PLUG,TRANSMISSION BREATHER

€ 5.50

30

2482226000
ref: 30
24822-20000

PLUG,BREATHER

€ 19.00

30

2482226000
ref: 30
24822-20000

PLUG,BREATHER

€ 19.00

31

2482220000
ref: 31

GASKET (NAS)

€ 16.00

32

0934403020
ref: 32
09351-35653-600

HOSE

€ 5.50

33

1252123000
ref: 33

PLATE,OIL RESERVOIR

€ 16.00

34

0212206128
ref: 34
02122-06127

SCREW

€ 3.00

35

0211206128
ref: 35
02112-06127

SCREW 6X12

€ 2.00

36

0930907005
ref: 36

GROMMET

€ 4.50

37

0930907007
ref: 37
09309-07005

GROMMET

€ 4.50

38-1

0948200059
ref: 38-1
09482-00084

SPARK PLUG

€ 4.00

38-2

0948200061
ref: 38-2
09482-00302-111

SPARK PLUG

€ 3.50

39

3350069810
ref: 39

CAP,SPARK PLUG

€ 29.50

40-1

3354122000
ref: 40-1

SEAL,SPARK PLUG

€ 5.00

40-2

3354169010
ref: 40-2

SEAL,SPARK PLUG

€ 5.00

41

3354298000
ref: 41
33542-38B00

SEAL,SPARK PLU

€ 4.50

42

0925016005
ref: 42

CAP

€ 2.50
