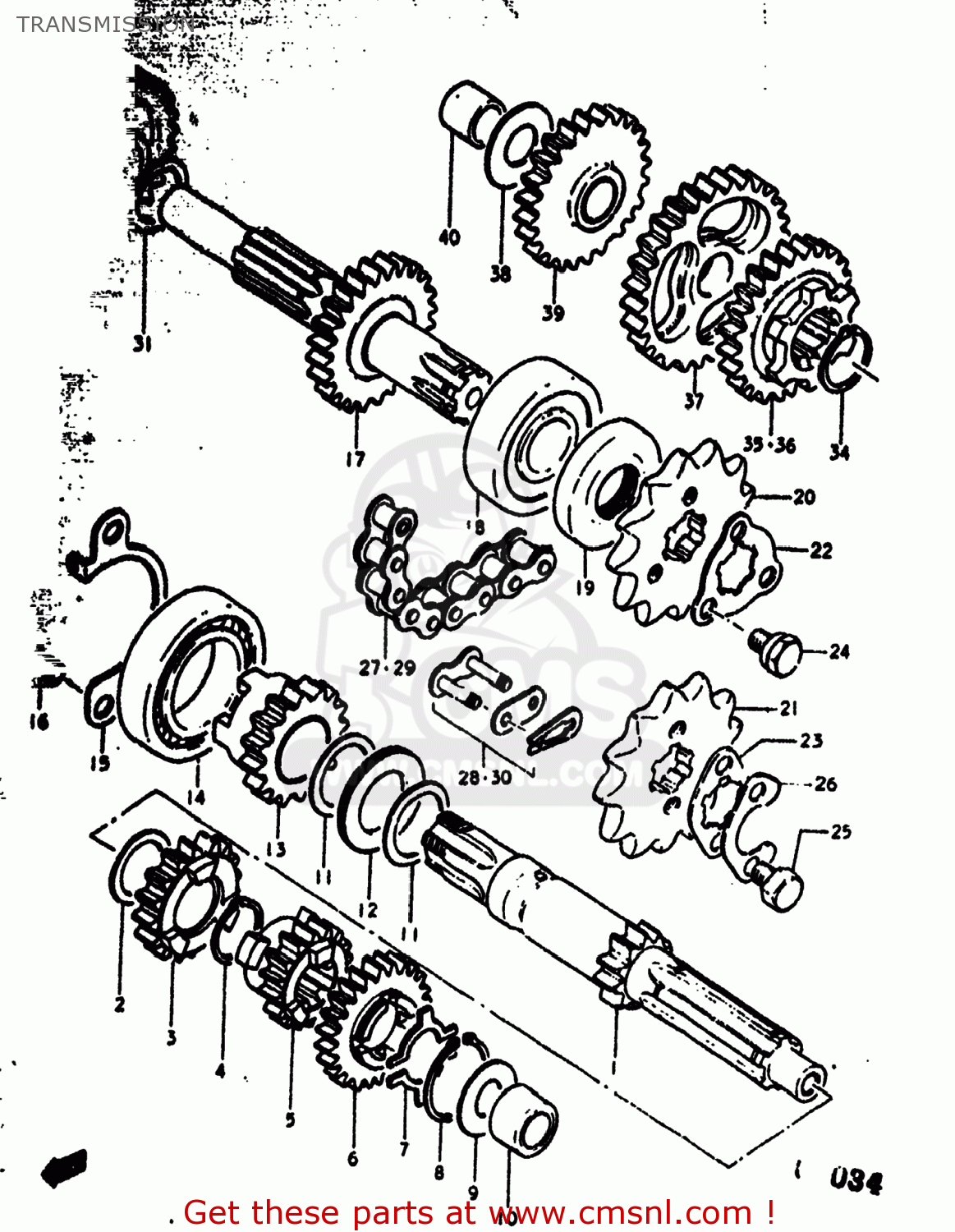

TRANSMISSION

ref

part #

description

quantity

1

2412123000
ref: 1
24121-23001

SHAFT,COUNTER

€ 41.50

2

0821117241
ref: 2

WASHER

€ 2.00

3

2423123000
ref: 3
24231-23002

GEAR,THIRD DRIVE

€ 13.50

4

0938017001
ref: 4

CIRCLIP

€ 2.00

5

2422107000
ref: 5
24221-23001

GEAR,SECOND DRIVE

€ 42.00

6

2424107000
ref: 6
24241-07003

GEAR,FOURTH DRIVE

€ 44.00

7

0939914001
ref: 7

RING

€ 2.50

8

0938026001
ref: 8

RING,SNAP

€ 2.00

9

0821112261
ref: 9

WASHER

€ 2.50

10

0930012008
ref: 10

BUSH(12X19X11)

€ 6.00

11

0916021007
ref: 11

WASHER(21X30X0.8)

€ 3.50

12

0926321006
ref: 12

BEARING(21X32X2.85)

€ 11.50

13-1

2628023000
ref: 13-1
26280-23010

GEAR,KICK STARTER DRIVE

€ 60.50

13-2

2628023001
ref: 13-2
26280-23010

GEAR,KICK STARTER DRIVE

€ 60.50

14

0811360060
ref: 14

BEARING

€ 17.00

15

2474123000
ref: 15
24741-23001

RETAINER,COUNTER SHAFT

€ 1.50

16

0211206108
ref: 16
02112-06107

SCREW

€ 1.50

17

2413123000
ref: 17
24131-23001

SHAFT,DRIVE

€ 66.50

18

0811362040
ref: 18
09262-20069

Bearing

€ 28.00

19

0928320020
ref: 19

SEAL,OIL(20X40X7)

€ 7.50

20-1

2751120000
ref: 20-1
27511-27100

SPROCKET,ENGINE

€ 24.50

20-2

2751120700
ref: 20-2
27511-13700

SPROCKET,ENGINE

€ 33.00

20-3

2751120710
ref: 20-3

SPROCKET,ENGINE(NT:16)

€ 39.00

21-1

2751127100
ref: 21-1

SPROCKET,ENGINE(NT:15)

€ 24.50

21-2

2751136200
ref: 21-2
27511-13700

SPROCKET,ENGINE

€ 33.00

22

2751220000
ref: 22

SPACER,ENGINE SPROCKET

€ 2.50

23

2751236200
ref: 23

PLATE

€ 7.00

24

0911106007
ref: 24

BOLT

€ 2.50

25

0910006074
ref: 25
01500-0610B

BOLT 6X10

€ 2.00

26

2751336200
ref: 26

LOCK WASHER

€ 3.50

27

2760036011
ref: 27
27600-29B20-124

CHAIN ASSEMBLY,DRIVE

€ 128.00

28-1

2762020210
ref: 28-1
27620-40220

JOINT ASSEMBLY,CHAIN

€ 7.00

28-2

2762036011
ref: 28-2
27620-36012

JOINT ASSEMBLY,CHAIN

€ 4.50

29

2760023220
ref: 29

CHAIN ASSEMBLY,DRIVE

€ 38.00

30

2762023220
ref: 30
27620-40220

JOINT ASSEMBLY,CHAIN

€ 7.00

31

0821120281
ref: 31
09181-20167

WASHER,THRUST

€ 2.50

32

2432107000
ref: 32

GEAR,SECOND DRIVEN

€ 46.50

33

2432107003
ref: 33
24321-23001

GEAR,SECOND DRIVEN

€ 46.50

34

0938020003
ref: 34
09380-20007

CIRCLIP

€ 3.00

35

2433107000
ref: 35

GEAR,THIRD DRIVEN

€ 94.50

36

2433107001
ref: 36
24331-12031

GEAR,THIRD DRIVEN

€ 56.00

37

2431007001
ref: 37
24310-12021

GEAR,FIRST DRIVEN

€ 48.50

38

0916015016
ref: 38
08211-15301

WASHER

€ 2.00

39

2626023001
ref: 39
26260-23010

GEAR,KICK STARTER IDLE

€ 48.50

40

0930315003
ref: 40
09303-15004

BUSHING

€ 5.50
