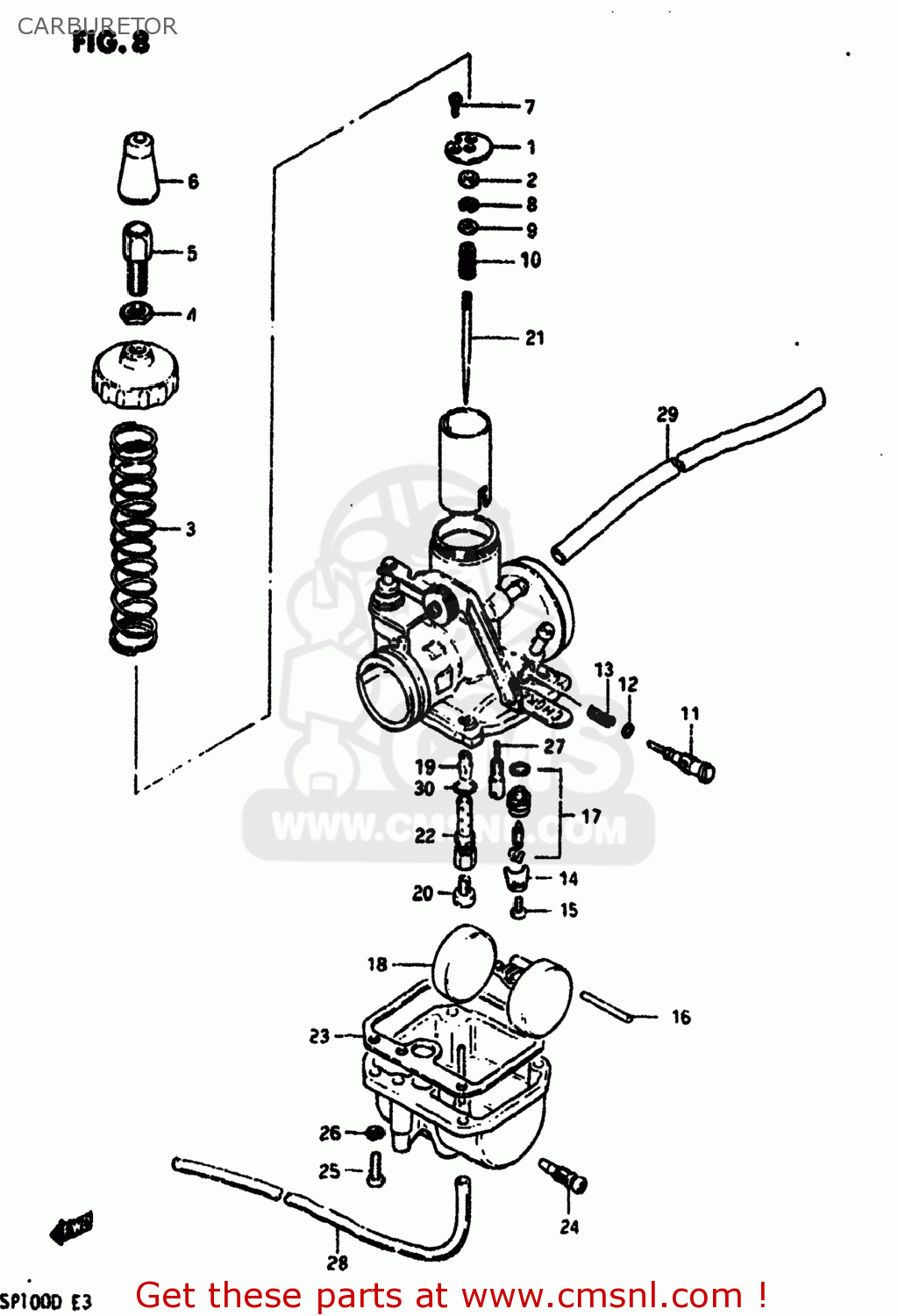

CARBURETOR

ref

part #

description

quantity

0-1

1320005230
ref: 0-1
13200-05250

CARBURETOR ASSEMBLY (VM20)

€ 143.50

0-2

1320005250
ref: 0-2

(CA) CARBURETOR ASSEMBLY (

€ 143.50

1

1337305230
ref: 1

PLATE,NEEDLE VALVE FITTING

€ 7.00

2

1338747010
ref: 2

RING

€ 7.50

3

1357305230
ref: 3

SPRING,THROTTLE VALVE

€ 0.00

4

1366116600
ref: 4

NUT

€ 5.00

5

1357748110
ref: 5

ADJUSTER,CABLE

€ 8.00

6

1368116600
ref: 6

CAP,RUBBER

€ 7.00

7

1360105230
ref: 7

SCREW

€ 0.00

8

1339410010
ref: 8

CLIP

€ 4.50

9

1338247010
ref: 9

WASHER,JET NEEDLE

€ 3.00

10

1338847010
ref: 10

SPRING

€ 7.00

11

1326736600
ref: 11

SCREW,THROTTLE STOP

€ 8.50

12

1329533010
ref: 12

O RING

€ 4.50

13

1326835010
ref: 13

SPRING

€ 3.00

14

1337346710
ref: 14

PLATE,NEEDLE VALVE FITING

€ 4.50

15

0211203068
ref: 15
02112-0306B

SCREW

€ 2.00

16

1325401010
ref: 16

PIN,FLOAT

€ 3.00

17

1337043250
ref: 17
13370-05320

VALVE ASSEMBLY,NEEDLE

€ 59.50

18

1325005230
ref: 18

FLOAT

€ 24.00

19

0949400409
ref: 19

JET,NEEDLE

€ 0.00

20

0949185008
ref: 20

JET,MAIN(85)

€ 8.50

21

1338305230
ref: 21

NEEDLE JET

€ 8.00

22

1338547030
ref: 22

PIPE,BLEEDER

€ 25.00

23

1325105230
ref: 23

GASKET,FLOAT CHAMBER

€ 0.00

24

1324702340
ref: 24

PLUG,DRAIN

€ 5.50

25

0211204168
ref: 25
02112-0416A

SCREW

€ 1.00

26

0832121048
ref: 26
08321-0104A

LOCK WASHER

€ 2.00

27

0949222008
ref: 27

JET,PILOT(22.5)

€ 9.50

28

1368405230
ref: 28
09355-30705-600

HOSE

€ 13.50

29

1368305230
ref: 29
44420-44AR0

HOSE

€ 13.00

30

1324643010
ref: 30

O RING

€ 4.00

31

1355105230
ref: 31

(CA) VALVE,THROTTLE

€ 0.00

all assemblies
