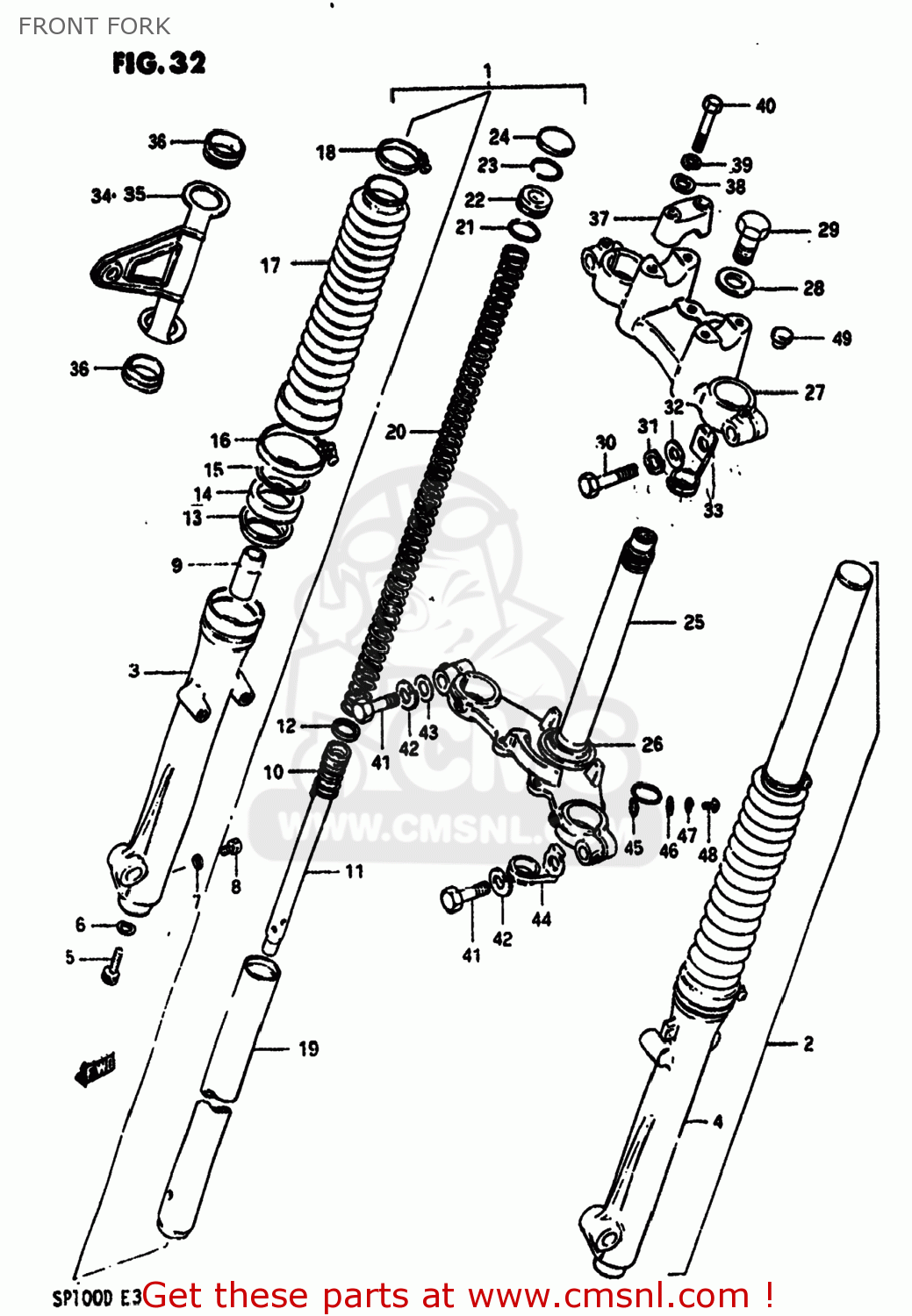

FRONT FORK

ref

part #

description

quantity

1

5110305250
ref: 1
51103-05255

DAMPER ASSEMBLY,RIGHT

€ 155.00

2

5110405250
ref: 2
51104-05255

DAMPER ASSEMBLY,LEFT

€ 155.00

3

5113005250
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 59.50

4

5114005250
ref: 4

TUBE,OUTER,LEFT

€ 69.00

5

5114748130
ref: 5

BOLT(8X27)

€ 3.50

6

5114831030
ref: 6
51148-36011

GASKET (NAS)

€ 4.00

7

5118331030
ref: 7

GASKET,DRAIN,PLUG (NAS)

€ 4.00

8

0110706088
ref: 8
09100-06157

BOLT

€ 2.50

9

5119548000
ref: 9

PIECE,OIL LOCK

€ 8.50

10

5117748730
ref: 10

SPRING,REBOUND

€ 2.50

11

5114605250
ref: 11

CYLINDER,FRONT FORK

€ 15.00

12

5119648730
ref: 12

RING,FRONT FORK PISTON

€ 3.50

13

5116848730
ref: 13

SPACER,SEAL

€ 2.00

14

5115348730
ref: 14

OIL SEAL,FRONT FORK

€ 9.00

15

5115648730
ref: 15

SEAL,OIL STOPPER RING

€ 2.50

16

0940258306
ref: 16

CLAMP

€ 5.00

17

5157105210
ref: 17

BOOT

€ 50.50

18

5157548500
ref: 18

BAND

€ 9.00

19

5111005250
ref: 19

TUBE,FORK,INNER

€ 87.50

20

5117105250
ref: 20

SPRING,FRONT FORK

€ 10.50

21

5118133131
ref: 21

O RING

€ 5.00

22

5117548500
ref: 22

SEAT,SPRING

€ 9.00

23

5116948500
ref: 23

RING,STOPPER

€ 2.00

24

5118948730
ref: 24

CAP,FRONT FORK

€ 6.50

25

514100525008C
ref: 25

STEM,STEERING

€ 70.00

26

5162133001
ref: 26

RACE,STEERING OUTER LWR

€ 10.00

27

513110525008C
ref: 27

HEAD,STEERING STEM

€ 54.50

28

5135622012
ref: 28

WASHER,STEM HEAD(10.5X30X3.2)

€ 4.00

29

5135120010
ref: 29
51351-29400

BOLT,FORK INNER TUBE

€ 25.00

30

5145127431
ref: 30

BOLT

€ 4.50

31

0832121108
ref: 31
08321-01107

LOCK WASHER

€ 2.00

32

0832221108
ref: 32
08322-01107

WASHER

€ 2.50

33

5145505250
ref: 33

GUIDE,CABLE

€ 5.00

34

5153005250291
ref: 34

BRACKET,HEADLAMP,RIGHT

€ 22.50

35

5154005250291
ref: 35

BRACKET,HEADLAMP,LEFT

€ 22.50

36

5155305210
ref: 36

CUSHION,HEADLAMP BRACKET

€ 3.50

37

562114668008C
ref: 37

HOLDER,HANDLEBAR

€ 9.50

38

0832221088
ref: 38
08322-01087

WASHER

€ 2.00

39

0832121088
ref: 39
08321-01087

LOCK WASHER

€ 2.00

40

0120408357
ref: 40

BOLT

€ 3.50

41

0110710358
ref: 41
01500-1035B

BOLT,M10X1.25X

€ 2.50

42

0832121108
ref: 42
08321-01107

LOCK WASHER

€ 2.00

43

0832221108
ref: 43
08322-01107

WASHER

€ 2.50

44

5145205250
ref: 44

GUIDE,CABLE

€ 4.50

45

5145248500
ref: 45

CLIP

€ 6.00

46

0832221068
ref: 46
08322-01067

WASHER

€ 2.00

47

0832121068
ref: 47
08321-01067

LOCK WASHER

€ 2.50

48

0211206128
ref: 48
02112-06127

SCREW 6X12

€ 2.00

49

0925005003
ref: 49

PLUG(OD:12)

€ 2.00
